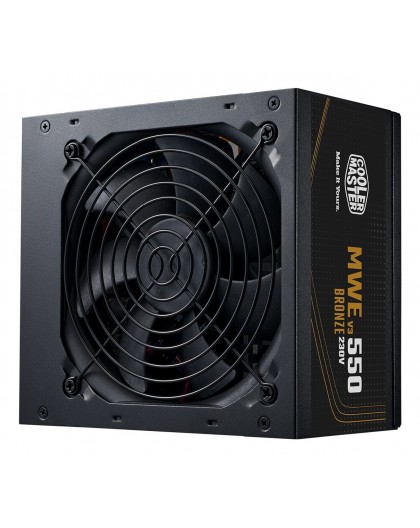

Дома / ///Cooler Master MWE Bronze 550 V3 230V power supply unit 550 W 24-pin ATX ATX Black
Новый Cooler Master MWE Bronze 550 V3 230V power supply unit 550 W 24-pin ATX ATX Black

Cooler Master MWE Bronze 550 V3 230V power supply unit 550 W 24-pin ATX ATX Black

Cooler Master

MPE-5501-ACABW-3BEU

Новый продукт

4 Элементы

Shipping 2025-11-14 days

69,00 € включая налог.

Certificates
Compliance certificatesUKCA
Compliance certificatesFederal Communications Commission (FCC)
Compliance certificatesRCM
Compliance certificatesBIS
Compliance certificatesTÜV mark
Compliance certificatesEAC
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesChina Compulsory Certification (CCC)
Compliance certificatesKC
Design
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 40 °C
Packaging data
Package depth190 mm
Package height110 mm
Package typeBox
Package weight1.85 kg
Package width245 mm
Performance
80 PLUS certification80 PLUS Bronze
ATX version3.1
Bearing technologyHDB
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
ATX Power connector (24-pin)Yes
Cabling typeNon-Modular
EPS power connector (4+4 pin)Yes
Motherboard power cable length50 cm
Motherboard power connector24-pin ATX
Number of SATA power connectors6
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power cable length400 mm
Peripheral (Molex) power cable length550 mm
Peripheral (Molex) power cable length700 mm
Peripheral (Molex) power connectors (4-pin)3
SATA power cable length550
SATA power cable length700
SATA power cable length400 mm
Power
AC input frequency50/60 Hz
AC input voltage200 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)540 W
Combined power (+3.3V)110 W
Combined power (+5V)110 W
Combined power (+5Vsb)15 W
Efficiency88%
Hold time16 ms
Input current5 A
Max output current (-12V)0.3 A
Max output current (+12V)45 A
Max output current (+3.3V)17 A
Max output current (+5Vsb)3 A
Power Factor Correction (PFC) typeActive
Power Good signal delay range100 - 500 ms
Power protection featuresOver power
Power protection featuresUnder voltage
Power protection featuresShort circuit
Power protection featuresOver voltage
Total power550 W
Weight & dimensions
Depth140 mm
Height86 mm
Weight1.45 kg
Width150 mm
