Дома / ///Chieftec ELP-700S power supply unit 700 W 20+4 pin ATX PS/2 Black
Новый Chieftec ELP-700S power supply unit 700 W 20+4 pin ATX PS/2 Black

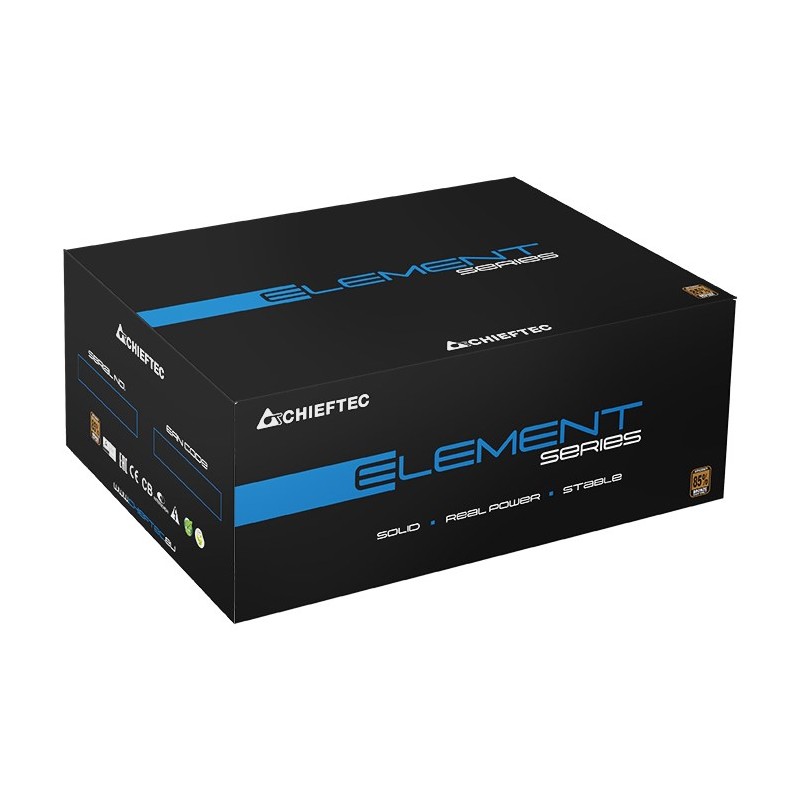

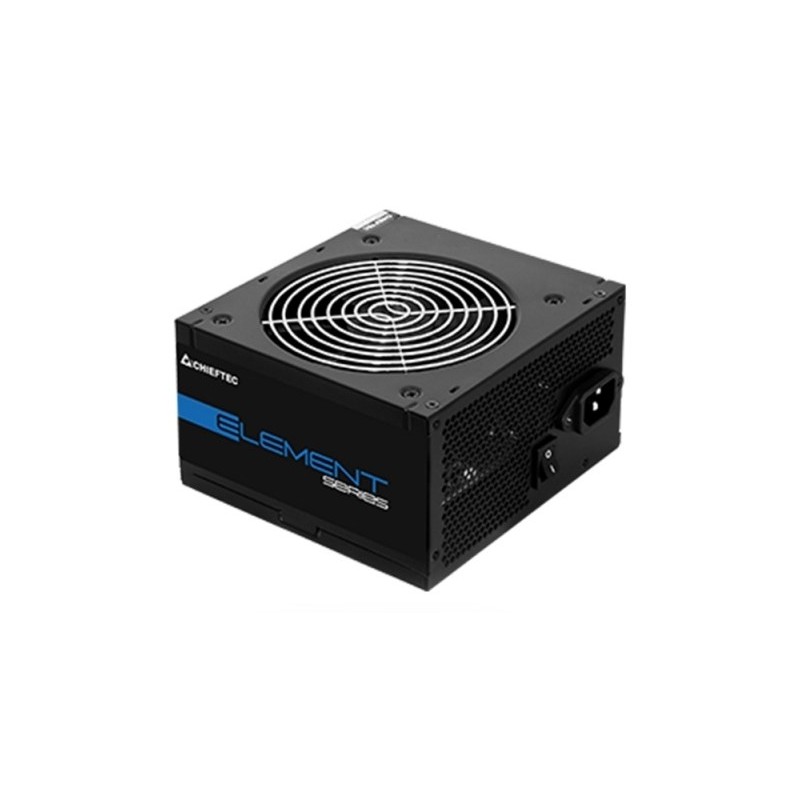

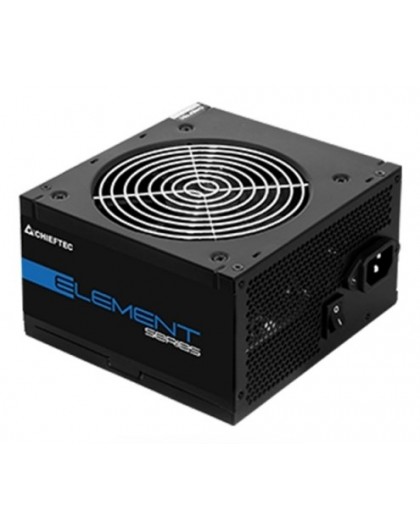

Chieftec ELP-700S power supply unit 700 W 20+4 pin ATX PS/2 Black

Chieftec

ELP-700S

Новый продукт

50 Элементы

Shipping 2025-11-21 days

69,00 € включая налог.

Certificates
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesCB
Compliance certificatesEAC
Design
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Packaging data
Package typeBox
Package weight1.9 kg
Performance
80 PLUS certification80 PLUS Bronze
ATX version2.3
Power supply unit (PSU) form factorPS/2
PurposePC
Supported motherboard form factorsATX
Ports & interfaces
Cabling typeNon-Modular
EPS power connector (4+4 pin)Yes
Floppy disk drive connectorYes
Motherboard power cable length65 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
PCI Express connectorYes
PCI Express power connectors (6+2 pin)1
SATA power cable length500 mm
SATA power cable length150
Power
AC input frequency47 - 63 Hz
AC input voltage200 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)648 W
Combined power (+3.3V)130 W
Combined power (+5V)130 W
Combined power (+5Vsb)12.5 W
Efficiency85%
Input current5 A
Max output current (+12V)54 A
Max output current (+3.3V)22 A
Max output current (+5V)22 A
Max output current (+5Vsb)2.5 A
Power factor0.9
Power Factor Correction (PFC) typeActive
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresUnder voltage
Power protection featuresOver power
Total power700 W
Weight & dimensions
Depth150 mm
Height86 mm
Weight1.65 kg
Width140 mm
