| Design | |
| Antenna | Yes |
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Component for | PC |
| Internal | Yes |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| LAN controller | Intel AX200NGW |
| Maximum data transfer rate | 2400 Mbit/s |
| Networking standards | IEEE 802.11a |
| Networking standards | IEEE 802.11b |
| Networking standards | IEEE 802.11ax |
| Networking standards | IEEE 802.11g |
| Networking standards | IEEE 802.11n |
| Networking standards | IEEE 802.11ac |
| Security algorithms | WPA3 |
| Spread spectrum method | OFDMA |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | 802.11b |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 2402 Mbit/s |
| WLAN data transfer rates supported | 574 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |

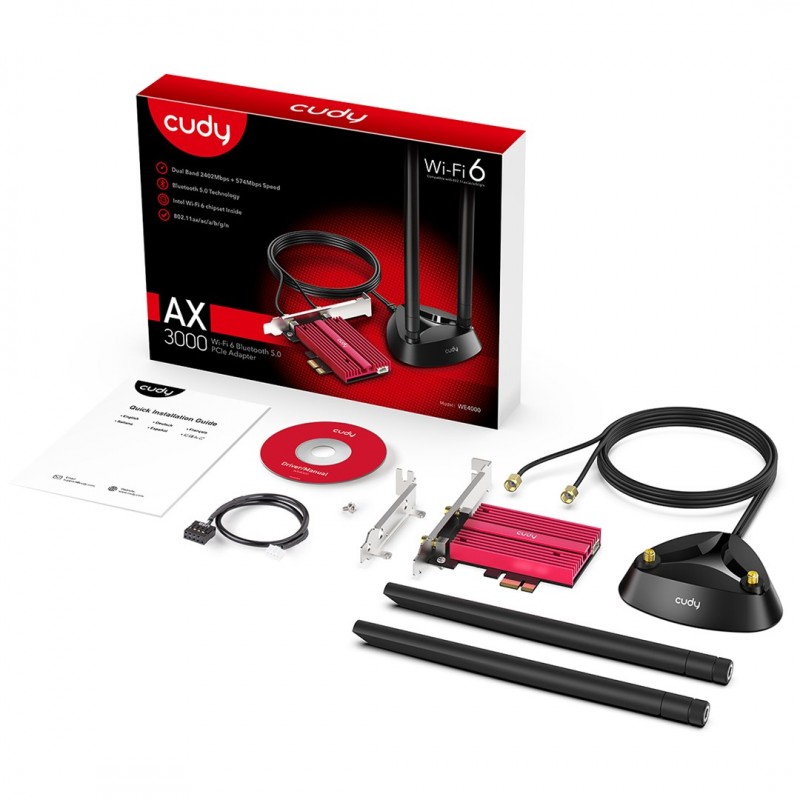

| Packaging content | |
| Bluetooth header cable | Yes |
| Cables included | Coaxial |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| PCI Card form factor | Full-height (low-profile) |
| Safety warning | |
| Warnings | Please observe local regulations regarding the disposal of electronic waste. |
| Warnings | Avoid contact with liquids. If spilled, the product may be damaged. |
| Warnings | The product contains electronic components and should not be disposed of in the regular rubbish bin. |
| System requirements | |
| Windows operating systems supported | Windows 10 |
| Weight & dimensions | |
| Depth | 46 mm |
| Height | 1.6 mm |
| Width | 72 mm |
