New LANCOM LW-500 (WW) 867 Mbit/s White Power over Ethernet (PoE)

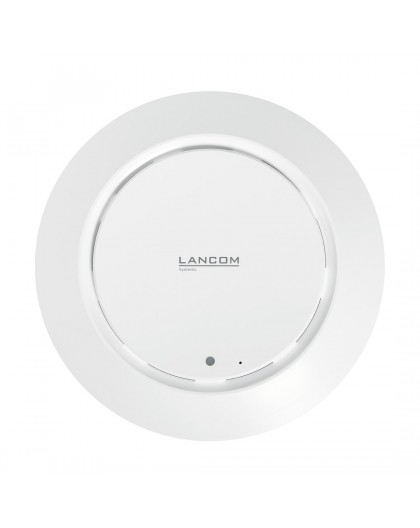

LANCOM LW-500 (WW) 867 Mbit/s White Power over Ethernet (PoE)

No name

61694

New product

31 Items

Shipping 2025-11-24 days

229,00 € tax incl.

Antenna
Antenna gain level (max)4 dBi
Antenna typeInternal
Antennas quantity4
Certificates
CertificationCE
Design
Housing materialSynthetics
LED indicatorsYes
PlacementCeiling, Wall
Product colourWhite
Features
2.4 GHzYes
5 GHzYes
6 GHzNo
Band steeringYes
Ethernet LAN data rates1000
Ethernet LAN data rates100
Ethernet LAN data rates10
Frequency band2.4 - 2.4835, 5.15 - 5.7 GHz
Maximal-Ratio Combining (MRC)Yes
Maximum data transfer rate867 Mbit/s
MIMOYes
MIMO typeMulti User MIMO
Modulation256-QAM
Networking standardsIEEE 802.11d
Networking standardsIEEE 802.11h
Networking standardsIEEE 802.11ac
Networking standardsIEEE 802.11a
Networking standardsIEEE 802.11g
Networking standardsIEEE 802.11n
Networking standardsIEEE 802.1x
Networking standardsIEEE 802.11i
Networking standardsIEEE 802.11b
Number of users512 user(s)
Number of VLAN IDs4096
Receiver sensitivityWLAN-1, 2.4 GHz IEEE 802.11b: -92 dBm @ 1 MBit/s, -86 dBm @ 11 MBit/s, IEEE 802.11g: -86 dBm @ 6 MBit/s, -67 dBm @ 54 MBit/s, IEEE 802.11n:-82 dBm @ MCS0/20 MHz, -66 dBm @ MCS7/20 MHz, -79 dBm @ MCS0/40 MHz, -63 dBm @ MCS7/40 MHz, -57 dBm @ MCS9/40 MHz W
Short Guard Interval (GI)Y
VLAN supportYes
Logistics data
Country of originChina
Customs product code (TARIC)85176200
Harmonized System (HS) code85176990
Management features
Web-based managementYes
Operational conditions
Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 40 °C
Packaging content
AC adapter includedYes
Cables includedLAN (RJ-45)
Quantity per pack1 pc(s)
Quick start guideYes
Packaging data
Package depth290 mm
Package height70 mm
Package weight990 g
Package width220 mm

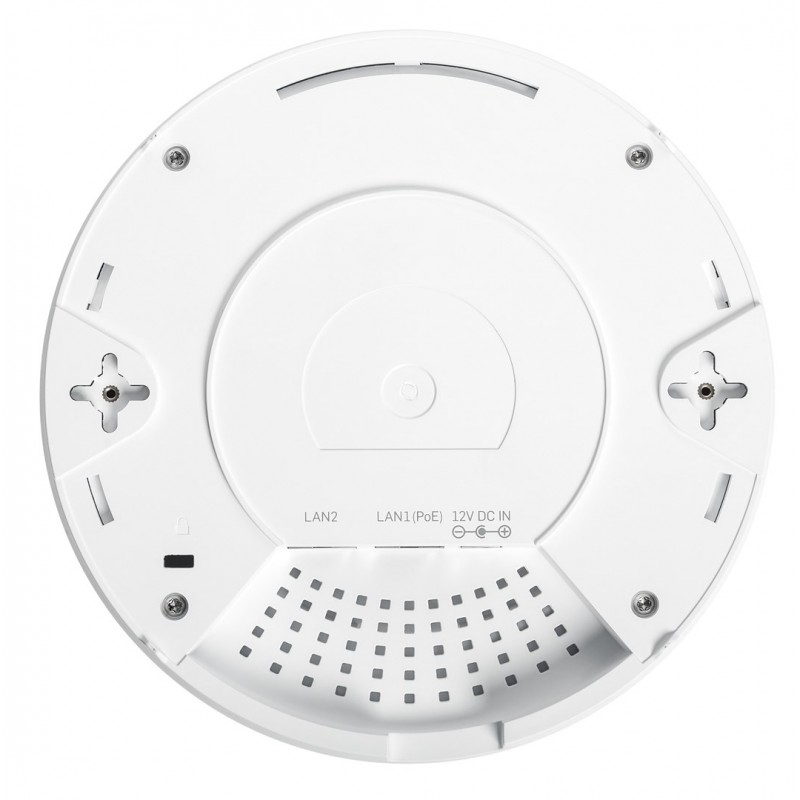

Ports & interfaces
DC-in jackYes
Ethernet LAN (RJ-45) ports2
Power
AC input voltage12 V
Power over Ethernet (PoE)Yes
Security
Number of SSID supported32
Security algorithmsWPA2
Security algorithmsEAP-TTLS
Security algorithmsWPA
Security algorithmsAES
Security algorithmsWEP
Security algorithmsMSCHAPv2
Security algorithmsEAP-TLS
Security algorithmsEAP-FAST
Security algorithmsPEAP
Weight & dimensions
Depth276 mm
Height40 mm
Width276 mm
