New TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

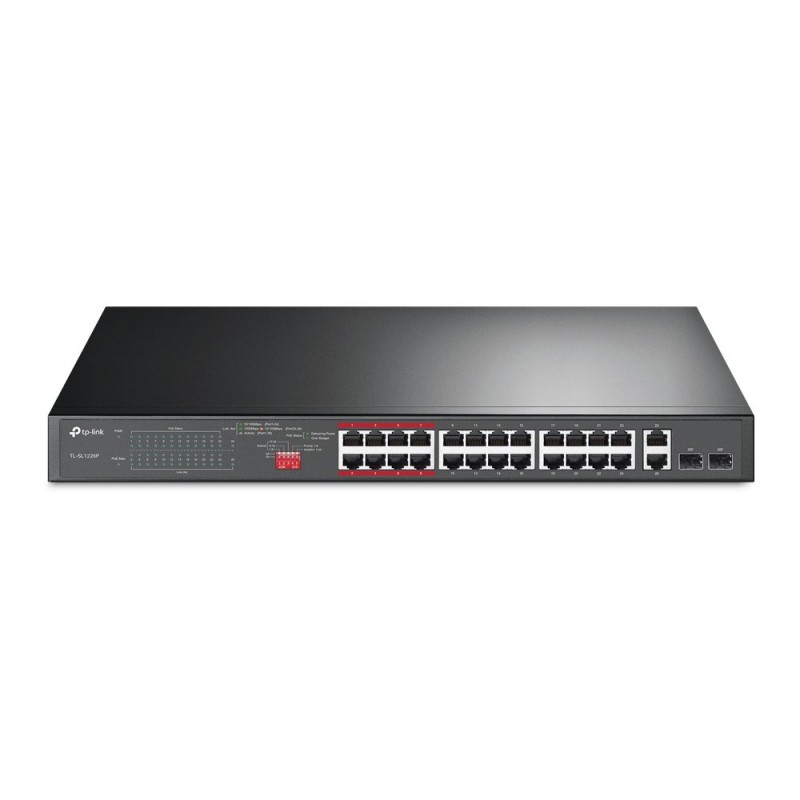

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

TP-LINK

TL-SL1226P

New product

This product is no longer in stock

169,00 € tax incl.

Certificates
CertificationCE, FCC, RoHS
Data transmission
Forwarding rate6.54 Mpps
Jumbo frames10000
Jumbo frames supportYes
MAC address table8000 entries
Packet buffer memory4.1 MB
Store-and-forwardYes
Switching capacity8.8 Gbit/s
Design
Form factor1U
LED indicatorsYes
Number of fans2 fan(s)
Product colourGrey
Rack mountingYes
Logistics data
Harmonized System (HS) code85176990
Management features
Switch typeUnmanaged
Traffic classificationYes
Network
10G supportNo
Auto MDI/MDI-XYes
Auto-negotiationYes
Copper ethernet cabling technology10BASE-T
Copper ethernet cabling technology100BASE-TX
Copper ethernet cabling technology1000BASE-T
Networking standardsIEEE 802.3at
Networking standardsIEEE 802.3af
Networking standardsIEEE 802.3x
Operational conditions
Heat dissipation1002.54 BTU/h
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C
Packaging content
Quick start guideYes
Rack mount kitYes
Packaging data
Package depth528 mm
Package height80 mm
Package weight3.02 kg
Package width250 mm
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity26
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2
Fast Ethernet (copper) ports quantity24
Gigabit Ethernet (copper) ports quantity2
Power
AC input voltage100 - 240 V
Power consumption (max)281 W
Power sourceAC
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget250 W
Safety warning
WarningsEnsure the unit is adequately ventilated during operation.
WarningsThe product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
WarningsDo not open the case or try to repair it yourself.
Weight & dimensions
Depth180 mm
Height44 mm
Width440 mm
