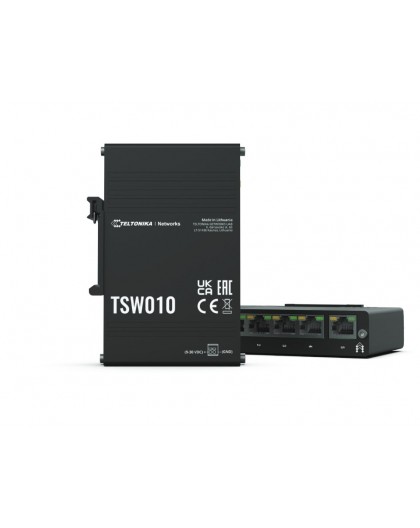

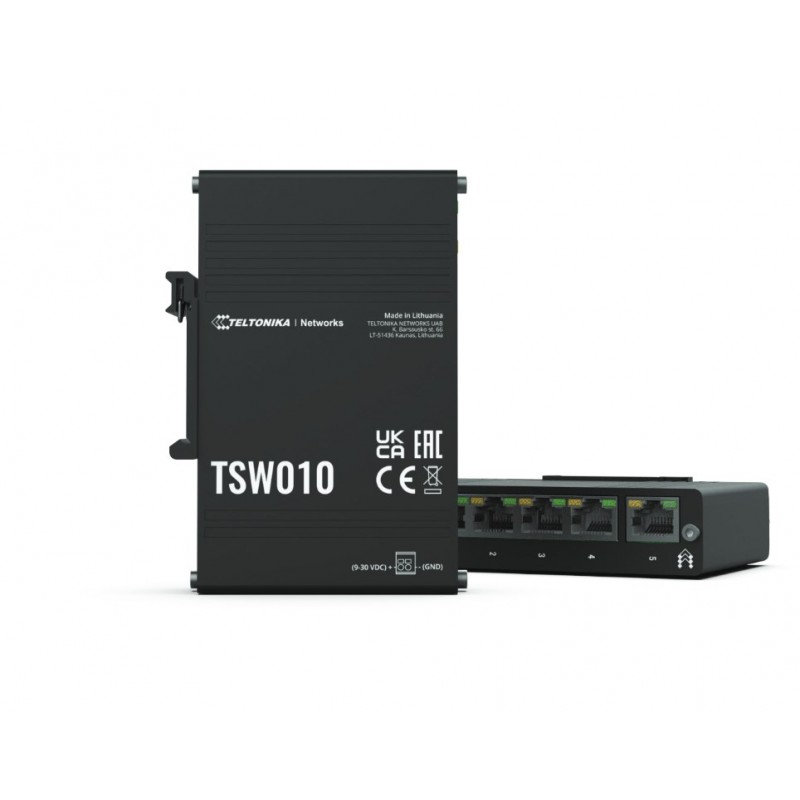

Home / ///Teltonika TSW010 DIN Rain Switch 5 x Fast Ethernet (10/100) Power over Ethernet (PoE) Black
New Teltonika TSW010 DIN Rain Switch 5 x Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Teltonika TSW010 DIN Rain Switch 5 x Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Teltonika

TSW010000000

New product

15 Items

Shipping 2025-11-24 days

29,00 € tax incl.

Certificates
CertificationCE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM
Data transmission
Jumbo frames2048
Jumbo frames supportYes
MAC address table2000 entries
Packet buffer memory0.128 MB
Switching capacity1 Gbit/s
Design
DIN rail mountingYes
Housing materialAluminium
International Protection (IP) codeIP30
LED indicatorsYes
Product colourBlack
Network
10G supportNo
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100 Mbit/s
Networking standardsIEEE 802.3
Networking standardsIEEE 802.3u
Networking standardsIEEE 802.3az
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-40 - 75 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Power connectorDC-in jack
Power
Input voltage9 - 30 V
Power consumption (max)0.9 W
Power consumption (typical)0.3 W
Power sourceDC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity1
Power over Ethernet (PoE) type supportedPassive PoE
Weight & dimensions
Depth80.5 mm
Height27.4 mm
Weight146.5 g
Width113.1 mm
