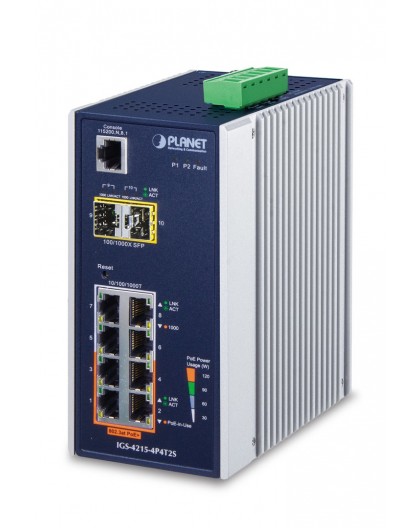

PLANET IGS-4215-4P4T2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, White
IGS-4215-4P4T2S
New product
7 Items
Shipping 2025-11-20 days
389,00 € tax incl.
| Certificates | |
| Certification | FCC 15 A, CE |
| Data transmission | |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Number of trunks | 4 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | Yes |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.8 Mpps |
| Design | |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Activity |
| LED indicators | PoE |
| LED indicators | System |
| LED indicators | Power |
| LED indicators | Link |
| Product colour | Blue |
| Product colour | White |
| Rack mounting | No |
| Reset button | Yes |
| Safety | IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6 |
| Stackable | No |
| Wall mountable | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| ARP inspection | Yes |
| MIB support | RFC 1215, RFC 1493, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3635 |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L4 |
| Switch type | Managed |
| System event log | Yes |
| Traffic classification | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 1000BASE-LX |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 100BASE-FX |
| Copper ethernet cabling technology | 1000BASE-SX |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.1x |
| Number of VLANs | 256 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Stacked VLAN |
| Virtual LAN features | Protocol-based VLAN |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 523.8 BTU/h |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE‑SX |
| Fiber ethernet cabling technology | 1000BASE‑BX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Other features | |
| Terminal block port | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power | |
| DC input voltage | 48 - 56 V |
| Input current | 3.5 A |
| Power consumption (max) | 152.96 W |
| Power consumption (typical) | 5.04 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) voltage range | 48 - 56 V |
| Total Power over Ethernet (PoE) budget | 144 W |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication | Port-based authentication |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSH |
| Security algorithms | 802.1x RADIUS |
| Security algorithms | SNMP |
| Security algorithms | 128-bit SSL |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Weight & dimensions | |
| Depth | 107.3 mm |
| Height | 152 mm |
| Weight | 1 kg |
| Width | 76.8 mm |
