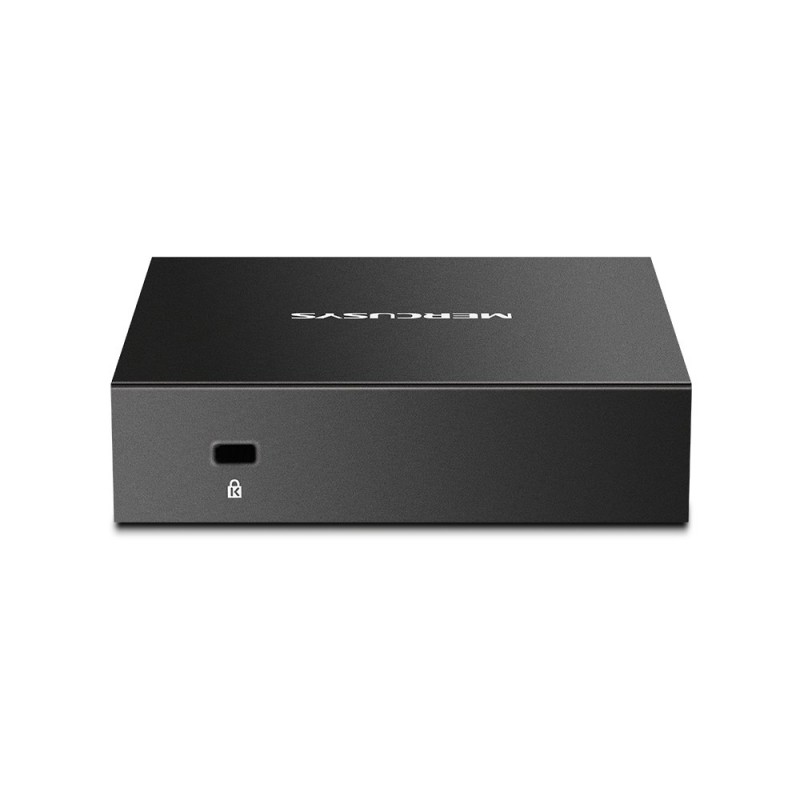

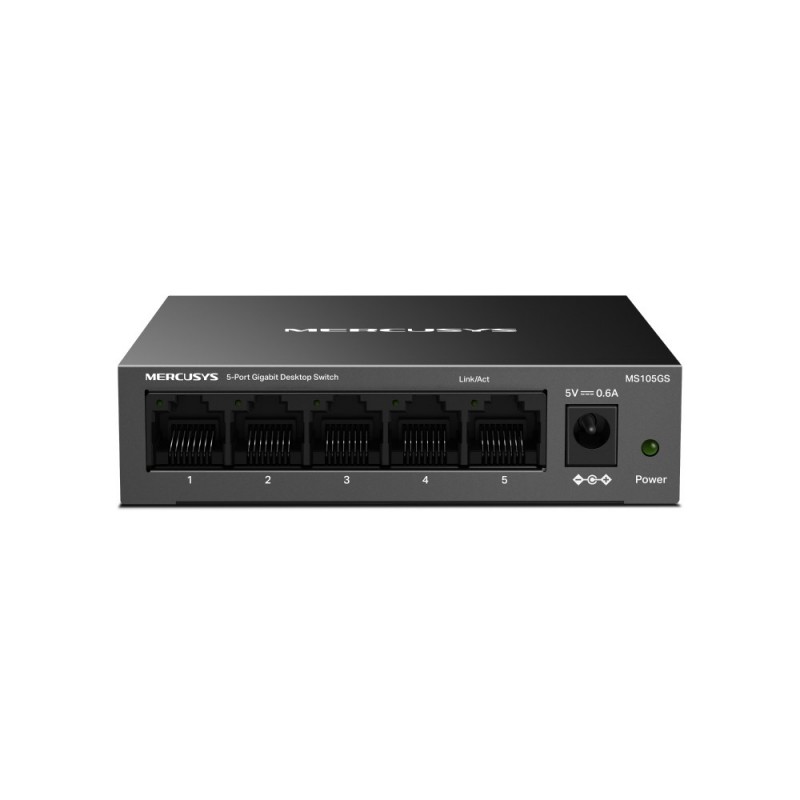

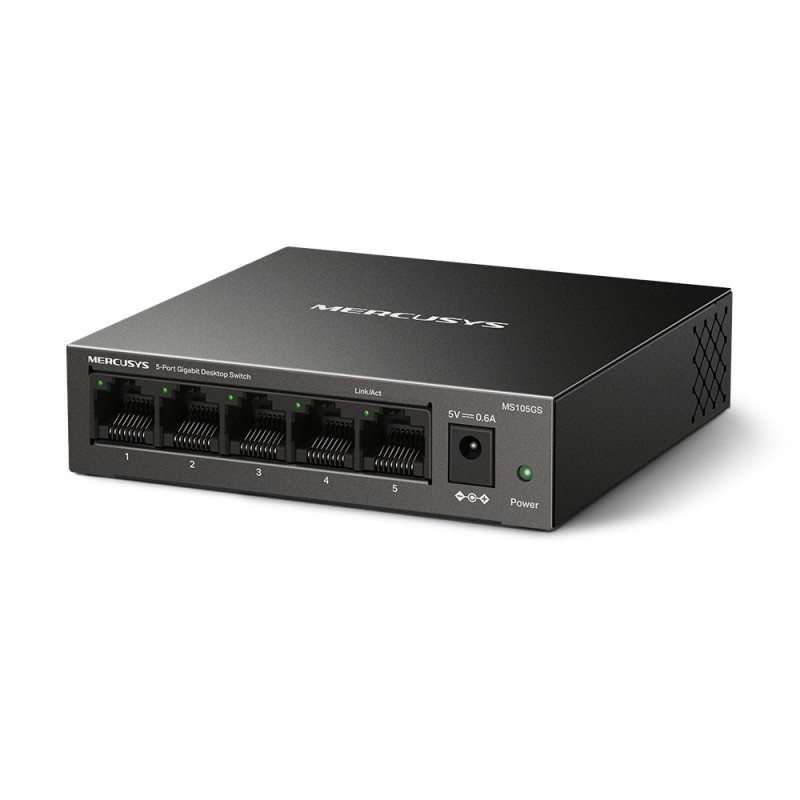

Mercusys MS105GS - Desktop switch, 5 Gigabit ports, black

Reference: MS105GS

Condition: New product

19 Item Items

Shipping 2025-11-14 days

19,00 € tax incl.

Certificates
Certification	CE, RoHS
Data transmission
Jumbo frames	9000
Jumbo frames support	Yes
MAC address table	2000 entries
Packet buffer memory	0.125 MB
Store-and-forward	Yes
Switching capacity	10 Gbit/s
Design
Housing material	Metal
LED indicators	Yes
Product colour	Black
Rack mounting	No
Stackable	No
Wall mountable	Yes
Management features
Switch type	Unmanaged
Network
10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Flow control support	Yes
Full duplex	Yes
Half duplex	Yes
MAC address auto-aging supported	Yes
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.3
Networking standards	IEEE 802.3ab
Networking standards	IEEE 802.3u
Networking standards	IEEE 802.3x
Networking standards	IEEE 802.3p
Operational conditions
Heat dissipation	12.331 BTU/h
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C
Optical fiber
Transmission distance (max)	0.1 km
Packaging content
Cables included	AC
Quick start guide	Yes
Performance
Fanless	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Power
AC input frequency	50/60 Hz
AC input voltage	220 V
DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	3.614 W
Power source	DC
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Depth	98 mm
Height	25.1 mm
Width	99.8 mm
