Home / ///D-Link 10-Port Multi-Gigabit PoE+ Smart Managed Switch
New D-Link 10-Port Multi-Gigabit PoE+ Smart Managed Switch

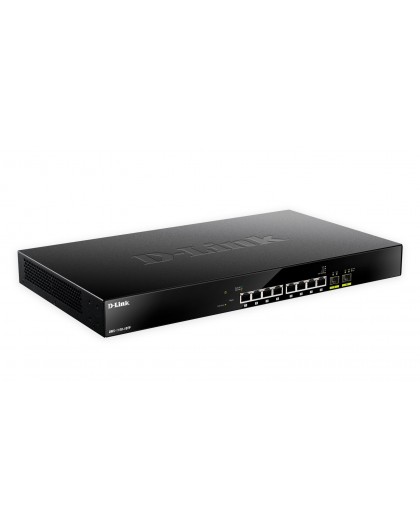

D-Link 10-Port Multi-Gigabit PoE+ Smart Managed Switch

D-Link

2109933

New product

6 Items

Shipping 2025-11-24 days

769,00 € tax incl.

Certificates
CertificationCE, FCC, C-Tick, VCCI, BSMI, CCC
Data transmission
Jumbo frames9216
Jumbo frames supportYes
MAC address table16000 entries
Store-and-forwardYes
Switching capacity80 Gbit/s
Throughput59.52 Mpps
Design
Form factor1U
LED indicatorsFan fail
LED indicatorsActivity
LED indicatorsLink
LED indicatorsPower
LED indicatorsPoE
LED indicatorsSpeed
Number of fans1 fan(s)
Product colourBlack
Rack mountingYes
SafetycUL, CB, CE, CCC, BSMI
Logistics data
Harmonized System (HS) code85176990
Management features
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged
System event logYes
Multicast features
MLD entries192
Multicast supportYes
Network
10G supportYes
Auto MDI/MDI-XYes
Cable types supportedCat5e
Copper ethernet cabling technology100BASE-TX
Copper ethernet cabling technology1000BASE-T
Ethernet Ring Protection Switching (ERPS)Yes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
Networking standardsIEEE 802.3at
Networking standardsIEEE 802.3ad
Networking standardsIEEE 802.1D
Networking standardsIEEE 802.3z
Networking standardsIEEE 802.3ae
Networking standardsIEEE 802.1Q
Networking standardsIEEE 802.3x
Networking standardsIEEE 802.3bz
Networking standardsIEEE 802.1w
Networking standardsIEEE 802.3ab
Networking standardsIEEE 802.3u
Networking standardsIEEE 802.3af
Networking standardsIEEE 802.3az
Number of VLANs4094
Port mirroringYes
Spanning tree protocolYes
Virtual LAN featuresVoice VLAN
Virtual LAN featuresPort-based VLAN
Virtual LAN featuresTagged VLAN
VLAN supportYes
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-5 - 50 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-40 - 70 °C
Optical fiber
Fiber ethernet cabling technology1000BASE-X
Performance
Maximum cable length100 m
Mean time between failures (MTBF)676329 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity2
Power
AC input voltage100 - 240 V
Power consumption (max)293.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget240 W
Security
DHCP featuresDHCP client
DoS attack preventionYes
IGMP entries192
IGMP snoopingYes
Queue scheduling algorithmsStrict Priority Queue (SPQ)
Queue scheduling algorithmsDeficit weighted round robin (DWRR)
Queue scheduling algorithmsWeighted Round Robin (WRR)
Security algorithmsSNMP
Security algorithmsSSL/TLS
Weight & dimensions
Depth250 mm
Height44 mm
Weight3.43 kg
Width440 mm
