| Antenna | |
| Antenna gain level (max) | 12 dBi |
| Antenna type | Internal |
| Design | |
| International Protection (IP) code | IP65 |
| Placement | Pole, Wall |
| Product colour | White |
| Features | |
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | No |
| Channel bandwidth | 80 MHz |
| Ethernet LAN data rates | 100 |
| Ethernet LAN data rates | 10 |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Networking standards | IEEE 802.11a |
| Networking standards | IEEE 802.11ac |
| Networking standards | IEEE 802.11n |
| Receiver sensitivity | 11a 6Mbps -92dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -64dBm±1.5dBm |
| Virtual LAN features | SSID-based VLAN assignment |
| VLAN support | Yes |
| Wireless isolation | Yes |
| Management features | |
| Firmware upgradeable | Yes |
| Syslog | Yes |
| Mobile network | |
| SIM card slot | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Ports & interfaces | |

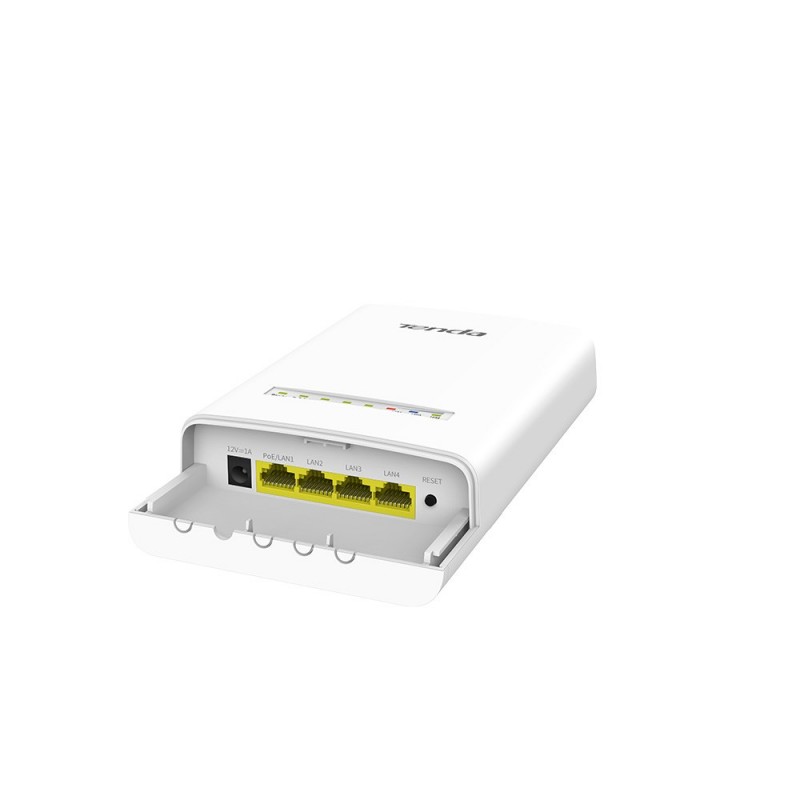

| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
| Output current | 1 A |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Protocols | |
| DHCP server | Yes |
| Security | |
| Security algorithms | 64-bit WEP |
| Security algorithms | WPA2 |
| Security algorithms | 128-bit WEP |
| Security algorithms | WPA2-PSK |
| Security algorithms | WPA-PSK |
| Security algorithms | WPA |
| Service Set Identifier (SSID) features | Hidden SSID |
| VPN support | PPTP L2TP |
| Weight & dimensions | |
| Depth | 109 mm |
| Height | 61 mm |
| Width | 193 mm |
