Home / ///IP KAMERA DAHUA IPC-HDW2849TM-S-IL-0280B
New IP KAMERA DAHUA IPC-HDW2849TM-S-IL-0280B

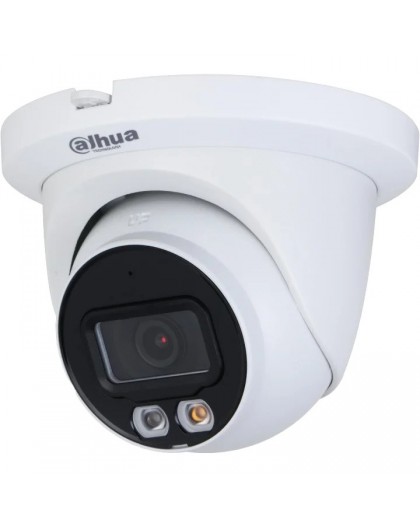

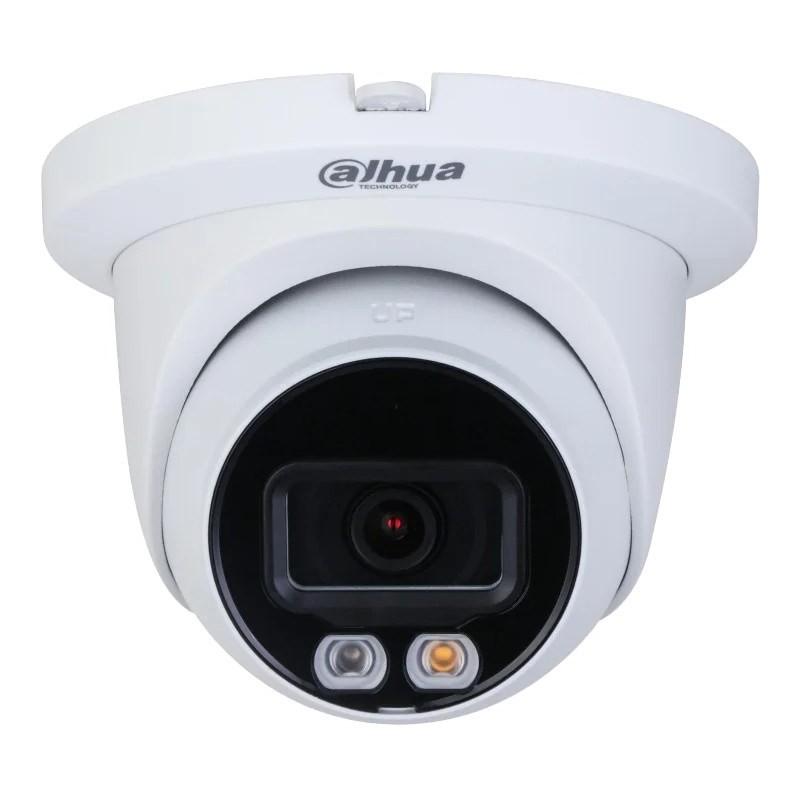

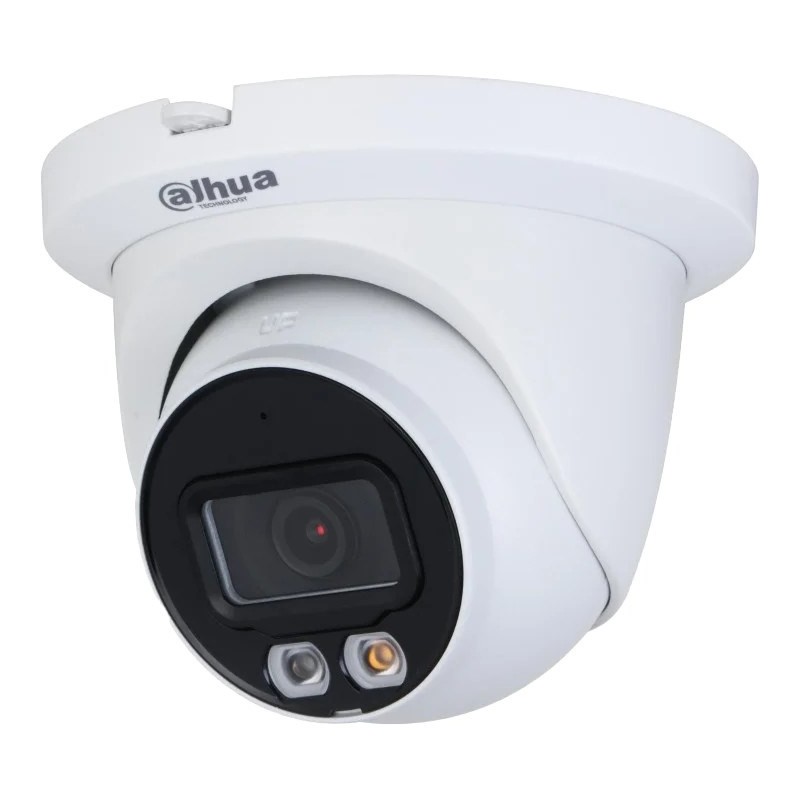

IP KAMERA DAHUA IPC-HDW2849TM-S-IL-0280B

DAHUA

IPC-HDW2849TM-S-IL-0280B

New product

28 Items

Shipping 0001-01-05 days

149,00 € tax incl.

Audio
Audio formats supportedG.726
Audio formats supportedG.711a
Audio formats supportedPCM
Audio formats supportedG.711Mu
Built-in microphoneYes
Camera
Adjustment shutter speedAuto/Manual
Camera shutter speed1/3 - 1/100000 s
Lens viewing angle, diagonal132°
Lens viewing angle, horizontal111°
Lens viewing angle, vertical58°
Minimum illumination0.008 lx
Pan range0 - 360°
Tilt angle range0 - 78°
White balanceNatural
White balanceManual
White balanceOutdoor
White balanceAuto
White balanceStreet lamp
Design
Form factorDome
Housing materialMetal, Plastic
International Protection (IP) codeIP67
Mounting typeCeiling
Product colourWhite
Image sensor
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Sensor typeCMOS
Lens system
Closest focusing distance1.5 m
Focal length range2.8 mm
Lens typeFixed focal length lens
Maximum aperture number1.6
Number of lenses1
Management features
Web browserYes
Web-based managementYes
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Number of users20 user(s)
Quality of Service (QoS) supportYes
Wi-FiNo
Night vision
LED typeIR / White light LED
Night visionYes
Night vision distance30 m
Number of illumination LEDs2
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-40 - 55 °C
Storage temperature (T-T)-40 - 60 °C
Packaging content
Number of cameras1
Performance
CertificationLVD: EN62368-1; EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B 2023-04-10
Connectivity technologyWired
Placement supportedExternal / Internal
Signal-to-Noise Ratio (SNR)56 dB
TypeIP security camera
Wide Dynamic Range (WDR)120 dB
Power
DC output voltage12
Power consumption (max)5 W
Power consumption (Power over Ethernet (PoE))5.9 W
Power source typeDC, PoE
Safety warning
WarningsThe product contains electronic components; do not dispose of with the normal household waste.
WarningsAvoid direct contact with water to prevent electrical damage.
WarningsEnsure that the product is properly installed and protected against falling.
Storage
Built-in HDDNo
Internal memory256 MB
ROM capacity128 MB
System requirements
Mobile operating systems supportediOS
Mobile operating systems supportedAndroid
Video
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate30 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution3840 x 2160 pixels
Mirror functionYes
Noise reductionYes
Noise reduction technology3D noise reduction
Region of Interest (ROI) encodingYes
Supported graphics resolutions704 x 576
Supported graphics resolutions1280 x 960
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported graphics resolutions2048 x 1536 (QXGA)
Supported graphics resolutions3072 x 1728
Supported graphics resolutions1280 x 720 (HD 720)
Supported graphics resolutions352 x 288
Supported graphics resolutions2880 x 1620
Supported graphics resolutions704 x 480
Supported graphics resolutions2688 x 1520
Supported graphics resolutions352 x 240
Supported graphics resolutions2304 x 1296
Supported graphics resolutions3840 x 2160
Supported graphics resolutions640 x 480 (VGA)
Supported graphics resolutions3072 x 2048
Total megapixels8 MP
Video compression formatsH.265
Video compression formatsH.264+
Video compression formatsH.264H
Video compression formatsH.264B
Video compression formatsM-JPEG
Video compression formatsH.264
Video compression formatsH.265+
Video streamingYes
Weight & dimensions
Diameter12.2 cm
Height99.1 mm
Weight480 g
