| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| SMD Plus | Yes |
| Hard drive | |
| HDD interface | SATA |
| Maximum storage capacity | 20 TB |
| Number of HDDs supported | 1 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 93% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Performance | |
| Audio codecs | PCM; G711A; G711U; G726 |
| Audio formats supported | G.726 |
| Audio formats supported | PCM |
| Audio formats supported | G.711 A-law |
| Audio formats supported | G.711 μ-law |
| Backup function | Yes |
| Input bandwidth | 80 Mbit/s |
| Maximum frame rate | 30 fps |
| Multi-screen | Yes |
| Operating system installed | Embedded LINUX |
| Output bandwidth | 60 Mbit/s |
| Playback modes | Pause, Play, Stop |
| Video codecs | Smart H.265; H.265; Smart H.264; H.264 |
| Video input channels | 8 channels |
| Video motion detection | Yes |

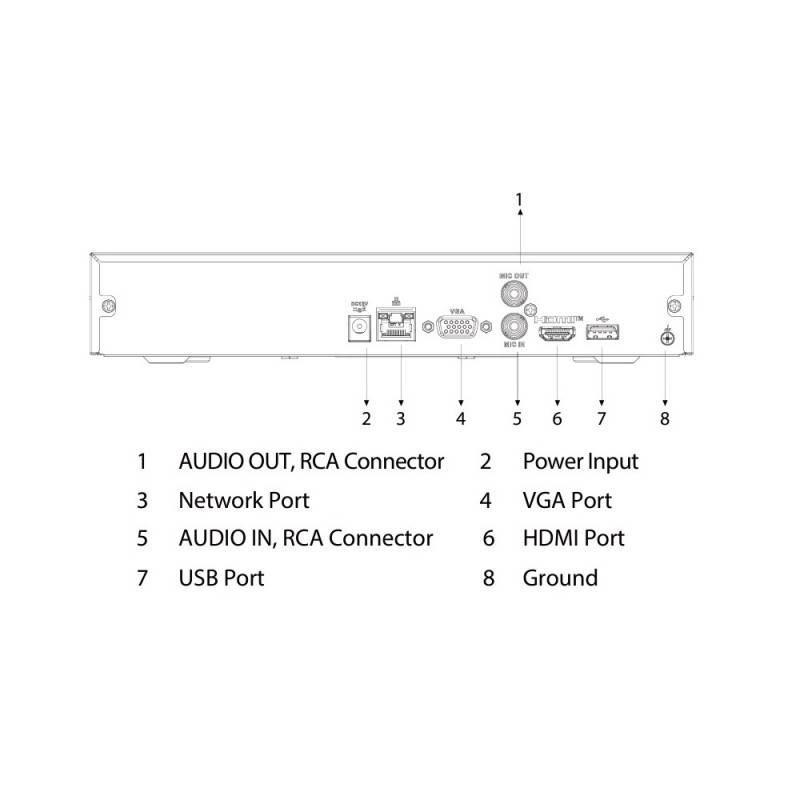

| Ports & interfaces | |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100 |
| Ethernet LAN data rates | 10 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Power over Ethernet (PoE) | No |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Power | |
| Output current | 2 A |
| Output voltage | 12 V |
| Power consumption (typical) | 10 W |
| Processor | |
| Built-in processor | Yes |
| Safety warning | |
| Warnings | Do not expose the device to moisture or extreme temperatures. |
| System requirements | |
| Browser supported | Chrome; IE9 or later; Firefox |
| Mobile operating systems supported | iOS |
| Mobile operating systems supported | Android |

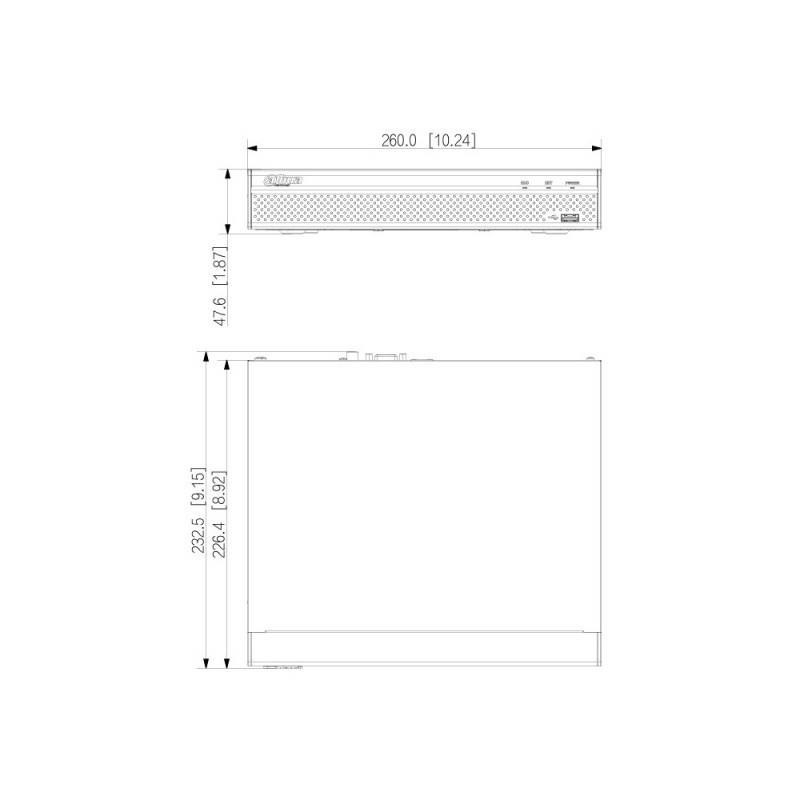

| Weight & dimensions | |
| Depth | 232.5 mm |
| Height | 47.6 mm |
| Package depth | 314 mm |
| Package height | 89 mm |
| Package weight | 1.38 kg |
| Package width | 334 mm |
| Weight | 810 g |
| Width | 260 mm |
