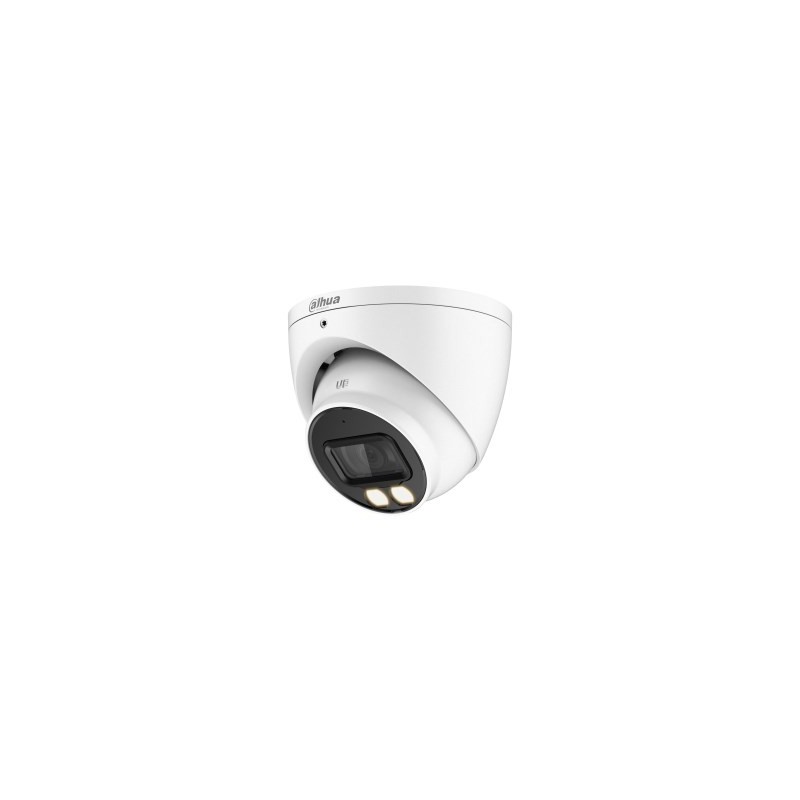

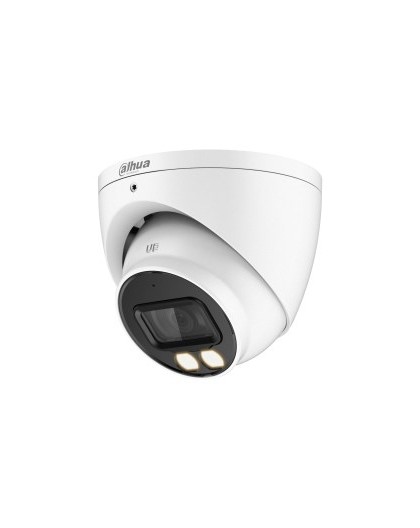

Dahua Technology Lite DH-HAC-HDW1509TP-IL-A security camera Spherical CCTV security camera Outdoor 2880 x 1620 pixels Ceiling
HAC-HDW1509T-IL-A-0280B-S2
New product
4 Items
Shipping 2025-11-19 days
219,00 € tax incl.
| Audio | |
| Audio input channels | 1.0 channels |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Camera | |
| Angle of rotation | 360° |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 s–1/100000 s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 131° |
| Lens viewing angle, diagonal | 131° |
| Lens viewing angle, horizontal | 111° |
| Lens viewing angle, vertical | 57° |
| Minimum illumination | 0.0001 lx |
| Pan range | 0 - 360° |
| Tilt angle range | 0 - 78° |
| White balance | Auto |
| White balance | AWC |
| Design | |
| Form factor | Spherical |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | Black |
| Product colour | White |
| Image sensor | |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Detect distance | 78 m |
| Digital zoom | 4x |
| Fixed focal length | 3.6 mm |
| Identify distance | 7.8 m |
| Maximum aperture number | 1 |
| Number of lenses | 1 |
| Observe distance | 31.2 m |
| Recognize distance | 15.6 m |
| Zoom capability | Yes |
| Network | |
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Night vision | |
| LED type | IR |
| Night vision | Yes |
| Number of illumination LEDs | 2 |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Packaging content | |
| Number of cameras | 1 |
| Packaging data | |
| Package depth | 139 mm |
| Package height | 137 mm |
| Package weight | 660 g |
| Package width | 148 mm |
| Performance | |
| Built-in light | Yes |
| Certification | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement supported | Outdoor |
| Remote viewing | Yes |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Ports & interfaces | |
| BNC output ports | 1 |
| Power | |
| AC input voltage | 12 V |
| DC output voltage | 12 |
| Power consumption (max) | 5.7 W |
| Power source type | DC |
| Safety warning | |
| Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
| Warnings | Avoid direct contact with water to prevent electrical damage. |
| Warnings | Ensure that the product is properly installed and protected against falling. |
| Security | |
| Fire detection | Yes |
| Mirror | Yes |
| Storage | |
| Built-in HDD | No |
| Video | |
| Analog signal format system | NTSC |
| Analog signal format system | PAL |
| Back Light Compensation (BLC) | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2880 x 1620 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 2880 x 1620 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported graphics resolutions | 960 x 576 |
| Supported graphics resolutions | 2560 x 1440 |
| Supported graphics resolutions | 960 x 480 |
| Supported video modes | 1080p |
| Total megapixels | 5 MP |
| Video recording | Yes |
| Weight & dimensions | |
| Diameter | 10.6 cm |
| Height | 93.6 mm |
| Weight | 490 g |
