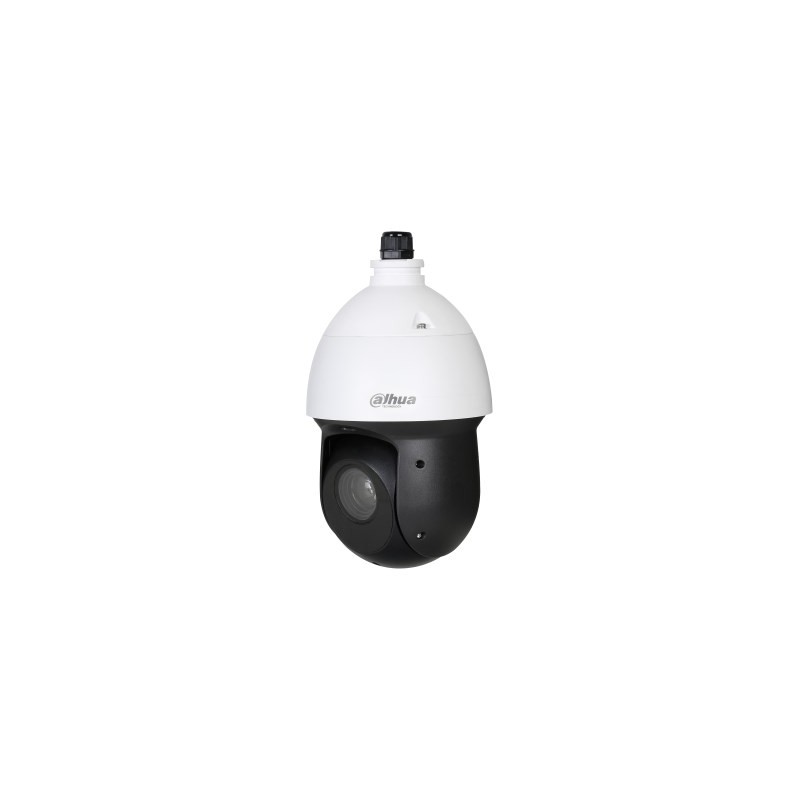

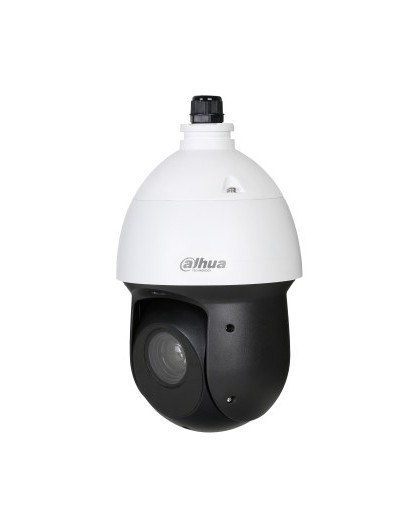

Home / ///Dahua Technology DH-SD49225DB-HC security camera Spherical CCTV security camera Outdoor 1920 x 1080 pixels Ceiling
New Dahua Technology DH-SD49225DB-HC security camera Spherical CCTV security camera Outdoor 1920 x 1080 pixels Ceiling

Dahua Technology DH-SD49225DB-HC security camera Spherical CCTV security camera Outdoor 1920 x 1080 pixels Ceiling

DAHUA

43422

New product

4 Items

Shipping 2025-11-19 days

1 069,00 € tax incl.

Audio
Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)50 dB
Camera
Auto flipYes
Camera pan controlYes
Camera shutter speed1/3 - 1/30000 s
Camera shutter typeElectronic
Camera tilt controlYes
Lens viewing angle, diagonal69.4 - 3.7°
Lens viewing angle, horizontal60.6 - 3.2°
Lens viewing angle, vertical34.1 - 1.8°
Minimum illumination0 lx
Pan manual speed0.1 - 200 °/sec
Pan preset speed240 °/sec
Pan range0 - 360°
Tilt angle range-15 - 90°
Tilt manual speed0.1 - 120 °/sec
Tilt preset speed200 °/sec
White balanceNatural
White balanceOutdoor
White balanceIndoor
White balanceManual
White balanceSodium lamp
White balanceStreet lamp
White balanceAuto
Design
Form factorSpherical
International Protection (IP) codeIP66
Mounting typeCeiling
Product colourWhite
Image sensor
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Sensor typeCMOS
Lens system
Auto focusYes
Closest focusing distance0.1 m
Detect distance1655.2 m
Digital zoom16x
Focal length range4.8 - 120 mm
Identify distance165.5 m
Maximum aperture number3.5
Minimum aperture number1.6
Observe distance653.8 m
Optical zoom25x
Recognize distance331 m
Zoom capabilityYes
Network
BluetoothNo
Ethernet LANNo
Wi-FiNo
Night vision
LED typeIR
Night visionYes
Night vision distance100 m
Number of illumination LEDs6
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)-40 - 70 °C
Packaging content
Number of cameras1
Packaging data
Package weight4.2 kg
Performance
Alarm input/outputYes
Connectivity technologyWired
Day/night modeYes
Dynamic range120 dB
Placement supportedOutdoor
Preset pointsYes
PTZ controlYes
PTZ modesAuto scan
PTZ modes8 Tour
PTZ modesPreset point
PTZ modes5 Pattern
PTZ protocolsDH-SD
TypeCCTV security camera
Wide Dynamic Range (WDR)Yes
Ports & interfaces
BNC output ports1
RS-485 ports1
Power
DC output voltage12
Power consumption (max)22 W
Power consumption (typical)10 W
Power source typeDC
Safety warning
WarningsThe product contains electronic components; do not dispose of with the normal household waste.
WarningsAvoid exposure of the device to direct water or moisture.
WarningsIt is forbidden to open the device yourself; service and repairs should be performed by qualified personnel.
WarningsAvoid direct contact with water to prevent electrical damage.
WarningsEnsure that the product is properly installed and protected against falling.
WarningsStart up and operate the unit in accordance with the operating instructions to avoid the risk of electric shock.
Storage
Built-in HDDNo
Internal memory256 MB
ROM capacity128 MB
Video
Analog signal format systemPAL
Back Light Compensation (BLC)Yes
Frame rate60 fps
Gain control typeAuto/Manual
Highlight Compensation (HLC)Yes
Maximum resolution1920 x 1080 pixels
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Privacy maskingYes
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported graphics resolutions704 x 480
Supported graphics resolutions1280 x 720 (HD 720)
Supported graphics resolutions704 x 576
Total megapixels2 MP
Weight & dimensions
Diameter16 cm
Height269.9 mm
Weight3 kg
