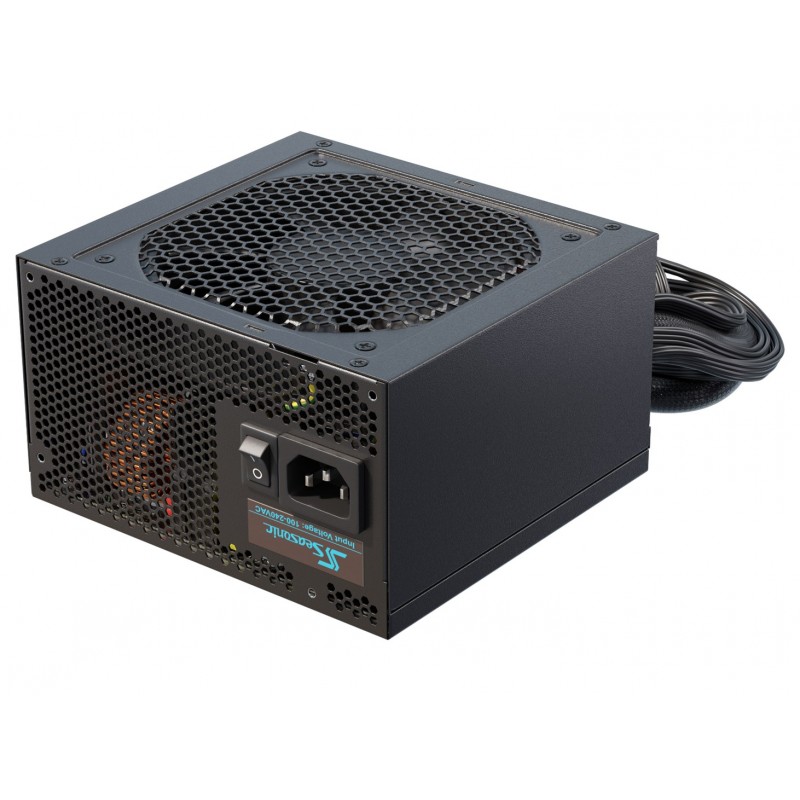

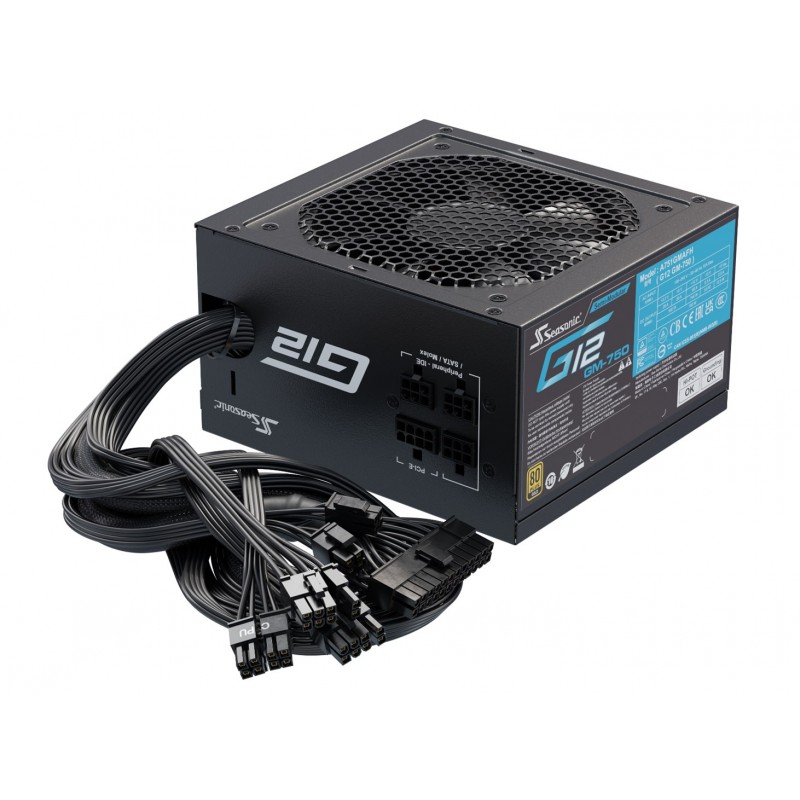

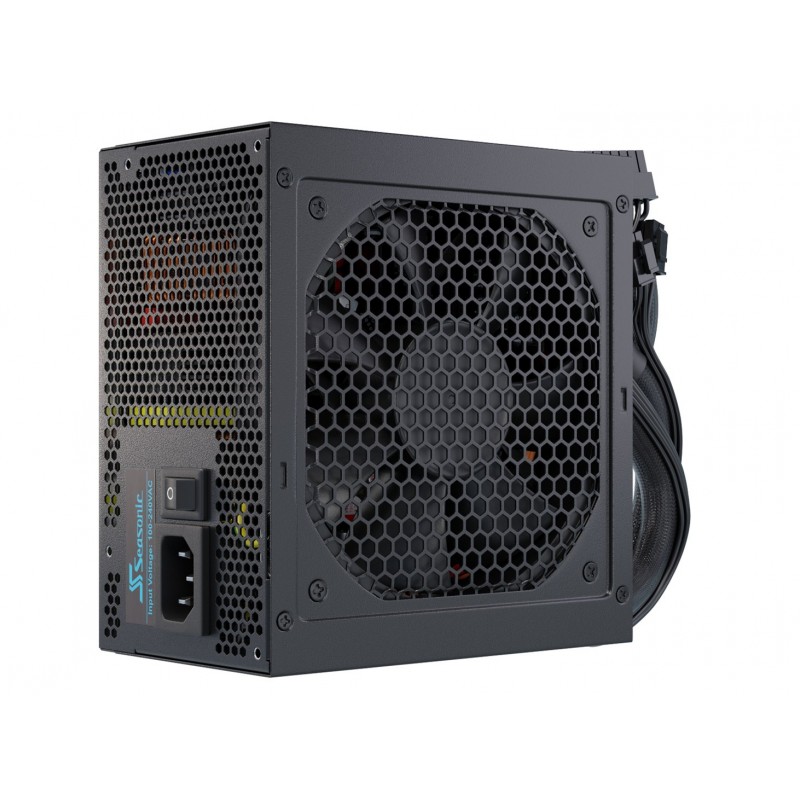

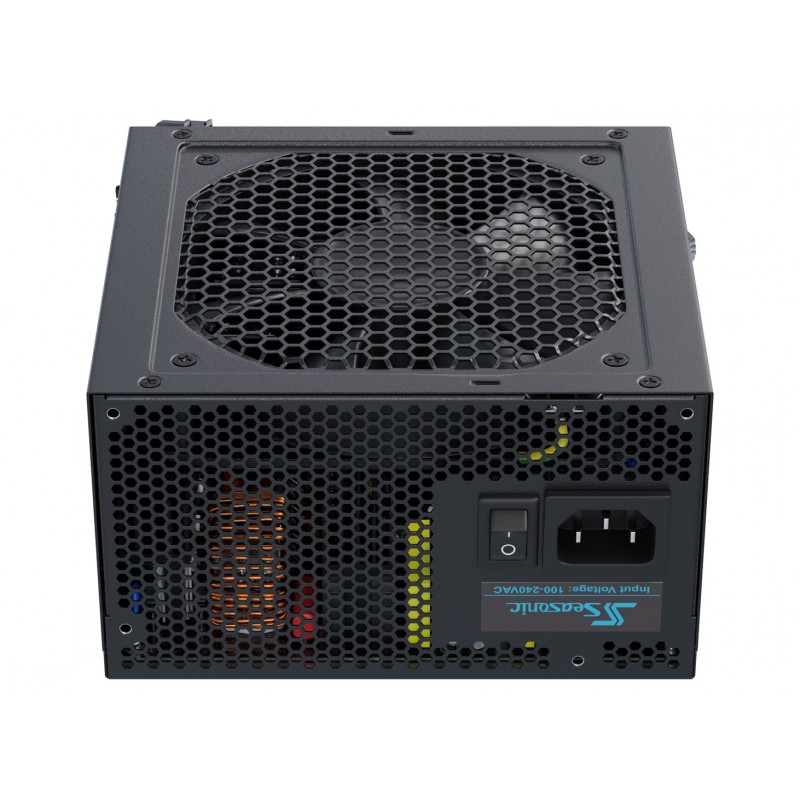

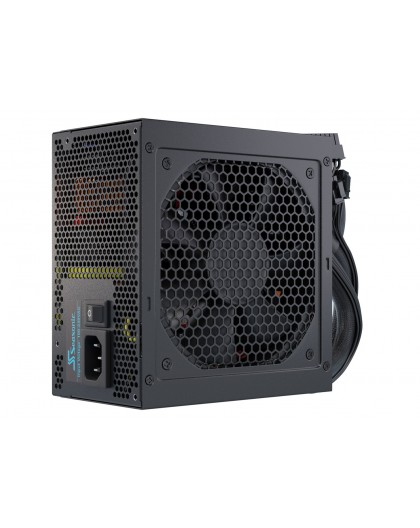

Home / ///Seasonic G12-GM-750 power supply unit 750 W 20+4 pin ATX ATX Black
New Seasonic G12-GM-750 power supply unit 750 W 20+4 pin ATX ATX Black

Seasonic G12-GM-750 power supply unit 750 W 20+4 pin ATX ATX Black

Seasonic

NESE-185

New product

17 Items

Shipping 2025-11-24 days

119,00 € tax incl.

Certificates
CertificationcTUVus, TUV, CB, CCC, BSMI, CE, FCC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Design
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 50 °C
Packaging content
Cable tie(s) includedYes
Cables includedAC, PCIe, Peripheral (Molex), SATA
Packaging data
Package typeBox
Performance
80 PLUS certification80 PLUS Gold
Bearing technologySleeve
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeSemi-Modular
CPU power cable length60 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length55 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
PCI Express power cable length70 cm
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power cable length690 mm
Peripheral (Molex) power connectors (4-pin)3
Power
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)744 W
Combined power (+3.3V)100 W
Combined power (+5V)100 W
Combined power (+5Vsb)12.5 W
Input current10 A
Max output current (-12V)0.3 A
Max output current (+12V)62 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)2.5 A
Power protection featuresOver current
Power protection featuresShort circuit
Power protection featuresOver voltage
Total power750 W
Weight & dimensions
Depth140 mm
Height86 mm
Width150 mm
