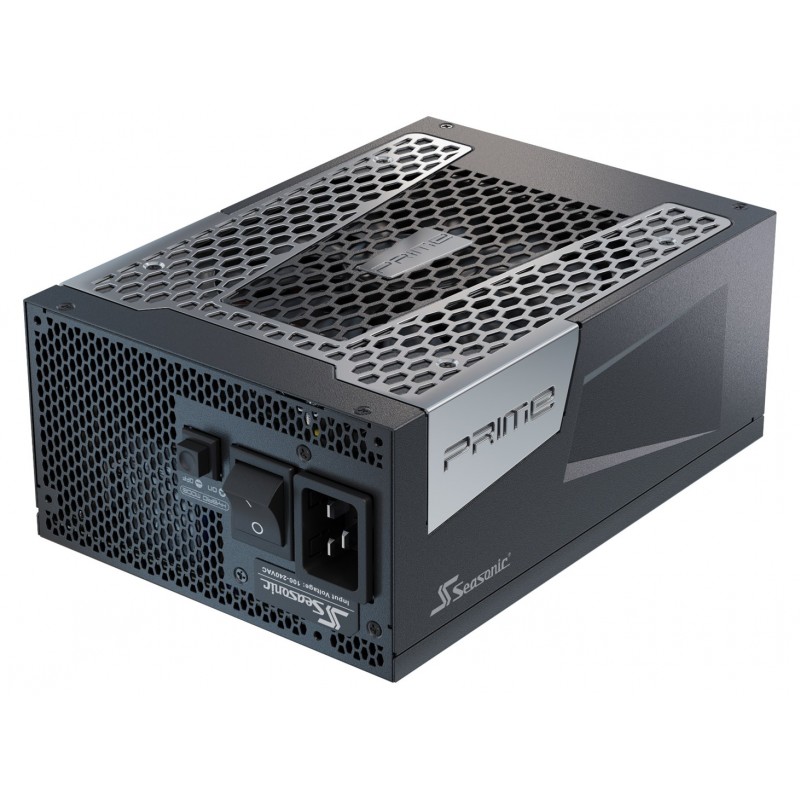

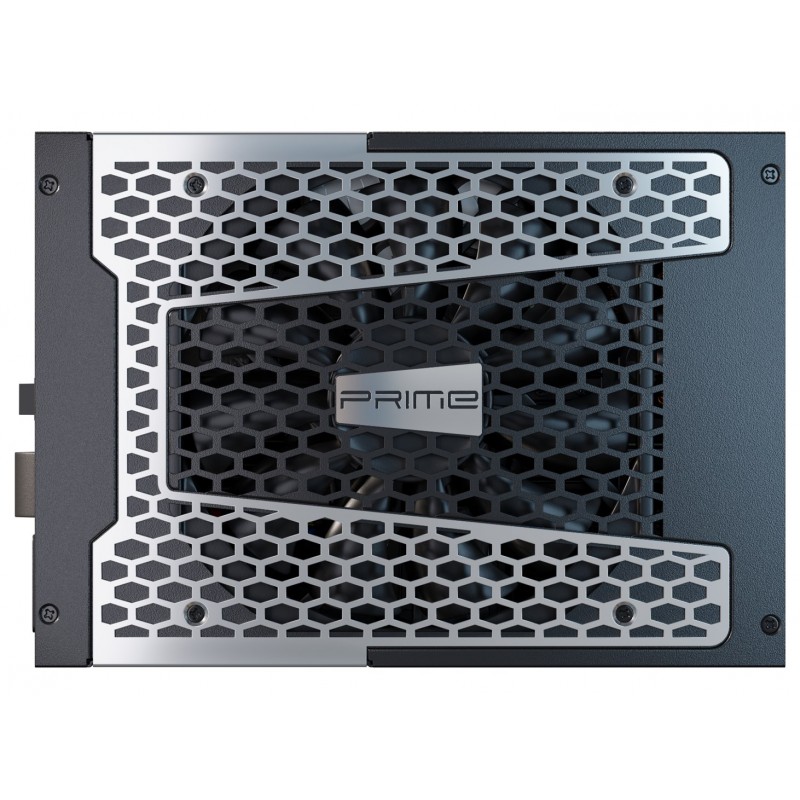

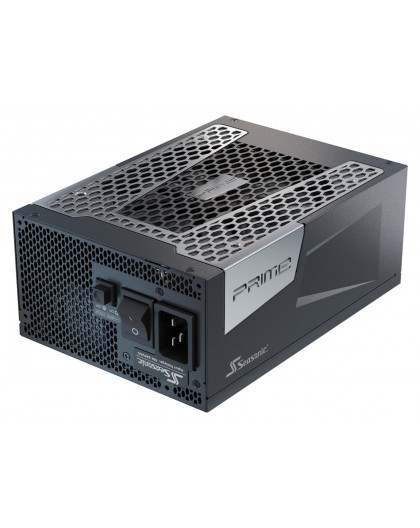

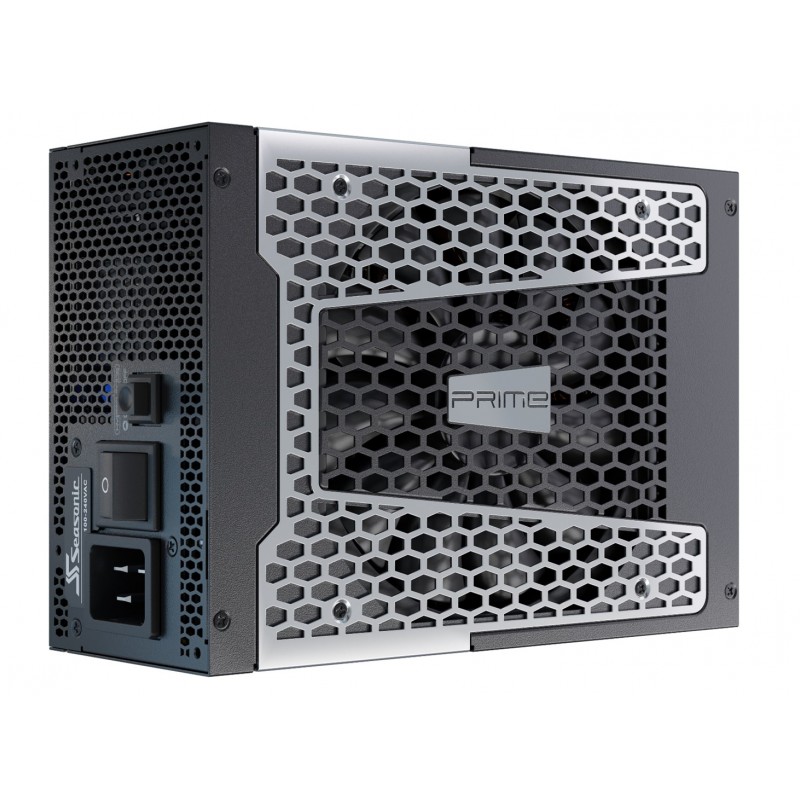

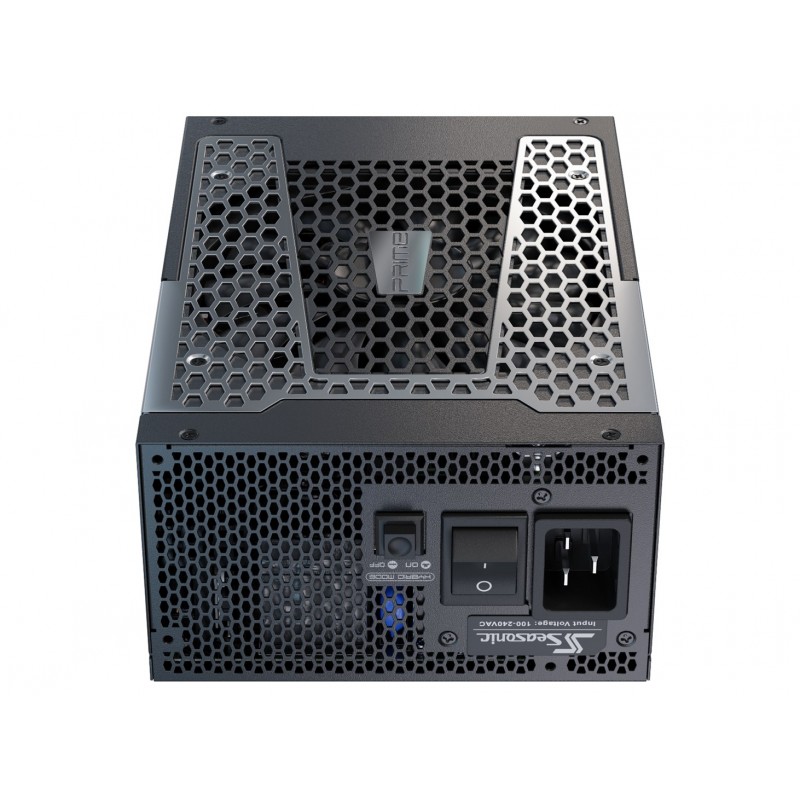

New Seasonic ATX3-PRIME-PX-1600 power supply unit 1600 W 20+4 pin ATX ATX Black

Seasonic ATX3-PRIME-PX-1600 power supply unit 1600 W 20+4 pin ATX ATX Black

Seasonic

SSR-1600PD2

New product

10 Items

Shipping 2025-11-24 days

449,00 € tax incl.

Design
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
Product colourBlack
Operational conditions
Operating relative humidity (H-H)15 - 65%
Operating temperature (T-T)0 - 50 °C
Packaging content
Cables includedCPU, PCIe, Peripheral (Molex) to SATA 3.3, SATA
Performance
80 PLUS certification80 PLUS Platinum
ATX version3.0
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeFully-Modular
CPU P4 connector (4-pin)1
CPU power cable length70 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length61 cm
Motherboard power connector20+4 pin ATX
Peripheral (Molex) power cable length690 mm
Peripheral (Molex) power connectors (4-pin)3
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)6 W
Combined power (+12V)1600 W
Combined power (+3.3V)125 W
Combined power (+5V)125 W
Combined power (+5Vsb)15 W
Input current15 - 10 A
Max output current (+12V)133.3 A
Max output current (+3.3V)25 A
Max output current (+5V)25 A
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresOver power
Total power1600 W
Safety regulation & standards
SafetycTUVus, TUV, CB, CCC, BSMI, EAC, CE
Weight & dimensions
Depth210 mm
Height86 mm
Width150 mm
