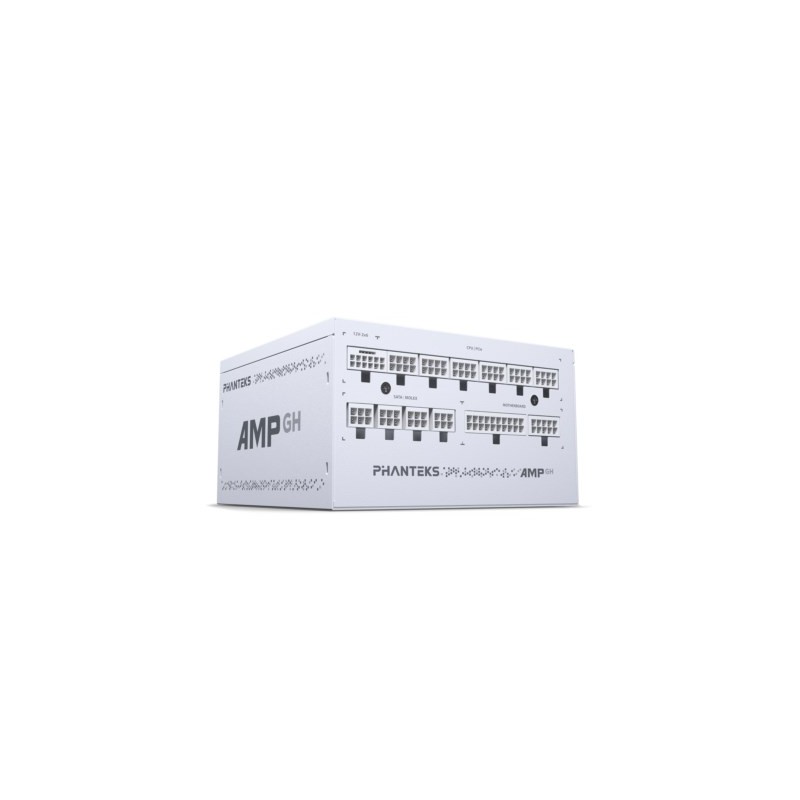

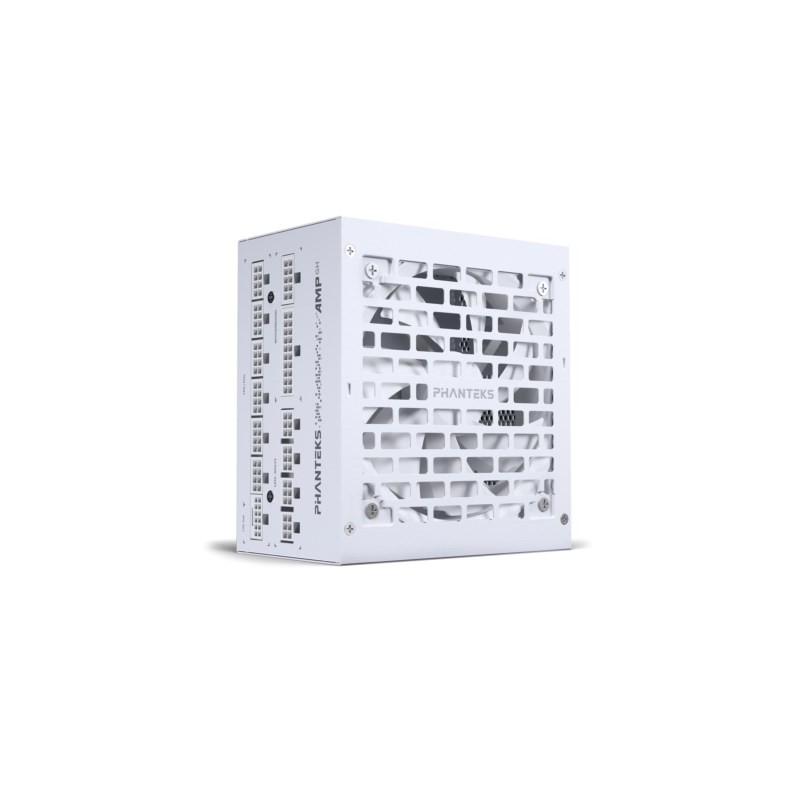

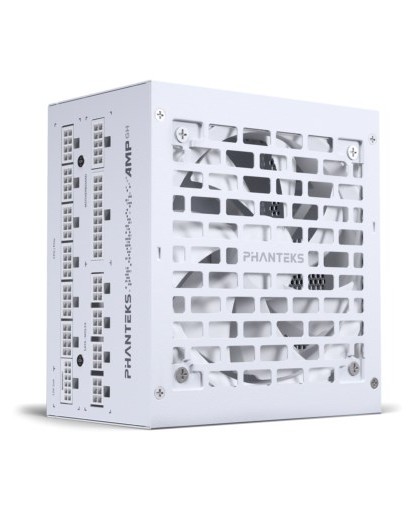

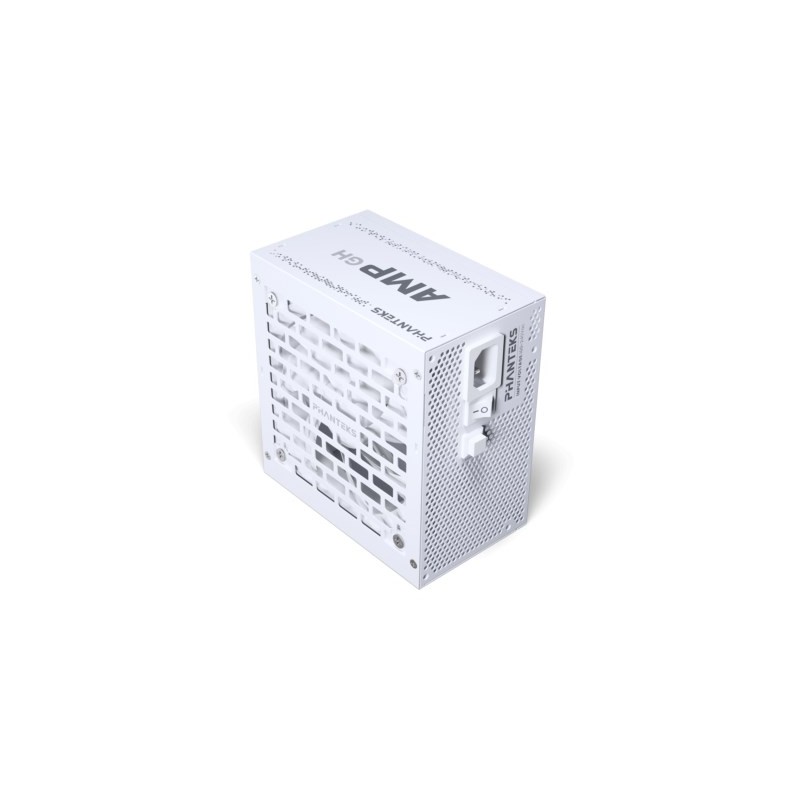

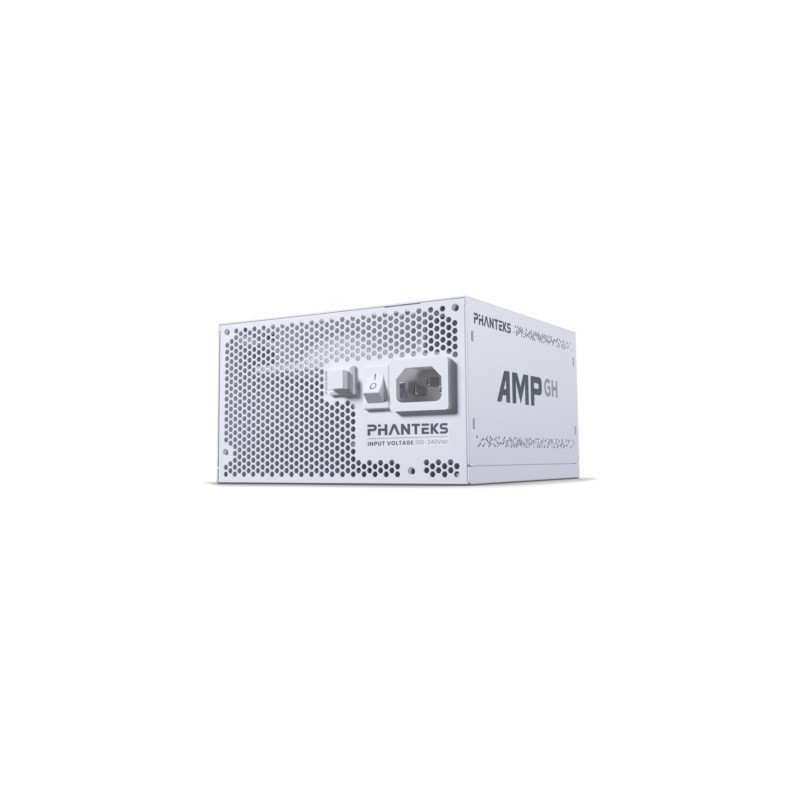

Phanteks AMP GH power supply unit 1000 W 18+10 pin ATX ATX White

Reference: NEPH-027

Condition: New product

29 Item Items

Shipping 2025-11-24 days

189,00 € tax incl.

Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Product colour	White
Logistics data
Warranty period	8 year(s)
Packaging data
Package type	Box
Package weight	3.2 kg
Performance
80 PLUS certification	80 PLUS Platinum
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC
Ports & interfaces
Cabling type	Fully-Modular
CPU power connector (4+4 pin)	Yes
Motherboard power connector	18+10 pin ATX
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	4
Peripheral (Molex) power connectors (4-pin)	2
Power
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Combined power (-12V)	3.6 W
Combined power (+12V)	996 W
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Combined power (+5Vsb)	15 W
Input current	12 - 6 A
Max output current (-12V)	0.3 A
Max output current (+12V)	83 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Maximum input current (@110V)	12 A
Maximum input current (@220V)	6 A
Power protection features	Overcharge
Power protection features	Overheating
Power protection features	Short circuit
Power protection features	Over current
Power protection features	Over power
Total power	1000 W
Weight & dimensions
Depth	150 mm
Height	86 mm
Weight	1.4 kg
Width	140 mm
