Home / ///FSP ADVAN GM 1000W power supply unit 20+4 pin ATX ATX Black
New FSP ADVAN GM 1000W power supply unit 20+4 pin ATX ATX Black

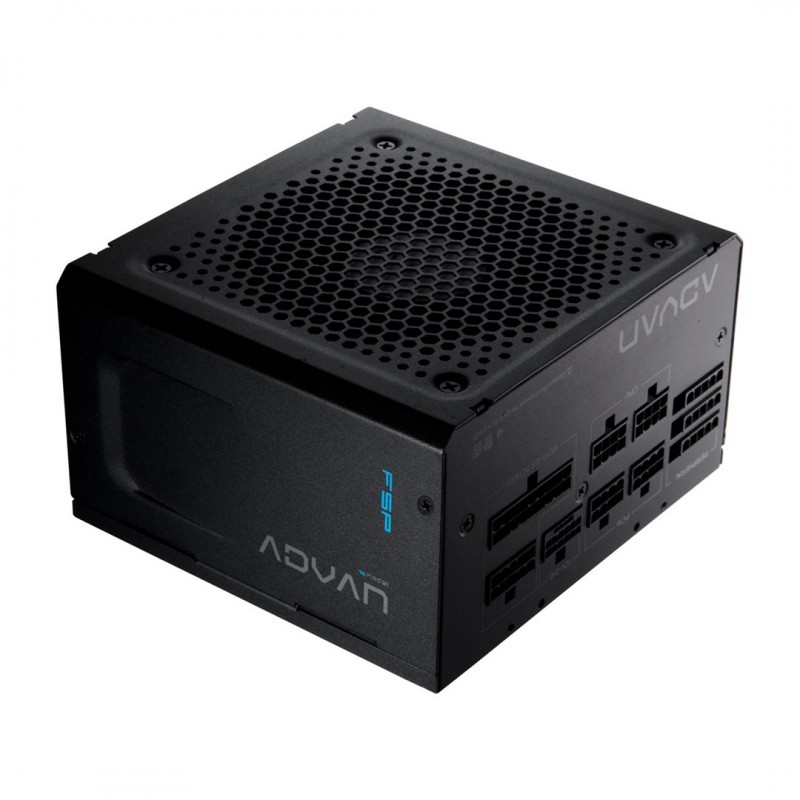

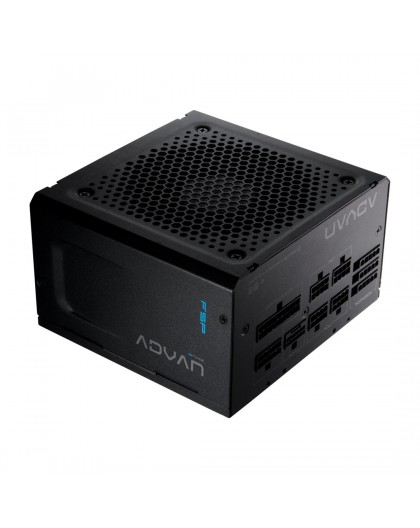

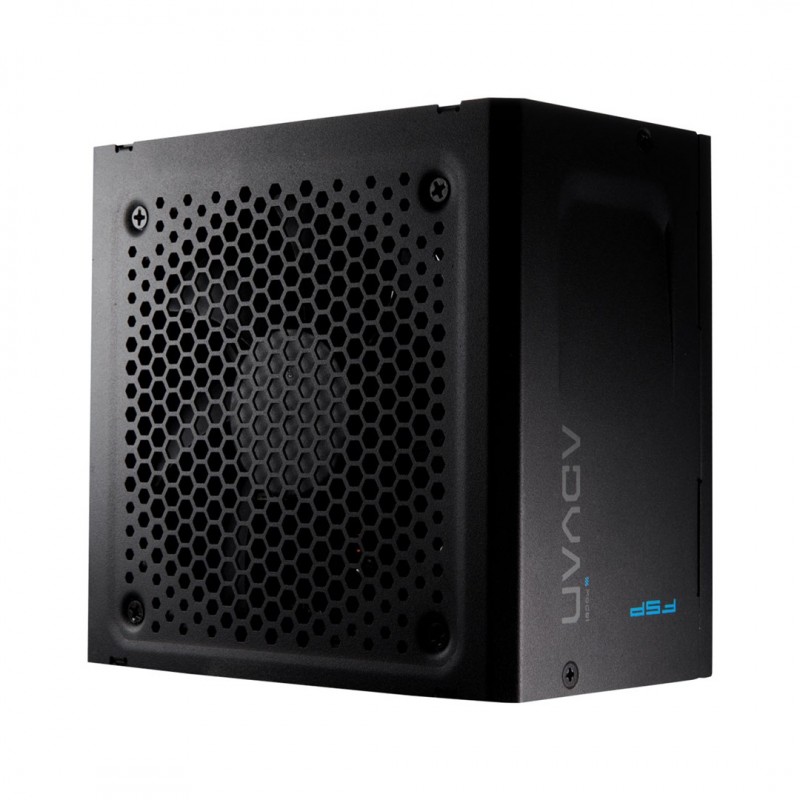

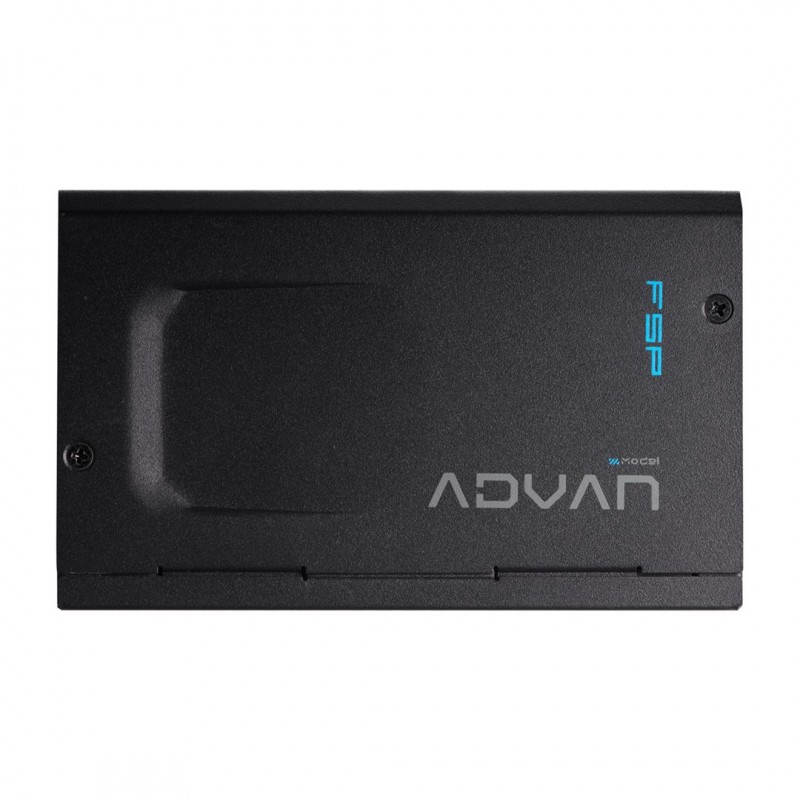

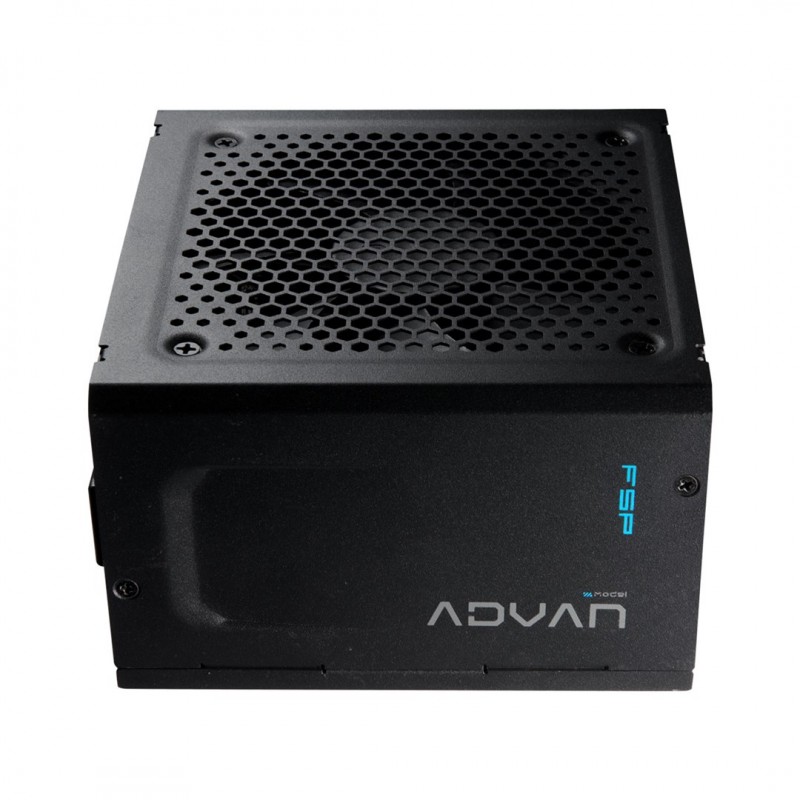

FSP ADVAN GM 1000W power supply unit 20+4 pin ATX ATX Black

Fortron

520608

New product

8 Items

Shipping 2025-11-24 days

149,00 € tax incl.

Design
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyHYB
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeFully-Modular
CPU power cable length70 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length60 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors4
PCI Express power cable length70 cm
PCI Express power connectors (12-pin)1
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power connectors (4-pin)4
Power
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)1000 W
Combined power (+3.3V)100 W
Combined power (+5V)100 W
Combined power (+5Vsb)15 W
Efficiency90%
Input current6 A
Max output current (-12V)0.3 A
Max output current (+12V)83.33 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Power factor0.9
Power Factor Correction (PFC) typeActive
Power protection featuresSurge & inrush protection (SIP)
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresNo load operation
Power protection featuresOver power
Power protection featuresShort circuit
Power protection featuresOver voltage
Total power1000 W
Weight & dimensions
Depth140 mm
Height86 mm
Width150 mm
