New DeepCool PN650M power supply unit 650 W 20+4 pin ATX ATX Black

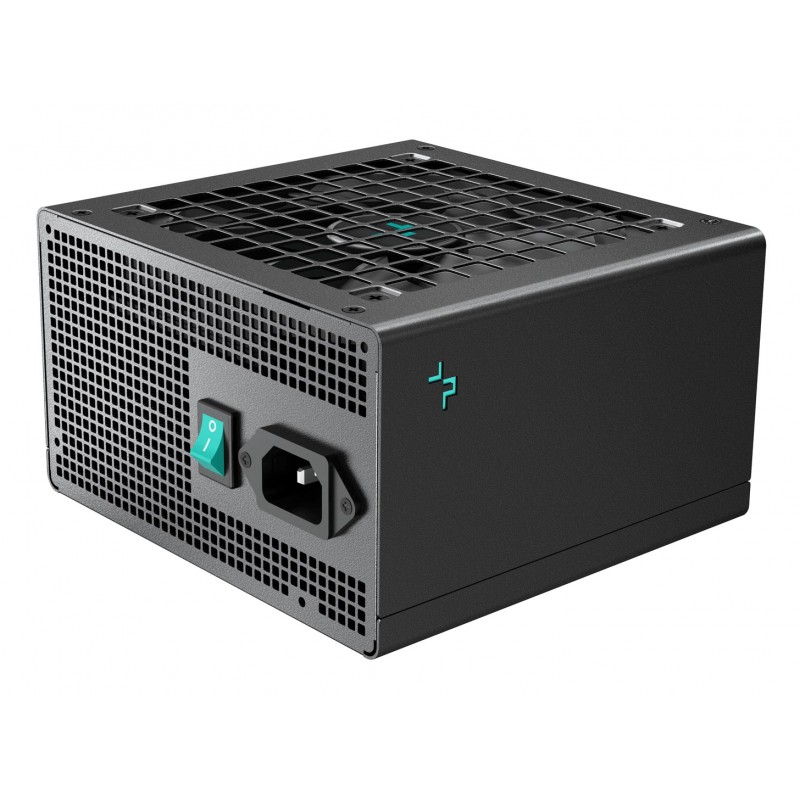

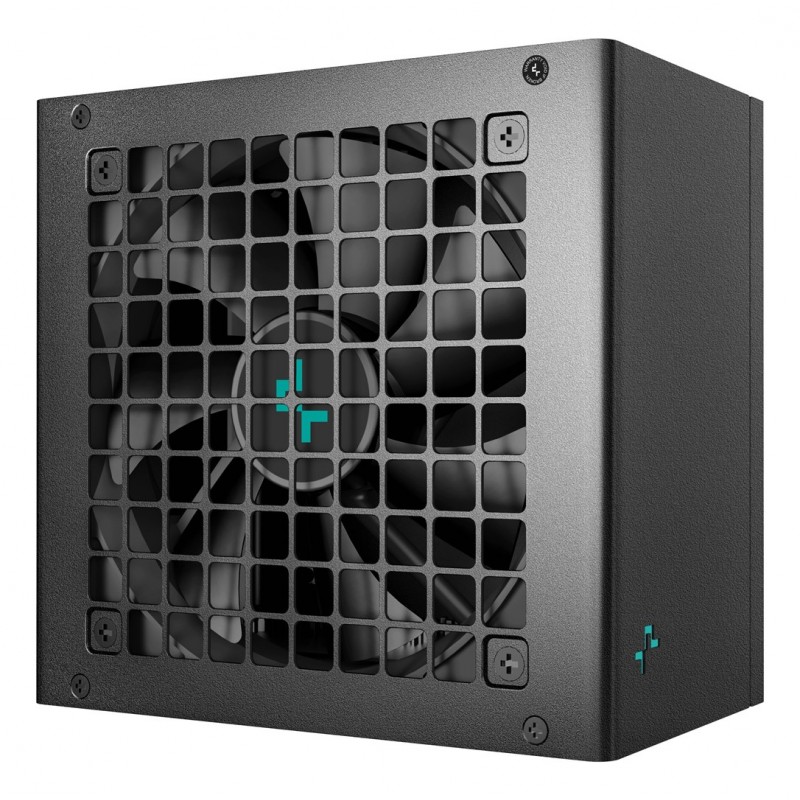

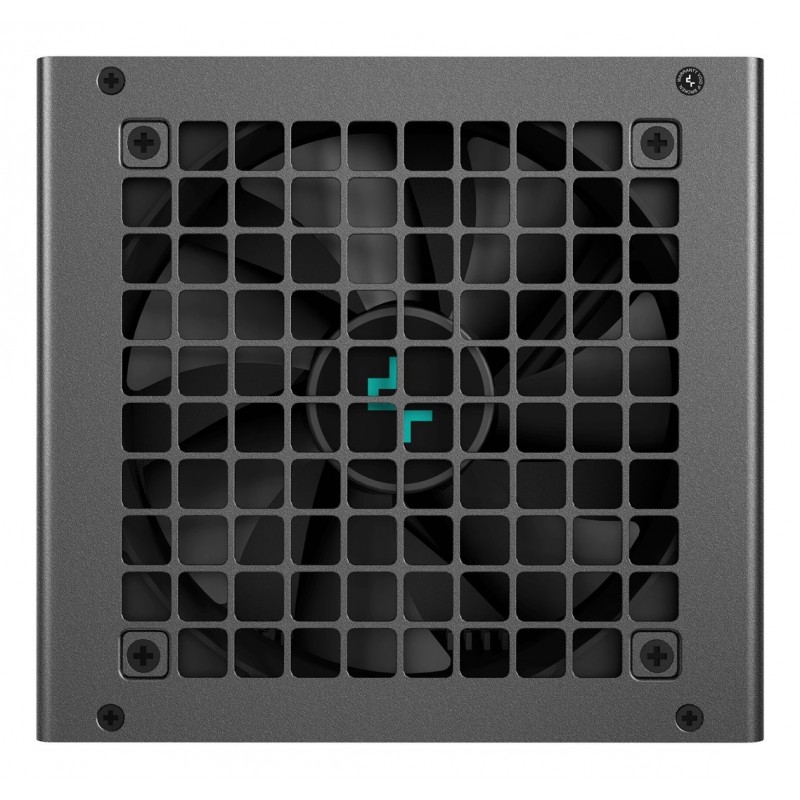

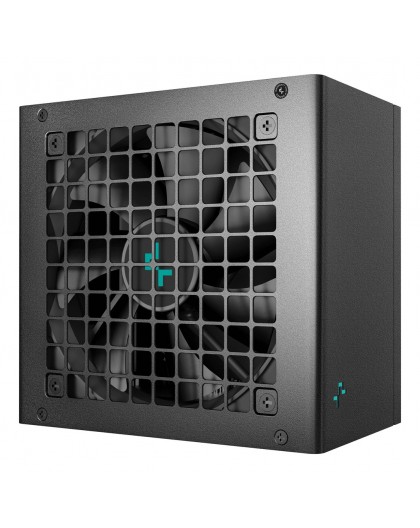

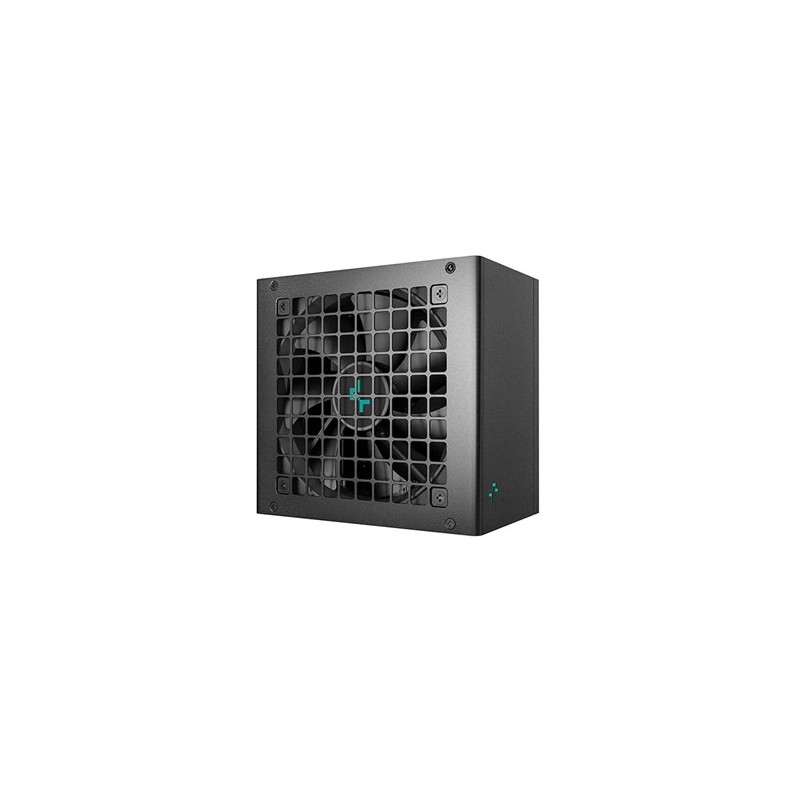

DeepCool PN650M power supply unit 650 W 20+4 pin ATX ATX Black

DEEPCOOL

44929335

New product

24 Items

Shipping 2025-11-21 days

119,00 € tax incl.

Certificates
Compliance certificatesCCC
Compliance certificatesWEEE
Compliance certificatesRCM
Compliance certificatesFederal Communications Commission (FCC)
Compliance certificatesRoHS
Compliance certificatesCE
Compliance certificatesEAC
Design
Cooling typeActive
Fan diameter12 cm
Fan locationTop
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Logistics data
Warranty period10 year(s)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Packaging content
Cable tie(s) includedYes
Cables includedAC
Packaging data
Package typeBox
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyFDB
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
ATX power connector (20+4 pin)Yes
Cabling typeFully-Modular
CPU power cable length70 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length55 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors8
PCI Express power connectors (16-pin)1
PCI Express power connectors (6+2 pin)3
Peripheral (Molex) power cable length450 mm
Peripheral (Molex) power connectors (4-pin)2
SATA power cable length450 mm
SATA power cable length650
SATA power cable length550
SATA power cable length750 mm
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)648 W
Combined power (+3.3V)100 W
Combined power (+5V)100 W
Combined power (+5Vsb)15 W
Efficiency90%
Hold time16 ms
Input current10 - 5 A
Max output current (-12V)0.3 A
Max output current (+12V)54 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Power Factor Correction (PFC) typeActive
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOverheating
Power protection featuresOver power
Power protection featuresUnder voltage
Power protection featuresNo load operation
Power protection featuresSurge & inrush protection (SIP)
Power protection featuresSurge protection
Total power650 W
Technical details
Sustainability certificatesTriman
Weight & dimensions
Depth140 mm
Height86 mm
Width150 mm
