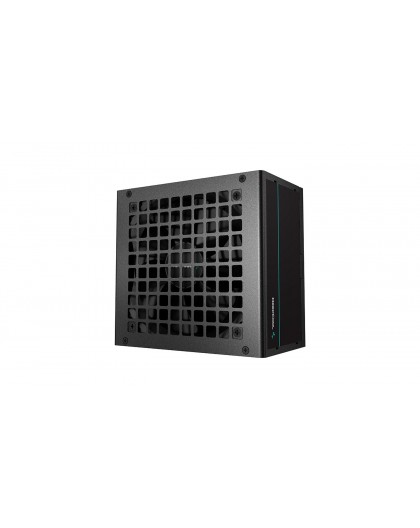

DeepCool PF400 power supply unit 400 W 20+4 pin ATX ATX Black

Reference: R-PF400D-HA0B-EU

Condition: New product

57 Item Items

Shipping 2025-11-14 days

39,00 € tax incl.

Design
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Packaging content
Cables included	AC
Packaging data
Package type	Box
Performance
80 PLUS certification	80 PLUS
ATX version	2.4
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC/Server
Ports & interfaces
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	2
SATA power cable length	900 mm
SATA power cable length	750
SATA power cable length	450
SATA power cable length	600 mm
Power
AC input frequency	50 Hz
AC input voltage	220 - 240 V
Combined power (-12V)	3.6 W
Combined power (+12V)	384 W
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	12.5 W
Efficiency	85%
Hold time	16 ms
Max output current (-12V)	0.3 A
Max output current (+12V)	32 A
Max output current (+3.3V)	15 A
Max output current (+5V)	15 A
Max output current (+5Vsb)	2.5 A
Power protection features	Under voltage
Power protection features	Over power
Power protection features	Short circuit
Power protection features	Over voltage
Total power	400 W
Weight & dimensions
Depth	140 mm
Height	86 mm
Width	150 mm
