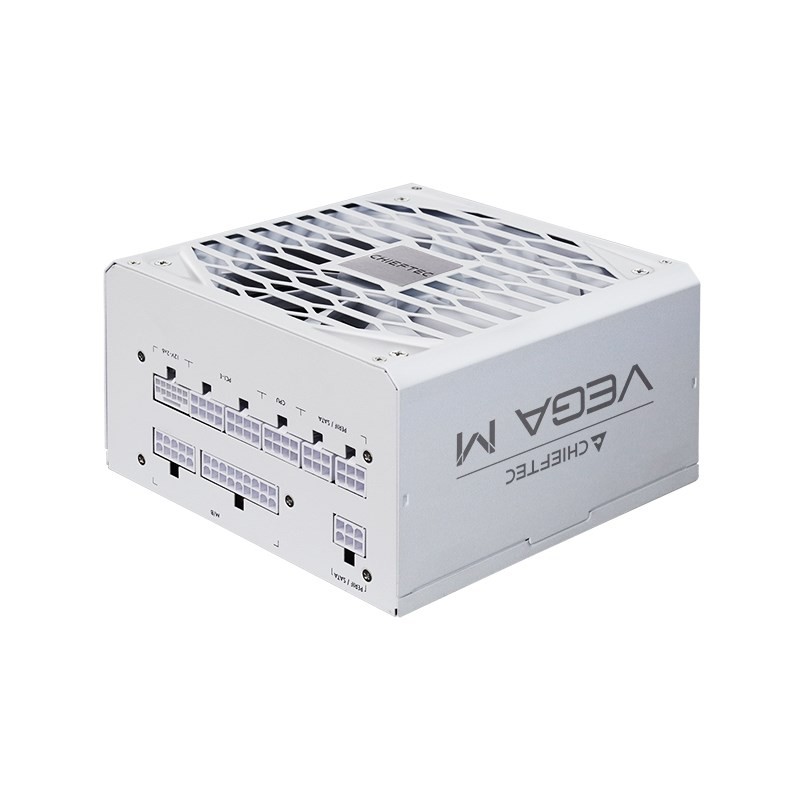

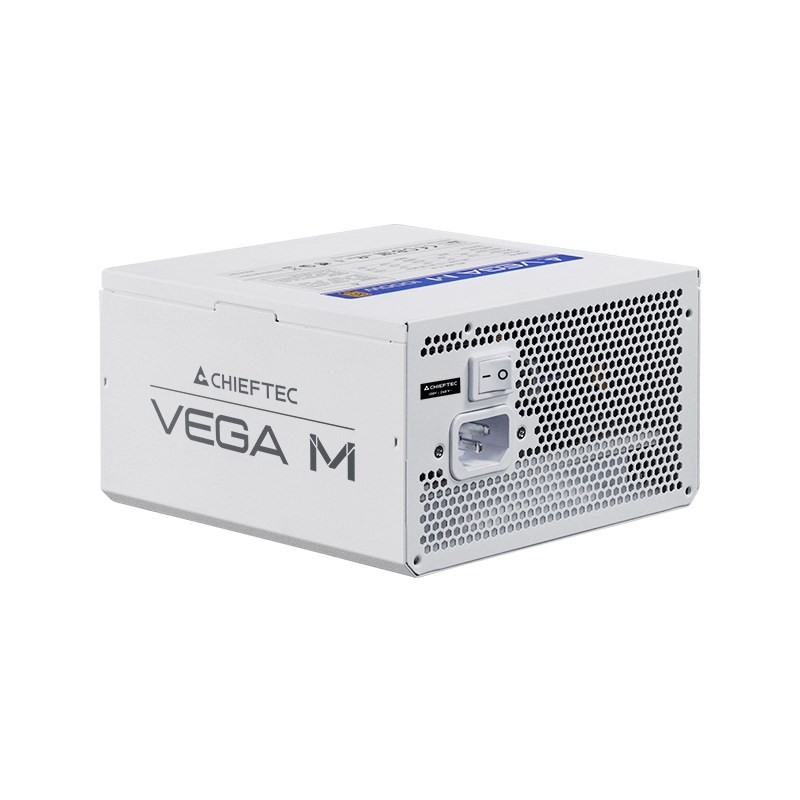

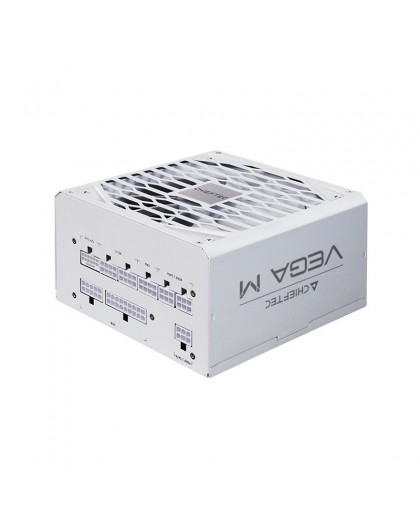

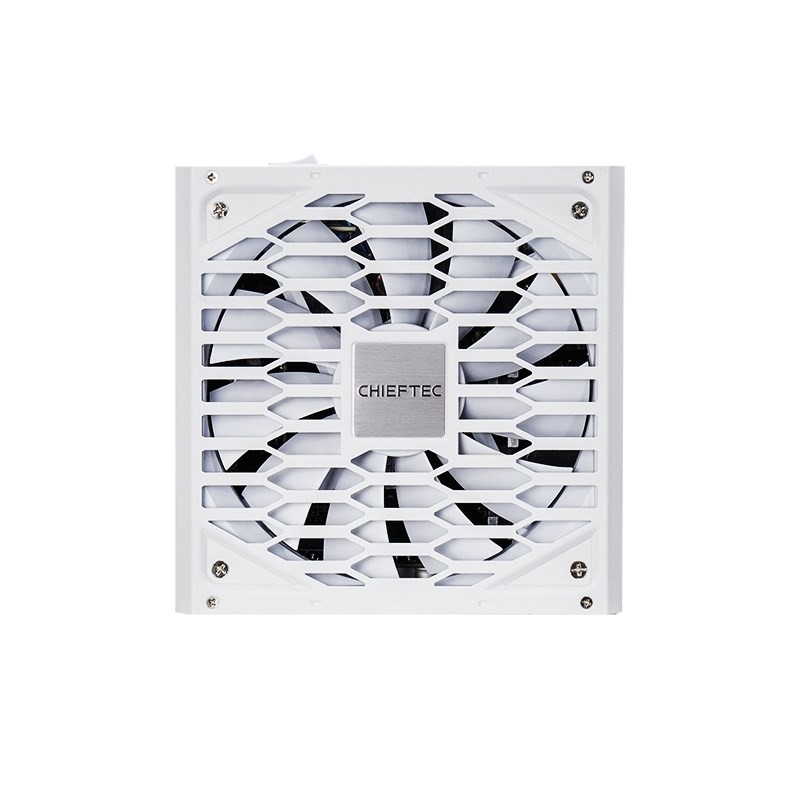

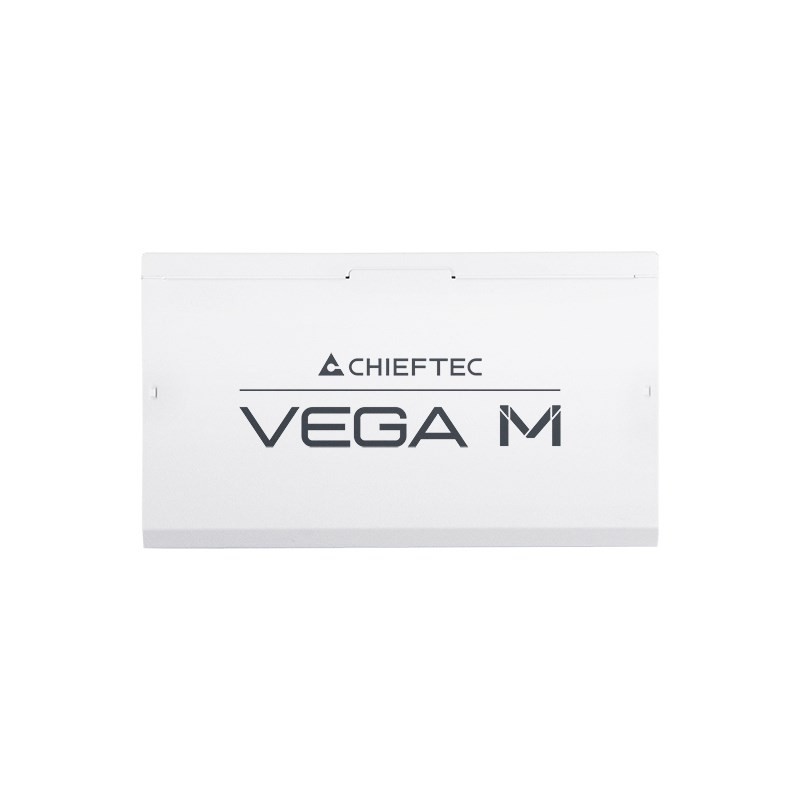

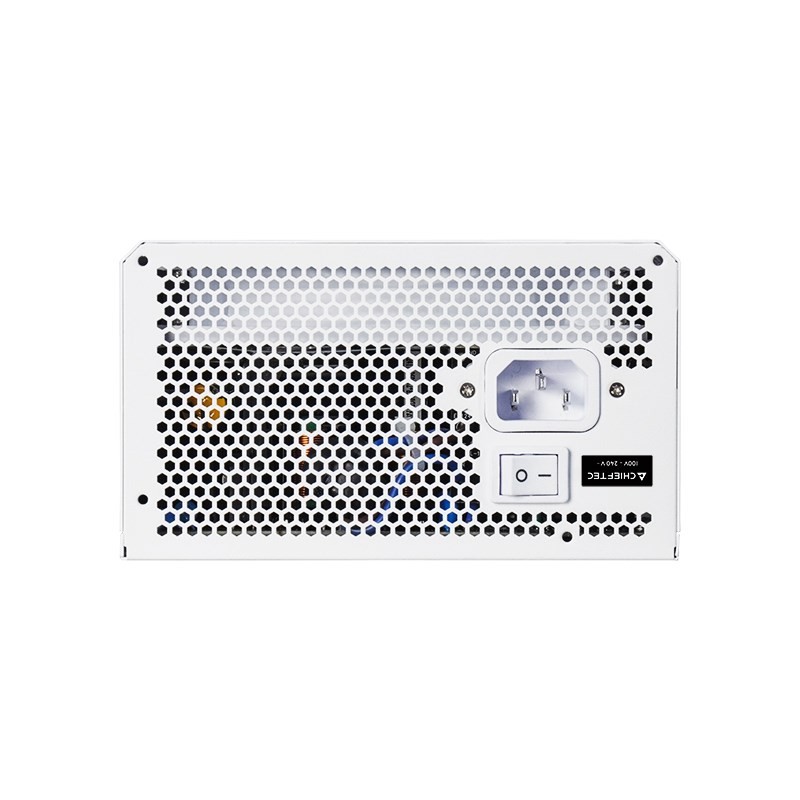

Home / ///Chieftec Vega PPG-750-CW power supply unit 750 W 24-pin ATX ATX White
New Chieftec Vega PPG-750-CW power supply unit 750 W 24-pin ATX ATX White

Chieftec Vega PPG-750-CW power supply unit 750 W 24-pin ATX ATX White

Chieftec

PPG-750-CW

New product

19 Items

Shipping 2025-11-25 days

129,00 € tax incl.

Certificates
Certification80PLUS Gold
Design
Cooling typeActive
Fan diameter13.5 cm
IlluminationNo
Product colourWhite
Packaging data
Package weight2.43 kg
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyFDB
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
ATX power connector (20+4 pin)Yes
ATX Power connector (24-pin)Yes
Cabling typeFully-Modular
CPU power cable length65 cm
CPU power connector (4+4 pin)Yes
Motherboard power cable length60 cm
Motherboard power connector24-pin ATX
Number of SATA power connectors6
PCI Express power connectors (12+4 pin)1
PCI Express power connectors (12+4 pin) cable length600 mm
PCI Express power connectors (6+2 pin)4
Peripheral (Molex) power cable length400 mm
Peripheral (Molex) power cable length150
Peripheral (Molex) power connectors (4-pin)3
SATA power cable length400 mm
SATA power cable length150
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (+3.3V)100 W
Combined power (+5V)100 W
Max output current (-12V)0.3 A
Max output current (+12V1)62.5 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Power Factor Correction (PFC) typeActive
Total power750 W
Weight & dimensions
Depth150 mm
Height85 mm
Weight1.96 kg
Width150 mm
