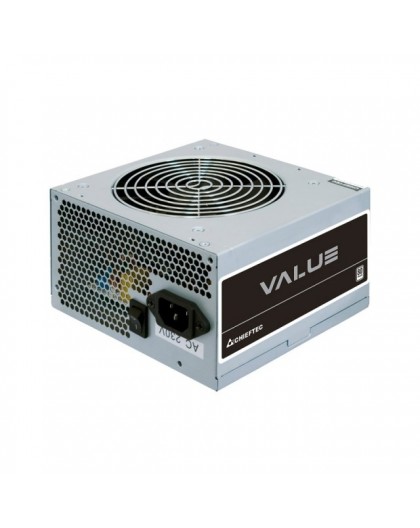

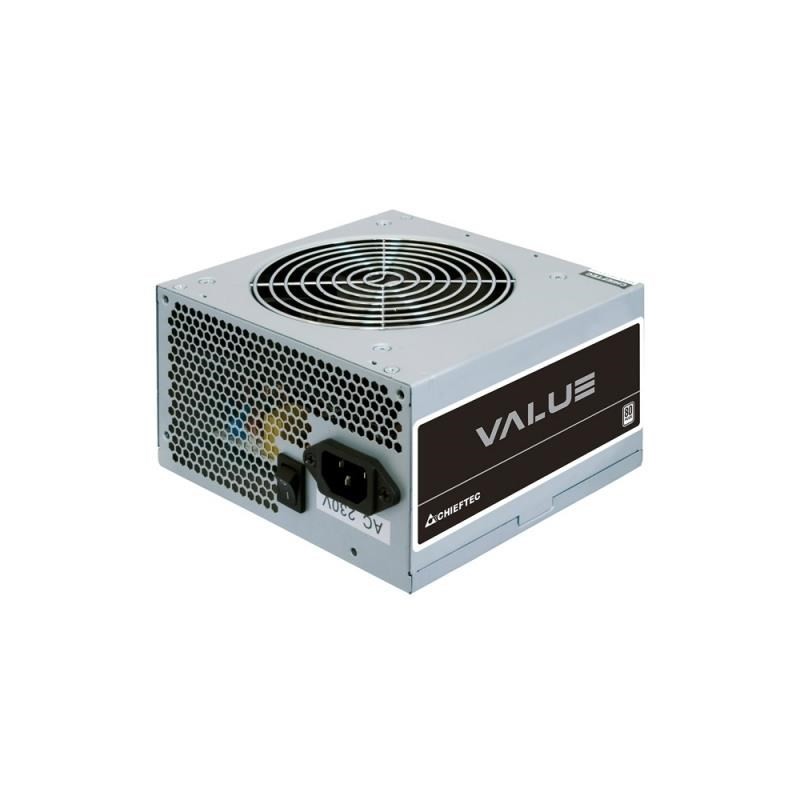

Chieftec Value APB-600B8 power supply unit 600 W 20+4 pin ATX ATX Steel

Reference: APB-600B8

Condition: New product

50 Item Items

Shipping 2025-11-21 days

59,00 € tax incl.

Certificates
Compliance certificates	RoHS
Compliance certificates	CE
Design
Cooling type	Active
Fan diameter	12 cm
Fan location	Top
Number of fans	1 fan(s)
On/off switch	Yes
Product colour	Steel
Logistics data
Harmonized System (HS) code	84733020
Packaging data
Package weight	1.56 kg
Performance
80 PLUS certification	80 PLUS
ATX version	2.3
Power supply unit (PSU) form factor	ATX
Purpose	PC
Ports & interfaces
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
EPS power connector (8-pin)	No
Floppy disk drive cable length	15 cm
Floppy disk drive connector	Yes
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power cable length	150
Peripheral (Molex) power cable length	500 mm
Peripheral (Molex) power connectors (4-pin)	2
SATA power cable length	500 mm
SATA power cable length	150
Power
AC input frequency	47 - 63 Hz
AC input voltage	200 - 240 V
Combined power (-12V)	3.6 W
Combined power (+12V)	552 W
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Combined power (+5Vsb)	12.5 W
Max output current (-12V)	0.3 A
Max output current (+12V1)	46 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	2.5 A
Maximum input current (@220V)	4.5 A
Peak power	600 W
Total power	600 W
Weight & dimensions
Depth	140 mm
Height	87 mm
Weight	1.42 kg
Width	150 mm
