Home / ///Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey
New Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey

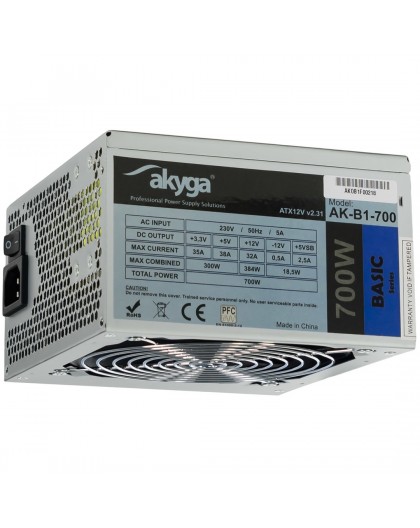

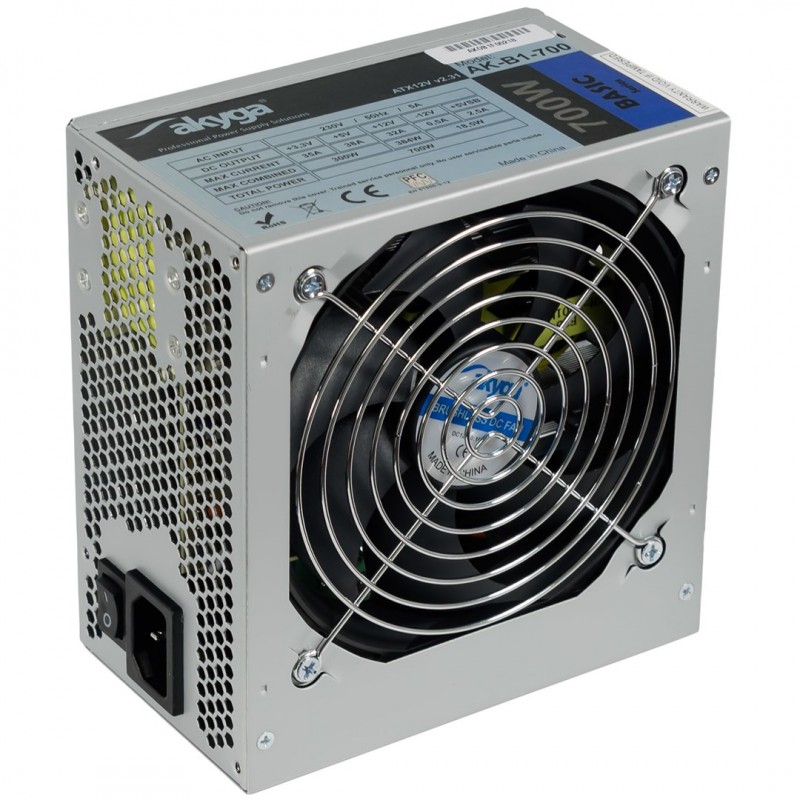

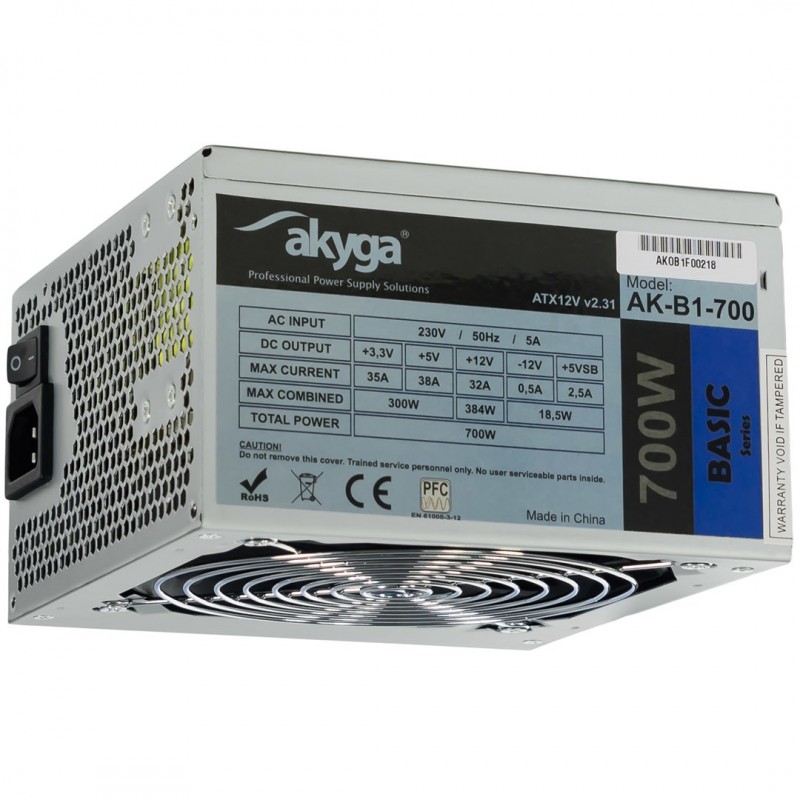

Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey

Akyga

AK-B1-700

New product

12 Items

Shipping 2025-11-14 days

49,00 € tax incl.

Design
Cooling typeActive
Fan diameter12 cm
Fan locationSide
Number of fans1 fan(s)
On/off switchYes
Product colourGrey
Operational conditions
Operating temperature (T-T)5 - 50 °C
Other features
EPS cable length60 cm
Packaging data
Package depth260 mm
Package height95 mm
Package typeBox
Package weight1.33 kg
Package width180 mm
Performance
ATX version2.31
CertificationCE, FCC, RoHS, REACH
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC

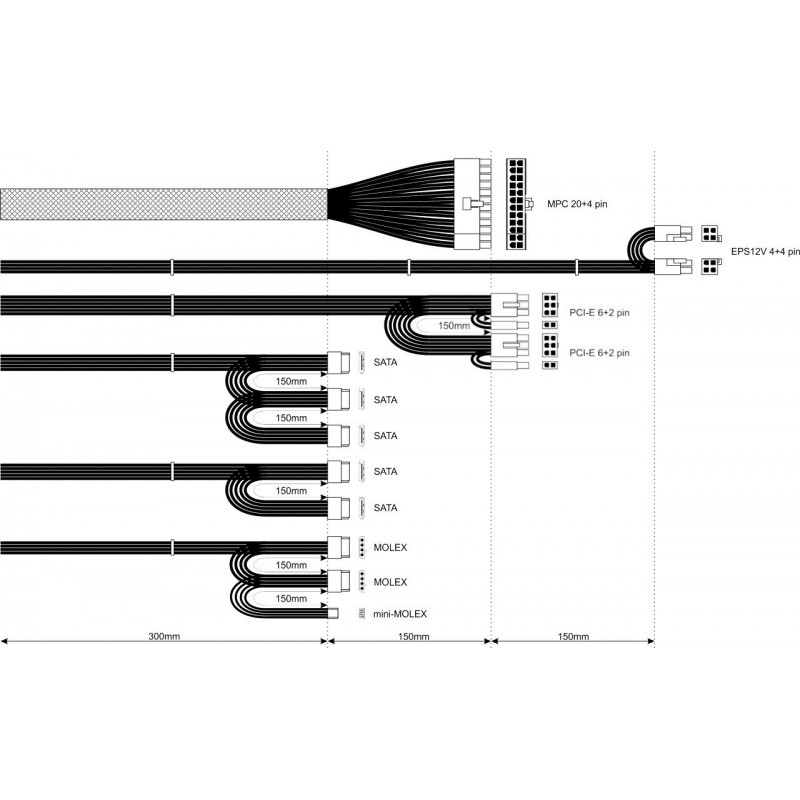

Ports & interfaces
Cabling typeNon-Modular
EPS power connector (4+4 pin)Yes
Motherboard power cable length45 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors5
PCI Express power cable length45 cm
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power cable length150
Peripheral (Molex) power cable length300 mm
Peripheral (Molex) power connectors (4-pin)2
SATA power cable length300
SATA power cable length150

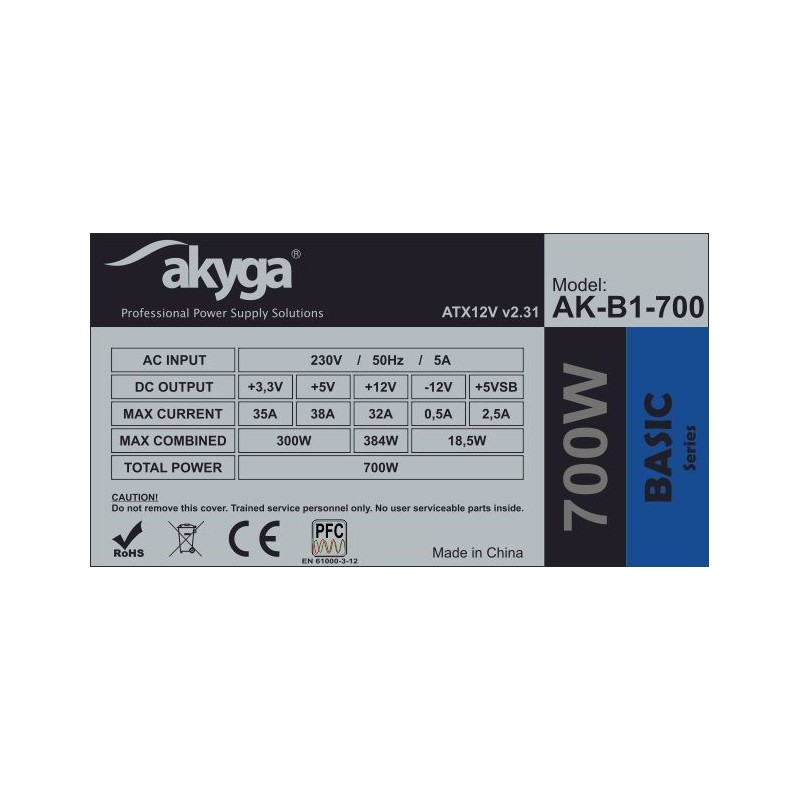

Power
AC input frequency50 Hz
AC input voltage220 - 230 V
Combined power (-12V)18.5 W
Combined power (+12V)384 W
Combined power (+3.3V)300 W
Combined power (+5V)300 W
Combined power (+5Vsb)18.5 W
Efficiency70%
Max output current (-12V)0.5 A
Max output current (+12V)32 A
Max output current (+3.3V)35 A
Max output current (+5V)38 A
Max output current (+5Vsb)2.5 A
Power Factor Correction (PFC) typePassive
Power protection featuresOverheating
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOver power
Power protection featuresOver current
Total power700 W
Technical details
Compliance certificatesRoHS
Weight & dimensions
Depth160 mm
Height85 mm
Weight1.26 kg
Width150 mm
