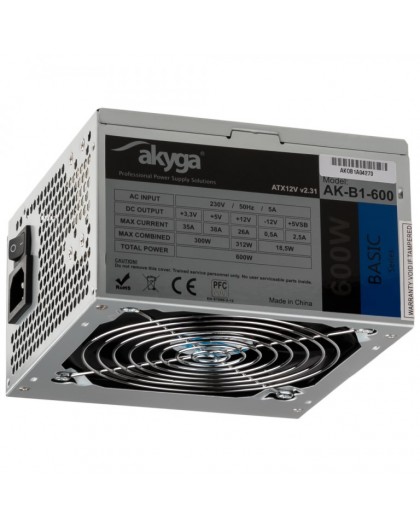

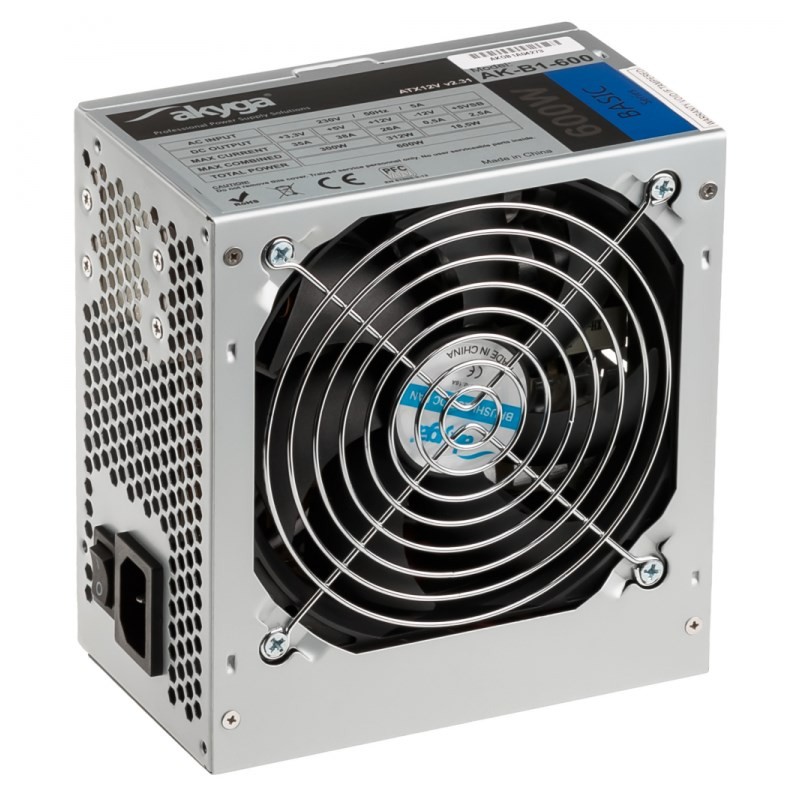

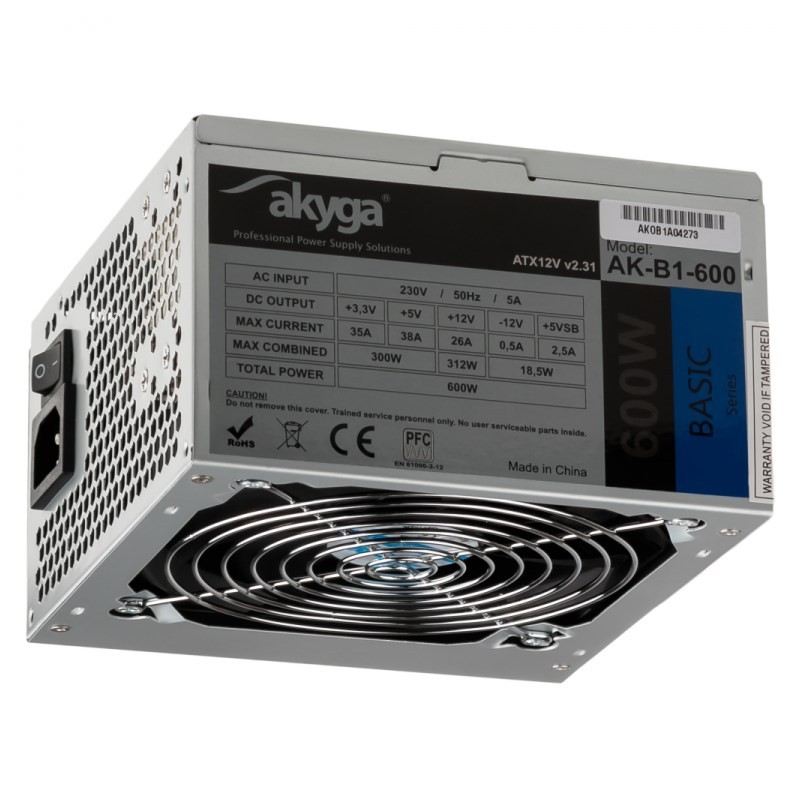

Akyga AK-B1-600 power supply unit 600 W 20+4 pin ATX ATX Grey

Reference: AK-B1-600

Condition: New product

11 Item Items

Shipping 2025-11-14 days

39,00 € tax incl.

Design
Fan diameter	12 cm
Number of fans	1 fan(s)
Product colour	Grey
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Packaging data
Package depth	220 mm
Package height	95 mm
Package type	Box
Package weight	1.19 kg
Package width	160 mm
Performance
ATX version	2.31
Certification	REACH, CE, RoHS
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Purpose	PC

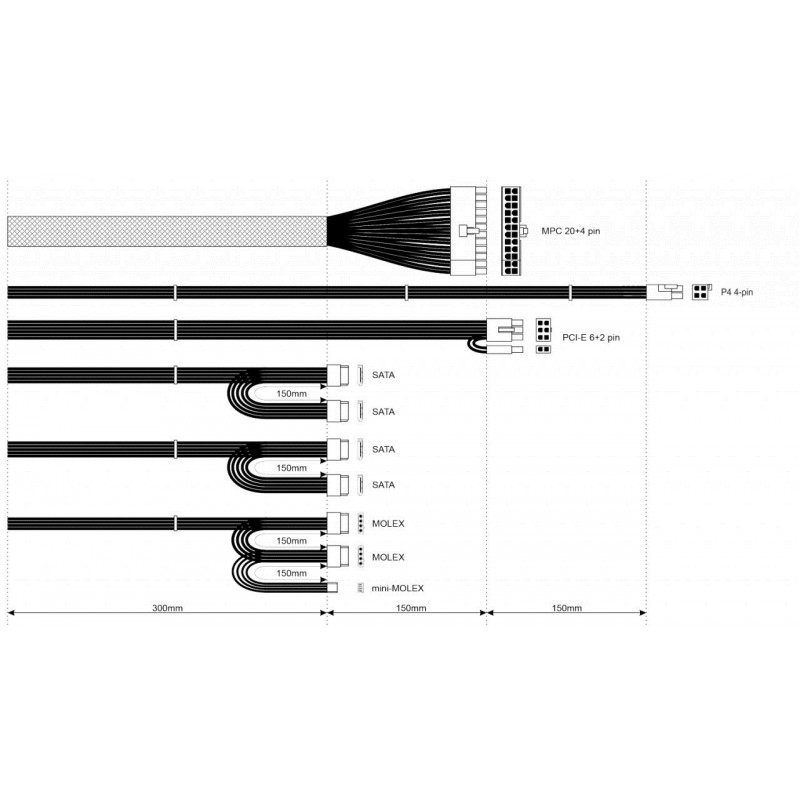

Ports & interfaces
EPS power connector (8-pin)	No
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	4
PCI Express power connectors (6+2 pin)	1
Peripheral (Molex) power connectors (4-pin)	2

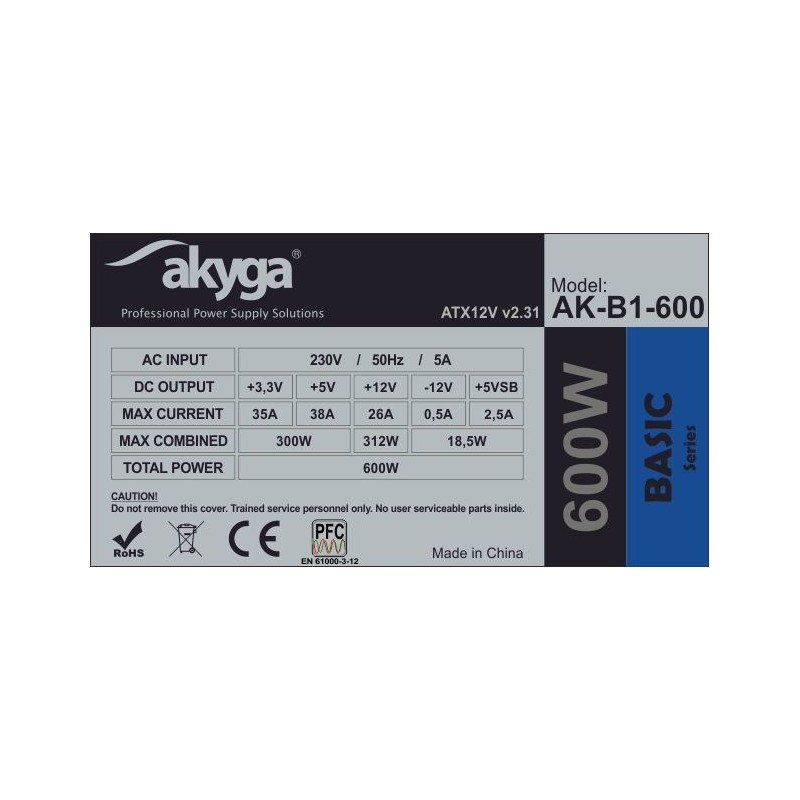

Power
AC input frequency	50 Hz
AC input voltage	230 V
Combined power (-12V)	18.5 W
Combined power (+12V)	312 W
Combined power (+3.3V)	300 W
Combined power (+5V)	300 W
Combined power (+5Vsb)	18.5 W
Efficiency	70%
Input current	5 A
Max output current (-12V)	0.5 A
Max output current (+12V)	36 A
Max output current (+3.3V)	35 A
Max output current (+5V)	38 A
Max output current (+5Vsb)	2.5 A
Power Factor Correction (PFC) type	Passive
Power protection features	Short circuit
Power protection features	Over voltage
Power protection features	Over power
Power protection features	Under voltage
Power protection features	Over current
Total power	600 W
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Depth	140 mm
Height	87 mm
Weight	1.12 kg
Width	150 mm
