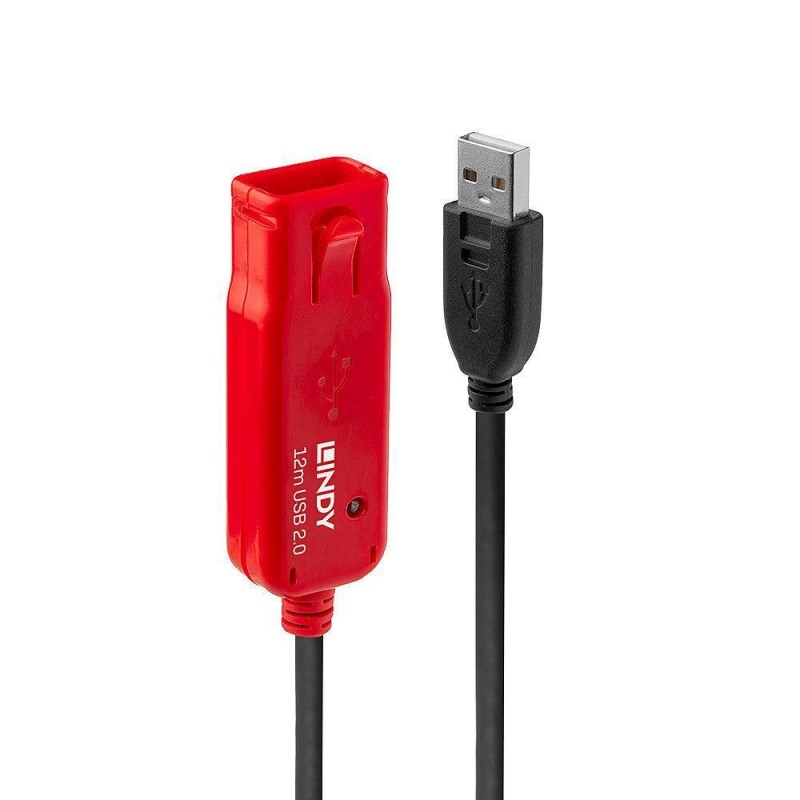

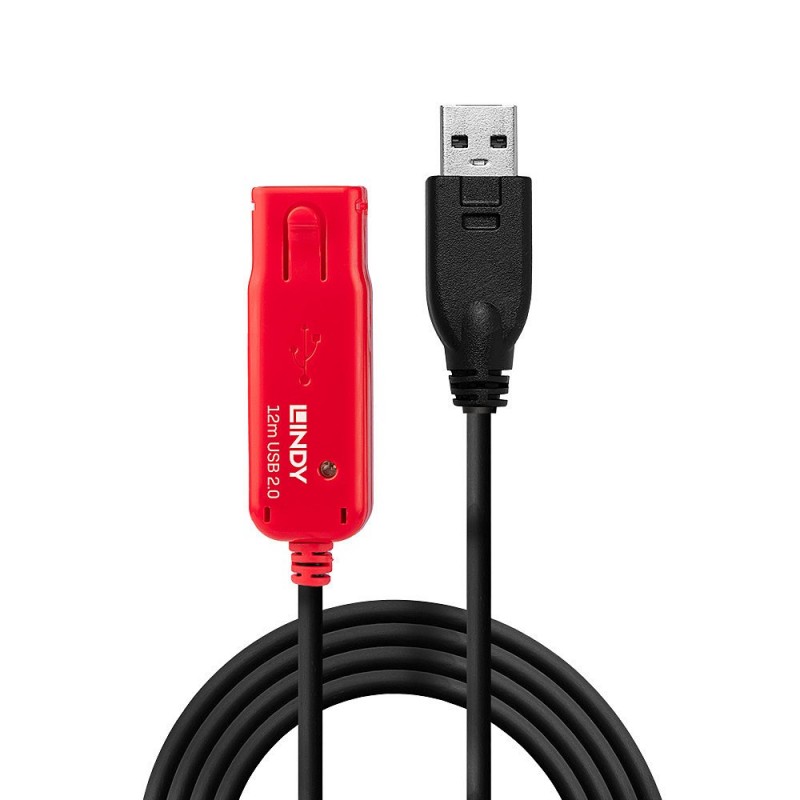

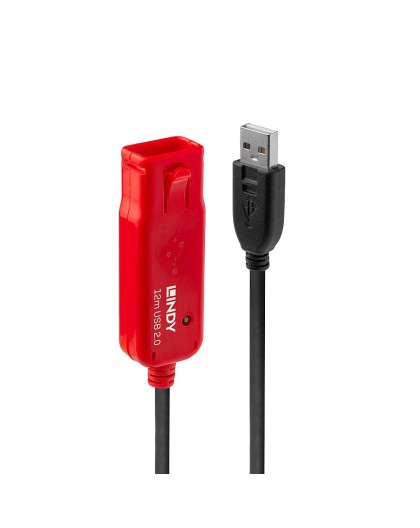

Lindy 12m USB 2.0 Active Extension Pro

Reference: 1005403

Condition: New product

14 Item Items

Shipping 2025-11-25 days

59,00 € tax incl.

Features
AWG wire size	26/20
Cable jacket material	Polyvinyl chloride (PVC)
Cable type	Round cable
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Conductor material	Tinned copper
Connector 1	USB A
Connector 1 form factor	Straight
Connector 1 gender	Male
Connector 2	USB A
Connector 2 form factor	Straight
Connector 2 gender	Female
Connector contacts plating	Gold
Connector housing material	Plastic
Connector material	Gold/Nickel
Connector shield material	Aluminium
Contact material	Brass
Maximum data transfer rate	480 Mbit/s
Maximum data transfer rate	0.48 Gbit/s
Nominal attenuation	0.064 MHz, -0.08 dB 0.256MHz, -0.11 dB 0.512MHz, -0.13 dB 0.772 MHz, -0.15 dB 1 MHz, -0.2 dB 4 MHz, -0.39 dB 8 MHz, -0.57 dB 12 MHz, -0.76 dB 24 MHz, -0.95 dB 48 MHz, -1.35dB 96 MHz, -1.9 dB 200 MHz, -3.2 dB 400 MHz, -5.8 dB
Product colour	Black
Transmission medium	Twisted pair
USB version	USB 2.0
Logistics data
Harmonized System (HS) code	84733080
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Other features
Compatible operating systems	Win ME, 2000, XP, Vista Mac OS Linux
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package depth	202 mm
Package height	66 mm
Package type	Box
Package weight	597 g
Package width	238 mm
Weight & dimensions
Bend radius (min)	2.6 cm
Cable diameter	5 mm
Cable length	12 m
Connector 1 dimensions (WxDxH)	15 x 43 x 8 mm
Connector 2 dimensions (WxDxH)	20 x 64 x 13 mm
Weight	420 g
