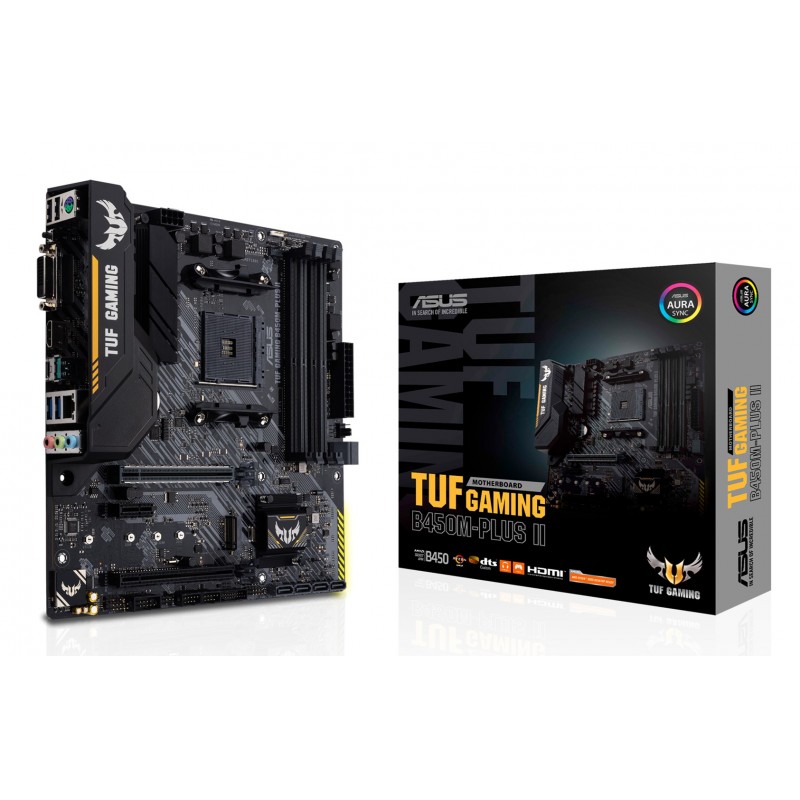

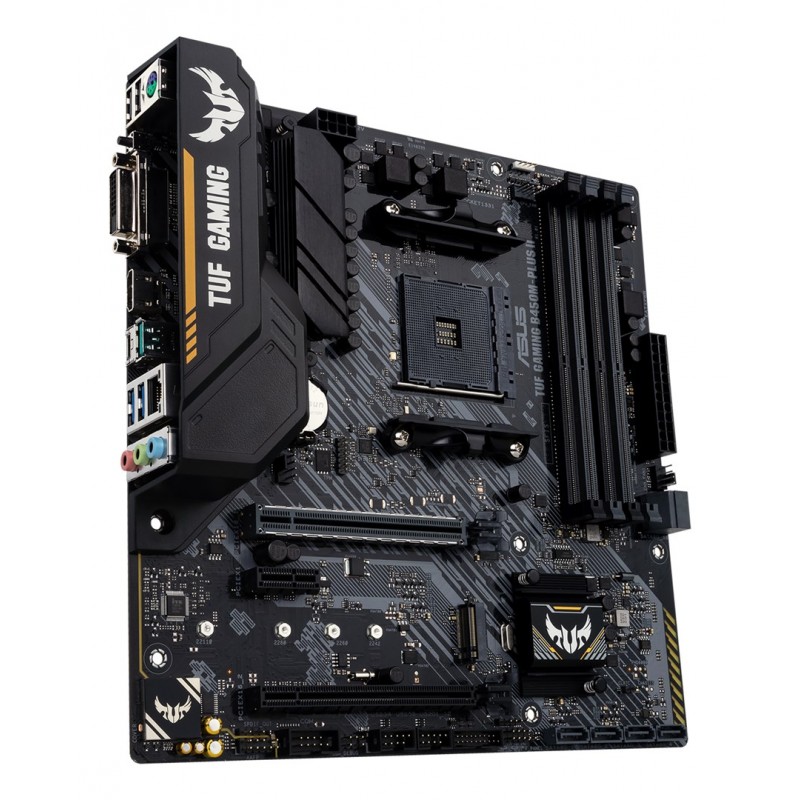

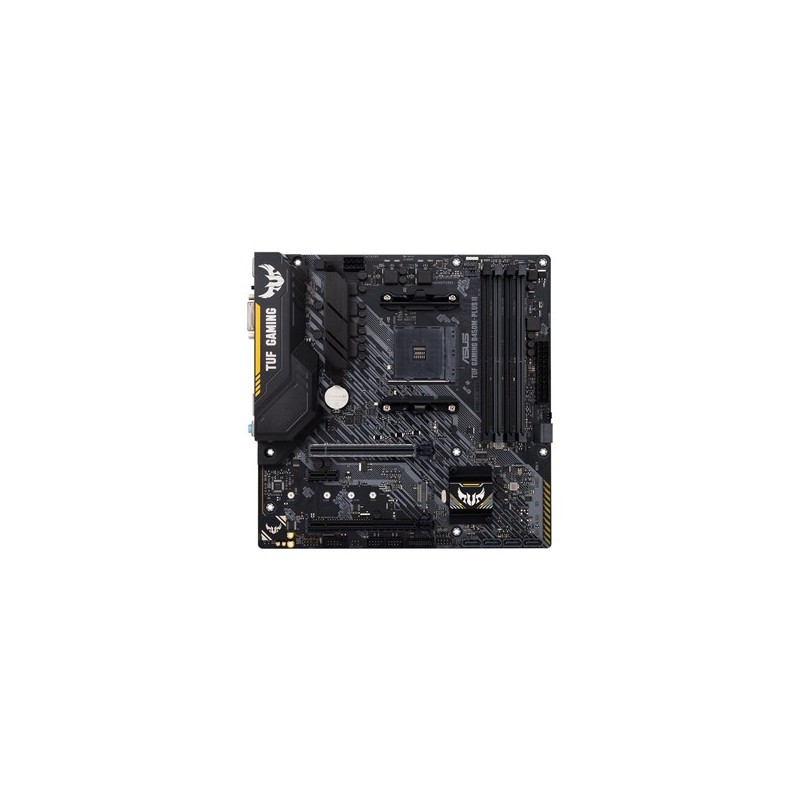

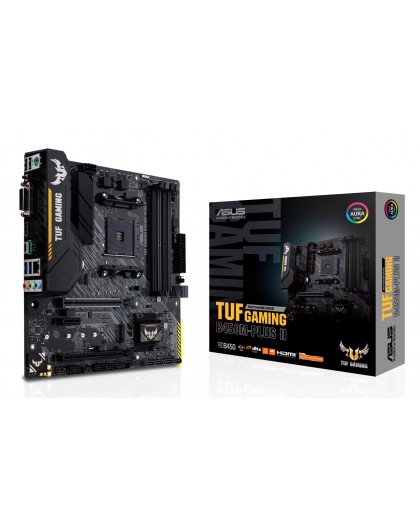

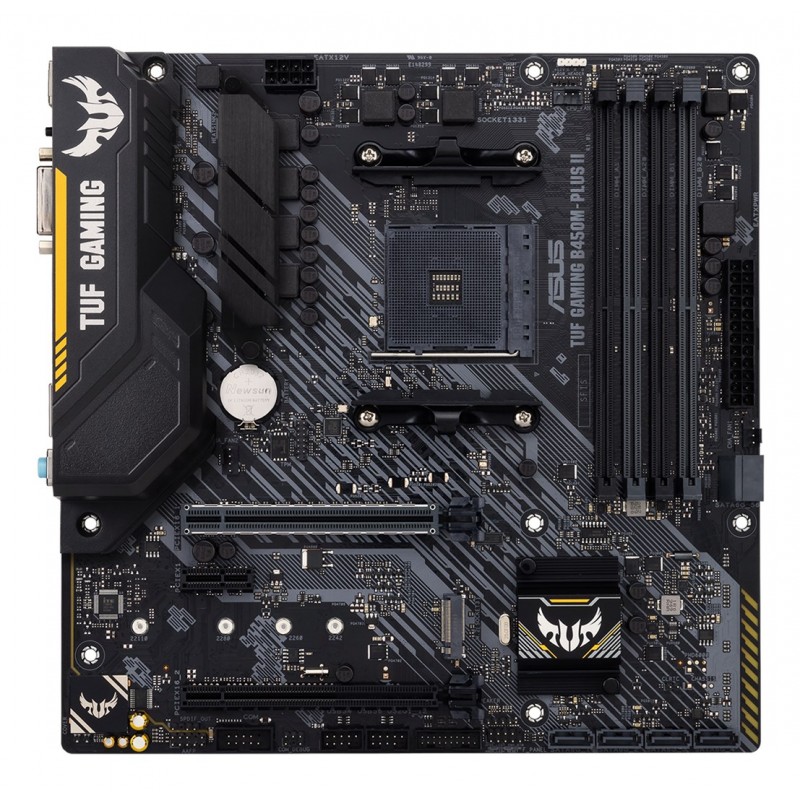

ASUS TUF Gaming B450M-Plus II AMD B450 Socket AM4 micro ATX
90MB1620-M0EAY0
New product
6 Items
Shipping 2025-11-20 days
119,00 € tax incl.
| BIOS | |
| BIOS type | UEFI AMI |
| Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 3 |
| Features | |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B450 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 7 x64 |
| Windows operating systems supported | Windows 10 x64 |
| Internal I/O | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 6 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| ECC сompatibility | ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 3400 |
| Supported memory clock speeds | 3866 |
| Supported memory clock speeds | 3466 |
| Supported memory clock speeds | 3533 |
| Supported memory clock speeds | 4000 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| Supported memory clock speeds | 3733 |
| Supported memory clock speeds | 4400 MHz |
| Supported memory clock speeds | 3600 |
| Supported memory clock speeds | 3000 |
| Supported memory clock speeds | 3200 MHz |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 2133 |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Other features | |
| Weight | 849 g |

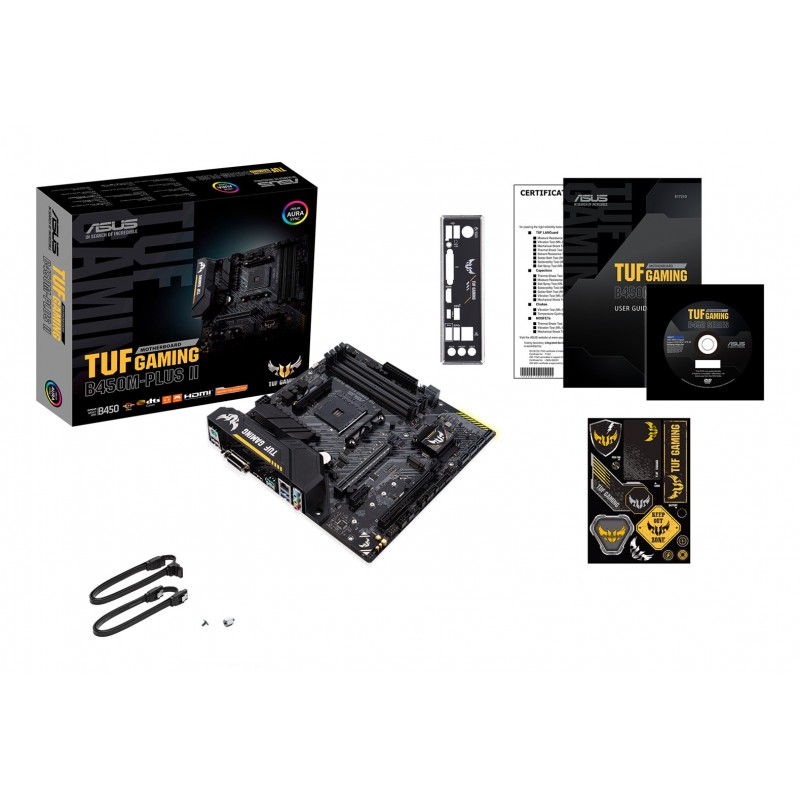

| Packaging content | |
| Bundled software | Armoury Crate, Aura Creator, Aura Sync, AI Noise-Canceling Microphone, AI Suite 3, Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, EZ update, PC Cleaner, TUF GAMING, CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Cust |
| Cables included | SATA |
| Processor | |
| Compatible processor series | AMD Ryzen 3000 Series |
| Compatible processor series | AMD Ryzen Threadripper PRO 3000 WX-Series |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |
| Compatible processor series | AMD Ryzen 2000 Series |
| Compatible processor series | AMD Ryzen Threadripper 2000 Series |
| Compatible processor series | AMD Ryzen Threadripper 3000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Rear panel I/O ports | |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Safety warning | |
| Warnings | Avoid direct contact with sensitive electronic components. |
| Warnings | Dispose of according to local electro-waste regulations. |
| Warnings | Store away from water and sources of moisture. |
| Storage controllers | |
| Number of storage drives supported | 7 |
| RAID levels | 1 |
| RAID levels | 10 |
| Supported storage drive interfaces | M.2, SATA, SATA II, SATA III |
| Weight & dimensions | |
| Depth | 244 mm |
| Height | 259 mm |
| Width | 244 mm |
