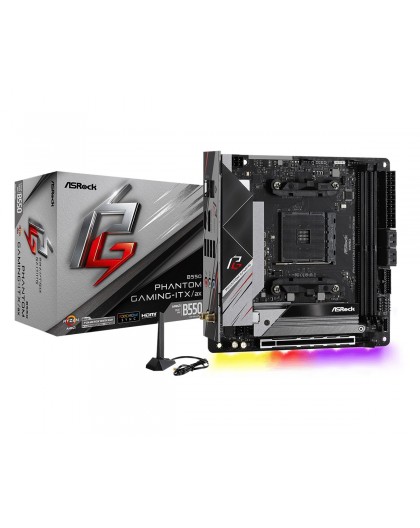

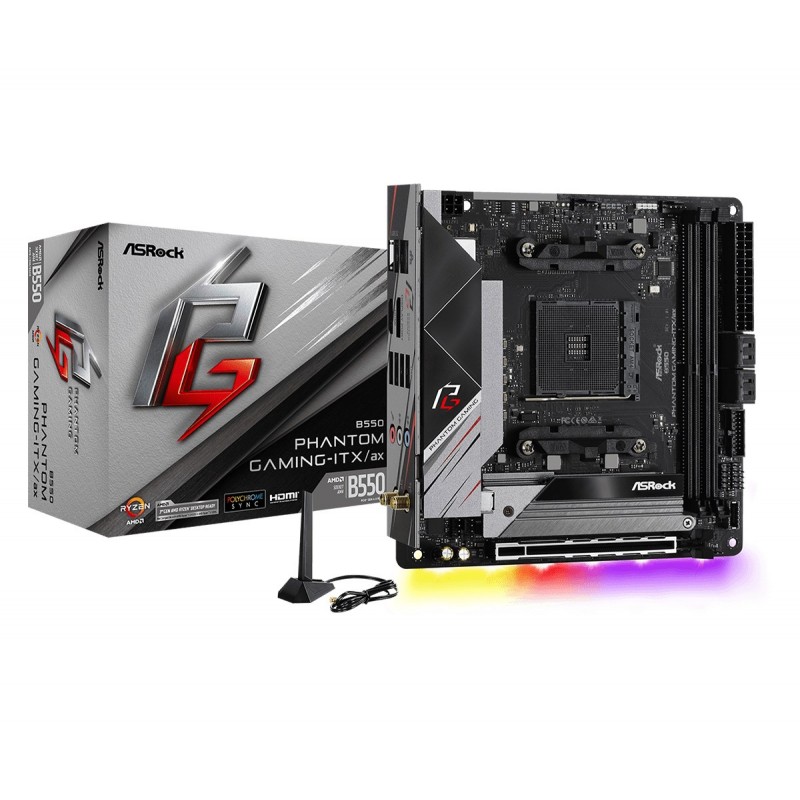

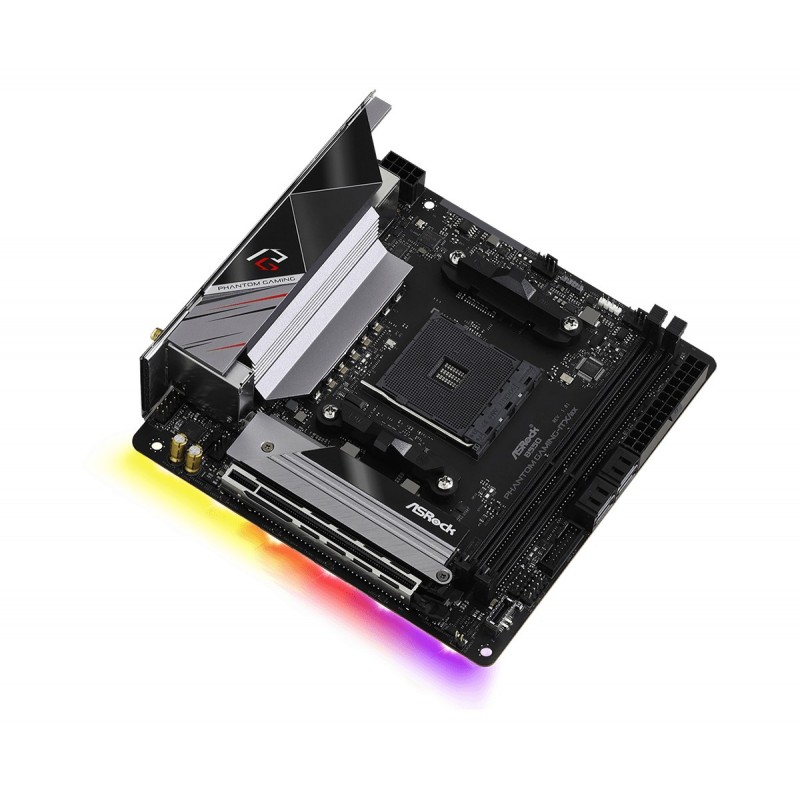

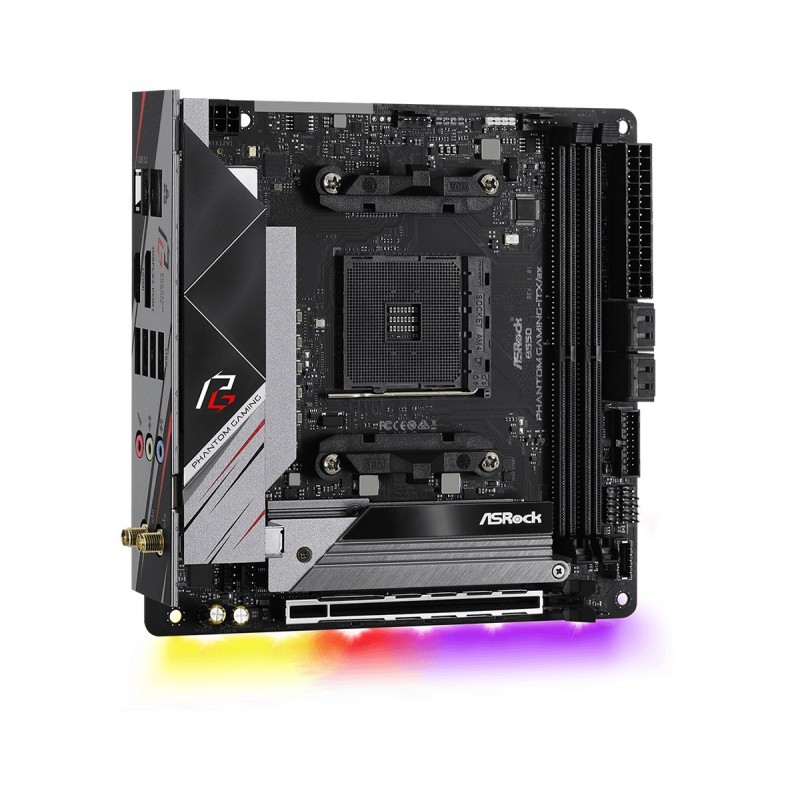

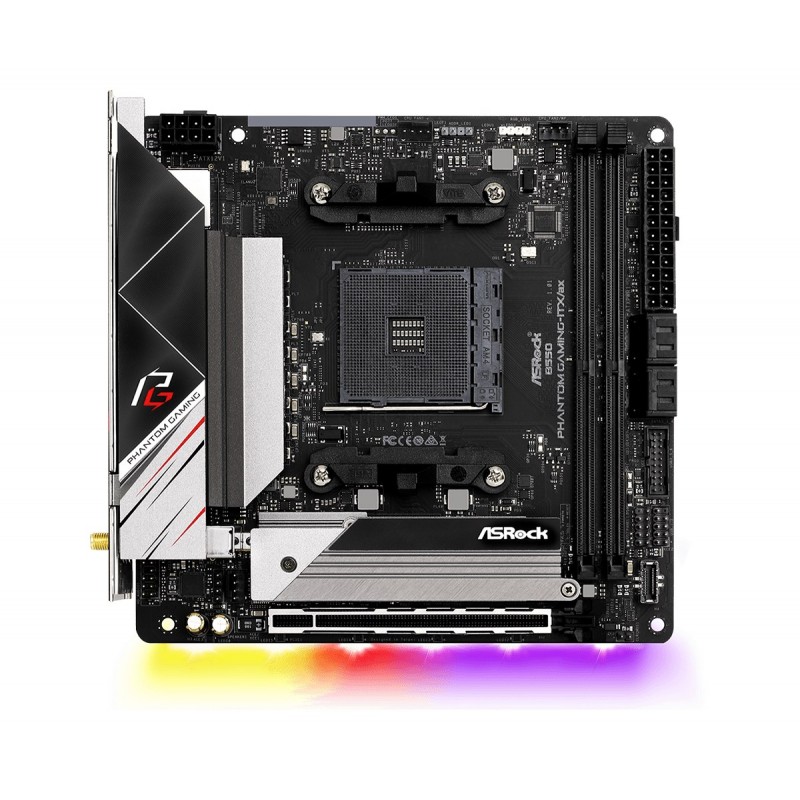

Asrock B550 Phantom Gaming-ITX/a Socket AM4 mini ITX AMD B550
B550PHANTOMGAMING-ITX/AX
New product
2 Items
Shipping 2025-11-14 days
Warning: Last items in stock!
199,00 € tax incl.
| BIOS | |
| BIOS type | UEFI AMI |
| Features | |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | mini ITX |
| Graphics | |
| DirectX version | 12.0 |
| Graphics card | Radeon Vega |
| Graphics card family | AMD |
| HDCP | Yes |
| On-board graphics card | Yes |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Memory | |
| Maximum internal memory | 64 GB |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 4466 |
| Supported memory clock speeds | 4866 |
| Supported memory clock speeds | 4733 MHz |
| Supported memory clock speeds | 4533 |
| Supported memory clock speeds | 4666 MHz |
| Supported memory clock speeds | 5000 |
| Supported memory clock speeds | 4800 |
| Supported memory clock speeds | 4933 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 4266 |
| Supported memory clock speeds | 2667 |
| Supported memory clock speeds | 3733 |
| Supported memory clock speeds | 4400 |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 3600 |
| Supported memory clock speeds | 3866 |
| Supported memory clock speeds | 4333 |
| Supported memory clock speeds | 4600 |
| Supported memory clock speeds | 4133 |
| Supported memory clock speeds | 4000 |
| Supported memory clock speeds | 2133 |
| Supported memory clock speeds | 4200 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 3466 |
| Supported memory clock speeds | 3800 |
| Supported memory types | DDR4-SDRAM |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | 802.11b |
| Packaging content | |
| Drivers included | Yes |
| Processor | |
| Compatible processor series | 3rd Generation AMD Ryzen™ 9 |
| Compatible processor series | 3rd Generation AMD Ryzen 5 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 7 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |

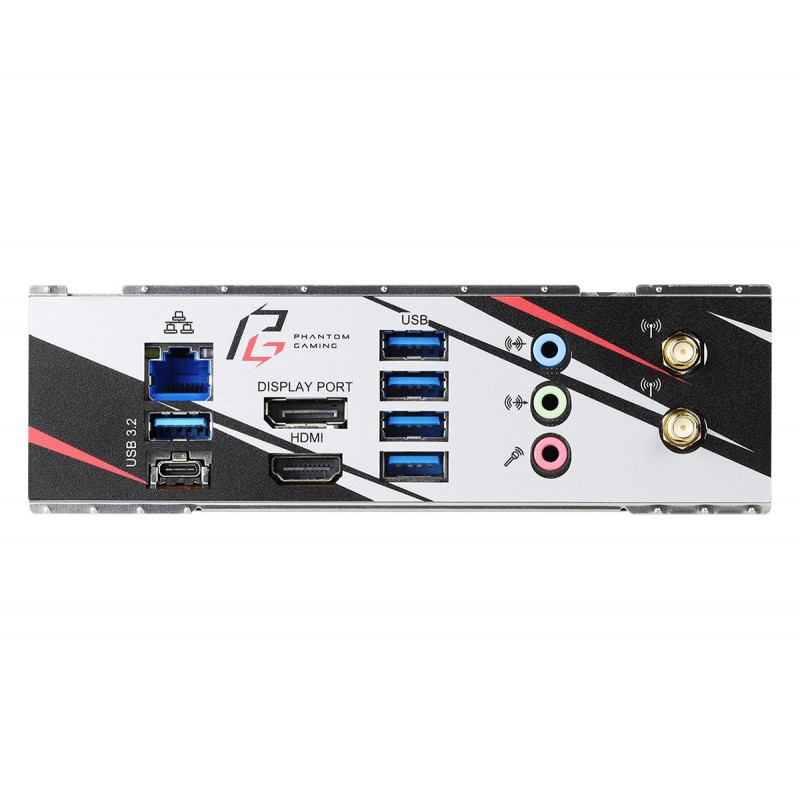

| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI-I ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Safety warning | |
| Warnings | Avoid direct contact with sensitive electronic components. |
| Warnings | Dispose of according to local electro-waste regulations. |
| Warnings | Store away from water and sources of moisture. |
| Storage controllers | |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Weight & dimensions | |
| Depth | 170 mm |
| Width | 170 mm |
