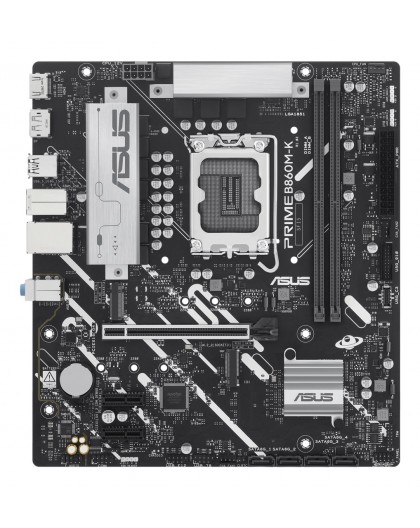

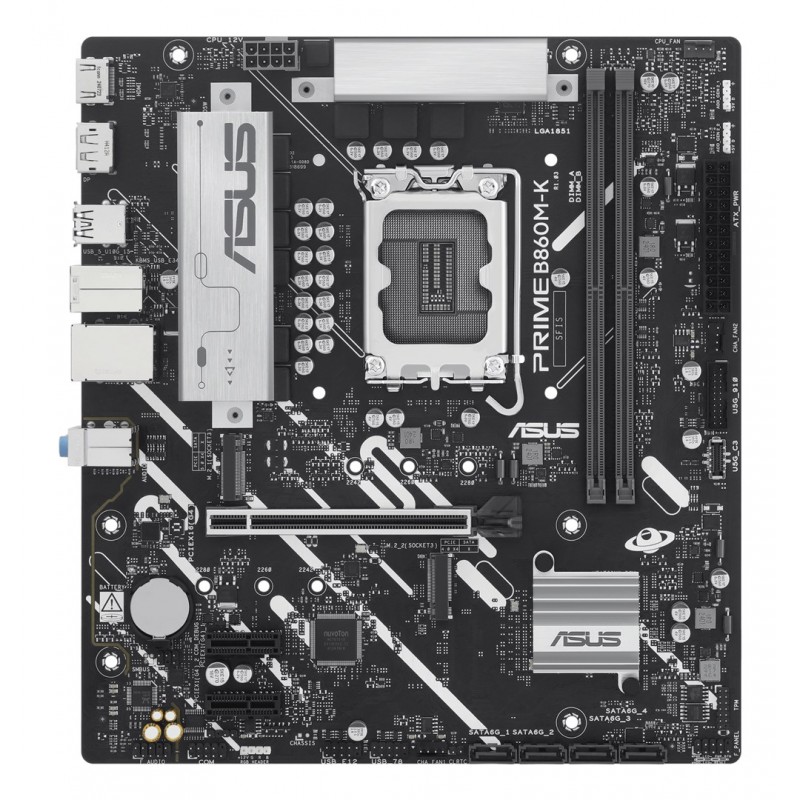

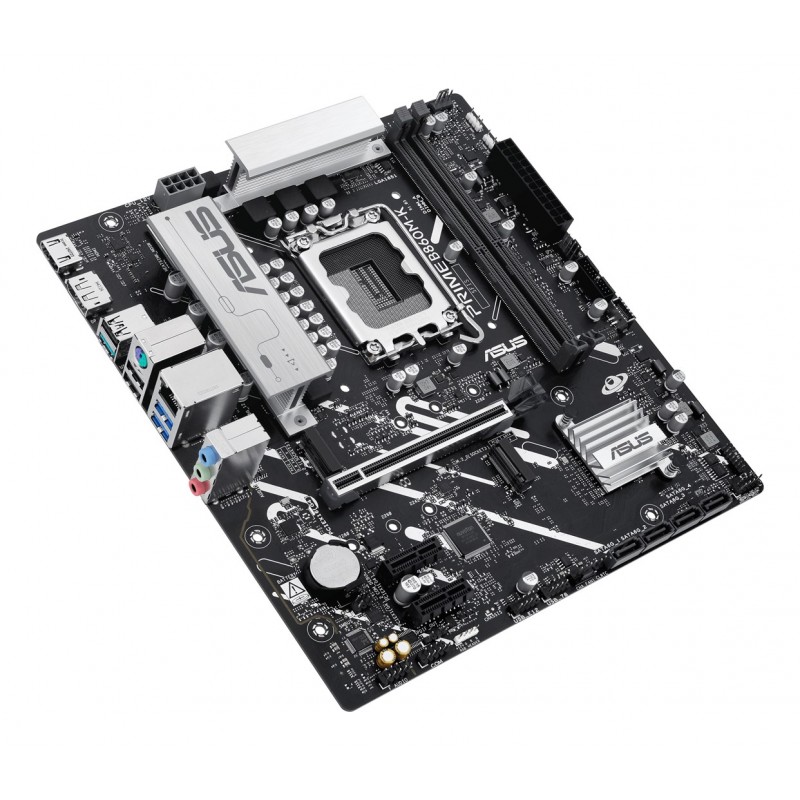

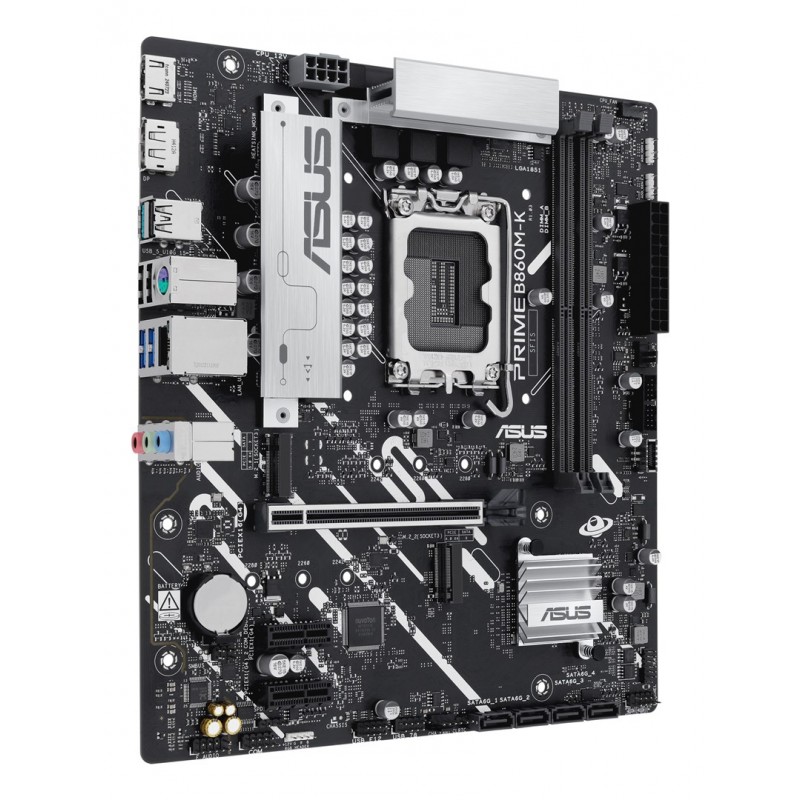

Home / ///ASUS PRIME B860M-K Intel B860 LGA 1851 (Socket V1) micro ATX
New ASUS PRIME B860M-K Intel B860 LGA 1851 (Socket V1) micro ATX

ASUS PRIME B860M-K Intel B860 LGA 1851 (Socket V1) micro ATX

ASUS

90MB1JT0-M0EAY0

New product

3 Items

Shipping 2025-11-14 days

Warning: Last items in stock!

169,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Expansion slots
1st M.2 highest PCI Express generation5.0
1st M.2 largest key size2280
2nd M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
Number of M.2 (M) slots2
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
Features
Audio output channels7.1 channels
Motherboard chipsetIntel B860
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11
Graphics
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Front panel audio connectorYes
Front panel connectorYes
Number of chassis fan connectors2
Number of COM connectors1
Number of SATA III connectors4
RGB LED pin headerYes
S/PDIF out connectorYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Memory
ECC сompatibilityNon-ECC
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiNo
Packaging content
Cables includedSATA III 2 pcs.
Processor
Compatible processor seriesIntel Core Ultra (Series 2)
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Supported processor socketsLGA 1851

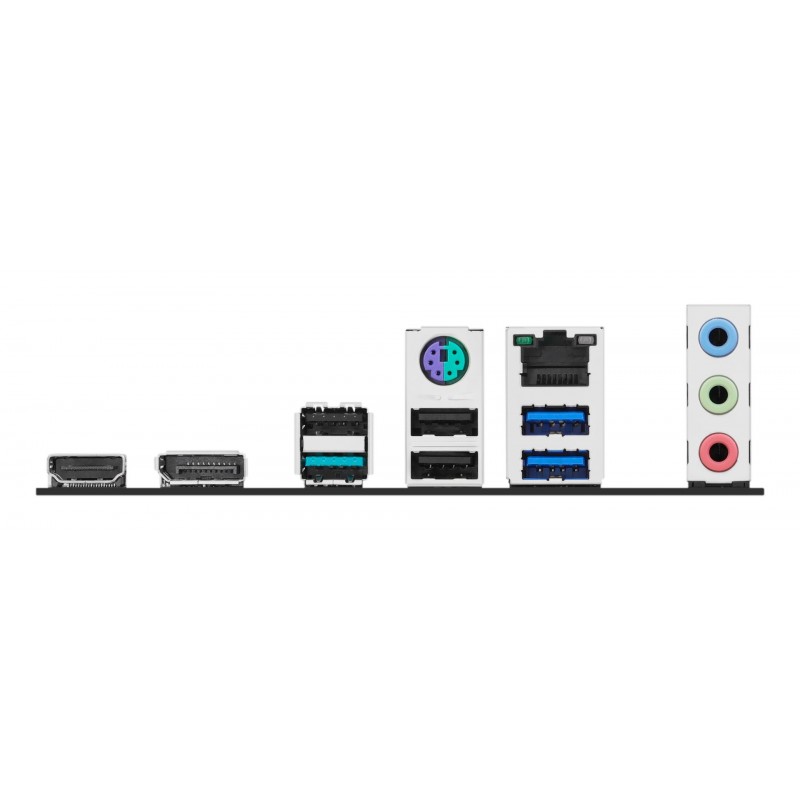

Rear panel I/O ports
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Number of audio jack connectors3
PS/2 ports quantity1
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
Safety warning
WarningsWhen disposing of the product, follow local regulations for the recycling of electronics.
WarningsDo not open or modify the motherboard to prevent damage.
WarningsIn case of installation problems, contact a qualified service technician.
Storage controllers
Number of HDDs supported4
Number of M.2 (M) slots2
Number of storage drives supported6
RAID levels1
RAID levels10
RAID levels5
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth222 mm
Width244 mm
