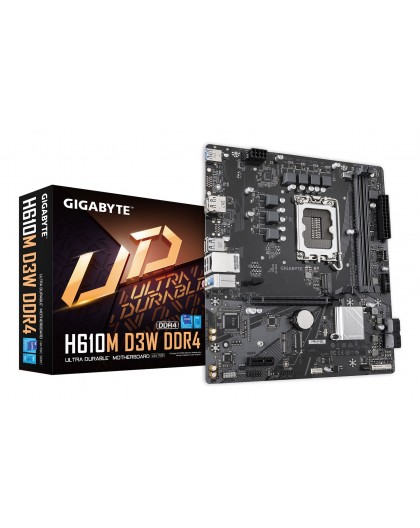

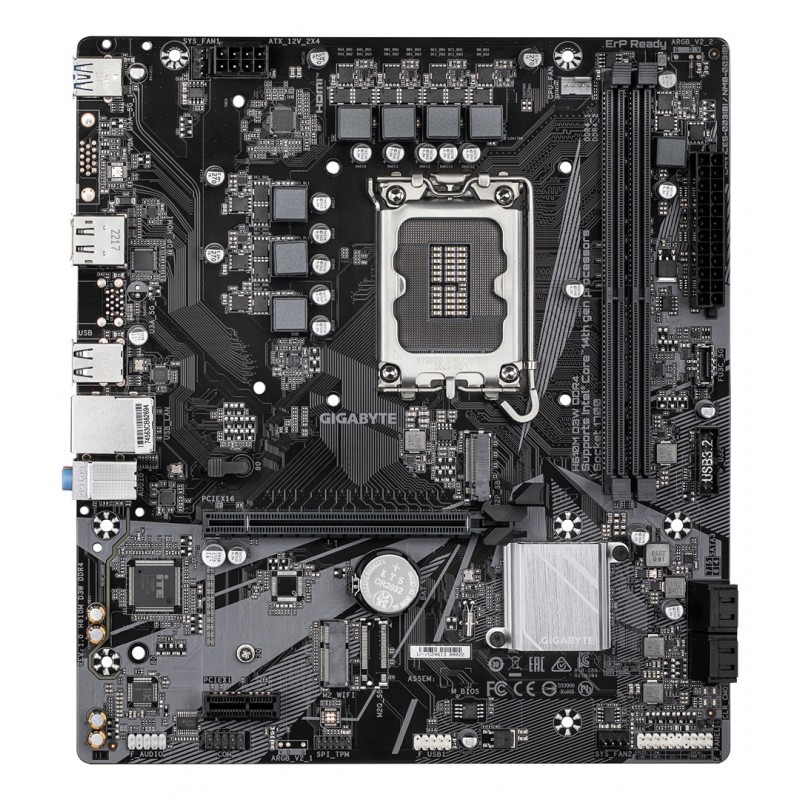

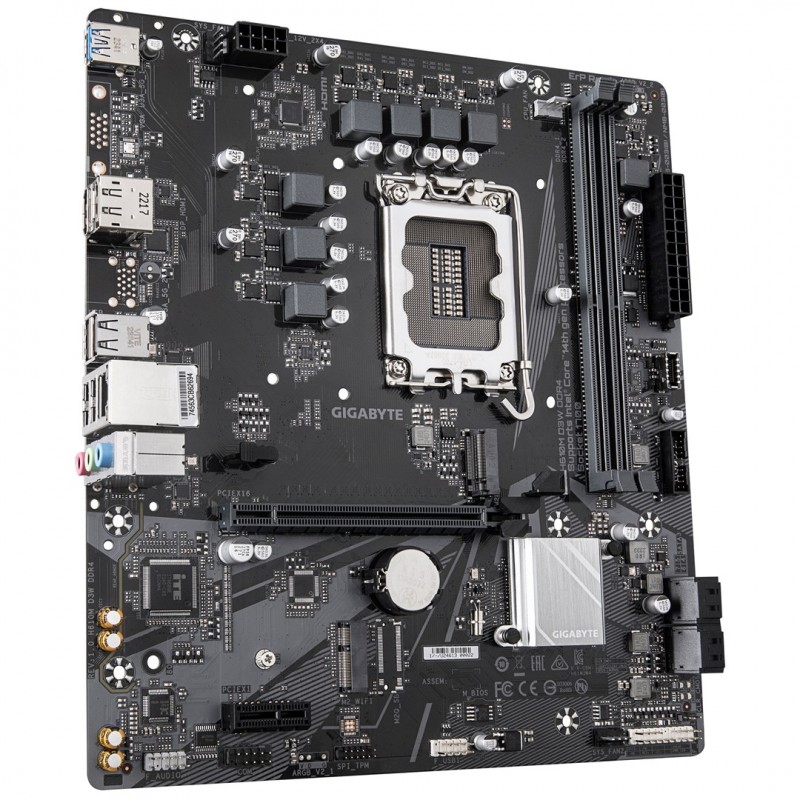

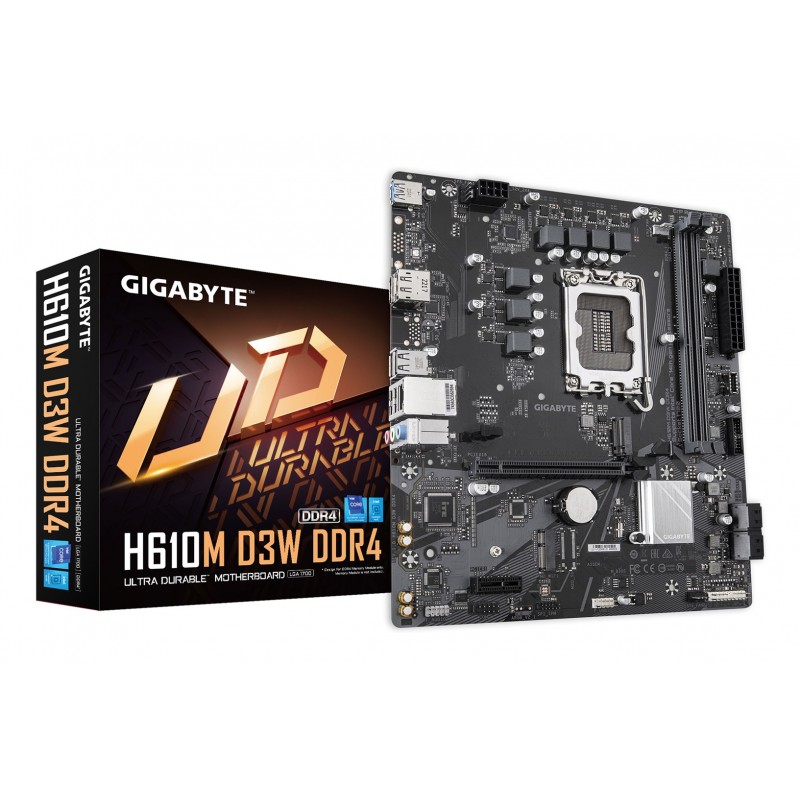

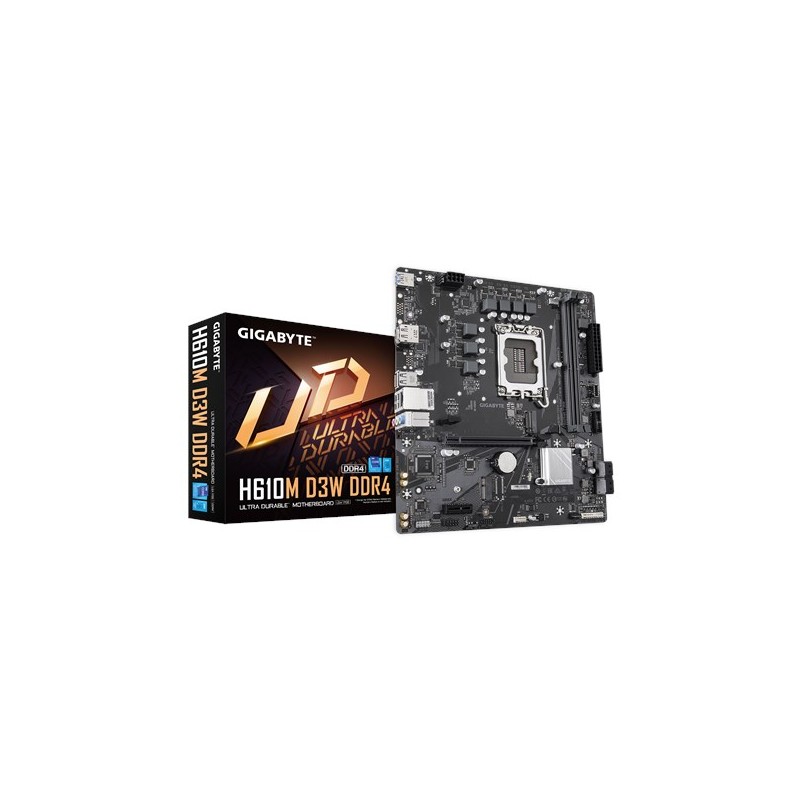

GIGABYTE H610M D3W DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 5+1+1 phases VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2,
44368885
New product
7 Items
Shipping 2025-11-24 days
99,00 € tax incl.
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| BIOS | |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Expansion slots | |
| 1st M.2 highest PCI Express generation | 3.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Features | |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel H610 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan |
| PC health monitoring | Voltage |
| PC health monitoring | Temperature |
| PC health monitoring | Water cooling |
| Power source type | ATX |
| Product colour | Grey |
| Windows operating systems supported | Windows 10 |
| Windows operating systems supported | Windows 11 |
| Graphics | |
| DirectX version | 12.0 |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of SATA III connectors | 4 |
| Serial port headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 64 GB |
| Maximum internal memory per slot | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 3000 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2133 |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Other features | |
| Weight | 770 g |
| Packaging content | |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Screws included | Yes |
| Packaging data | |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 800 g |
| Package width | 265 mm |
| Processor | |
| Compatible processor series | Intel Core i3 12th Gen |
| Compatible processor series | Intel Core i9 14th Gen |
| Compatible processor series | Intel Core i7 12th Gen |
| Compatible processor series | Intel Core i5 14th Gen |
| Compatible processor series | Intel Core i5 12th Gen |
| Compatible processor series | Intel Core i7 14th Gen |
| Compatible processor series | Intel Core i7 13th Gen |
| Compatible processor series | Intel® Pentium® |
| Compatible processor series | Intel Core i3 13th Gen |
| Compatible processor series | Intel Core i9 13th Gen |
| Compatible processor series | Intel® Celeron® |
| Compatible processor series | Intel Core i3 14th Gen |
| Compatible processor series | Intel Core i5 13th Gen |
| Compatible processor series | Intel Core i9 12th Gen |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |

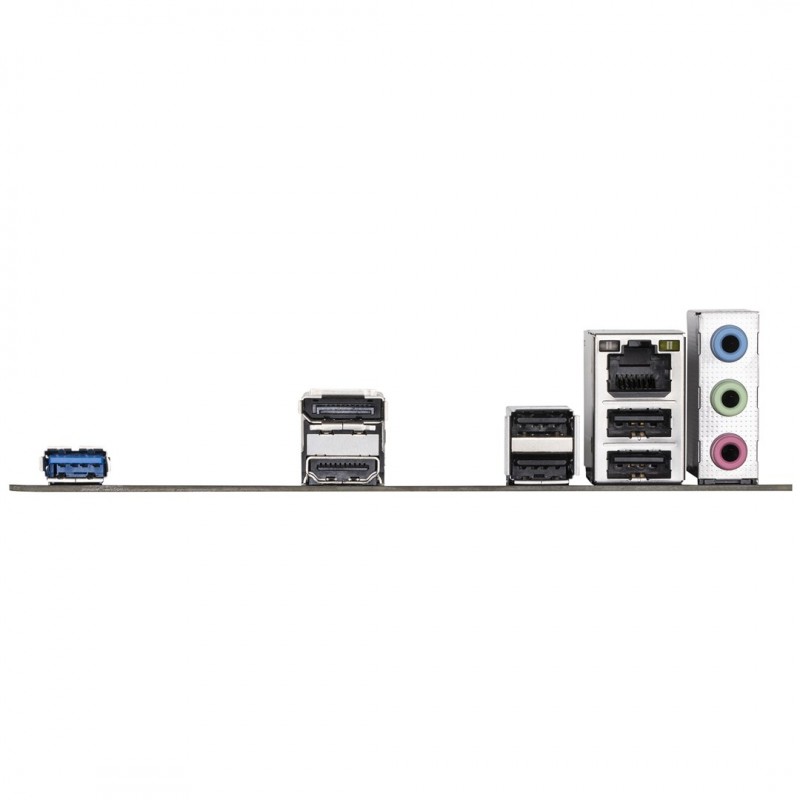

| Rear panel I/O ports | |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Line-in | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Depth | 220 mm |
| Height | 35 mm |
| Width | 244 mm |
