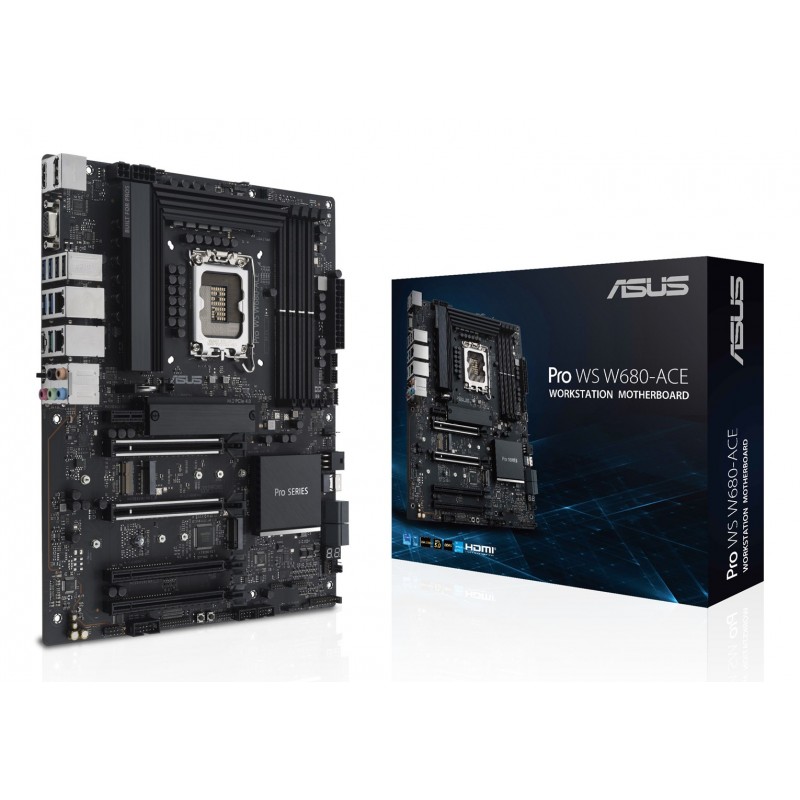

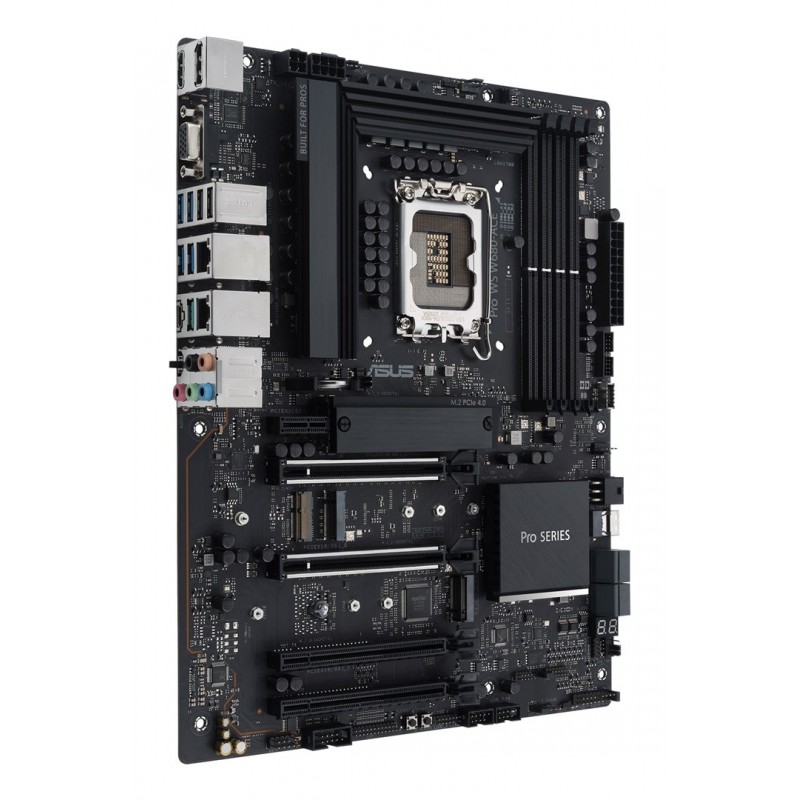

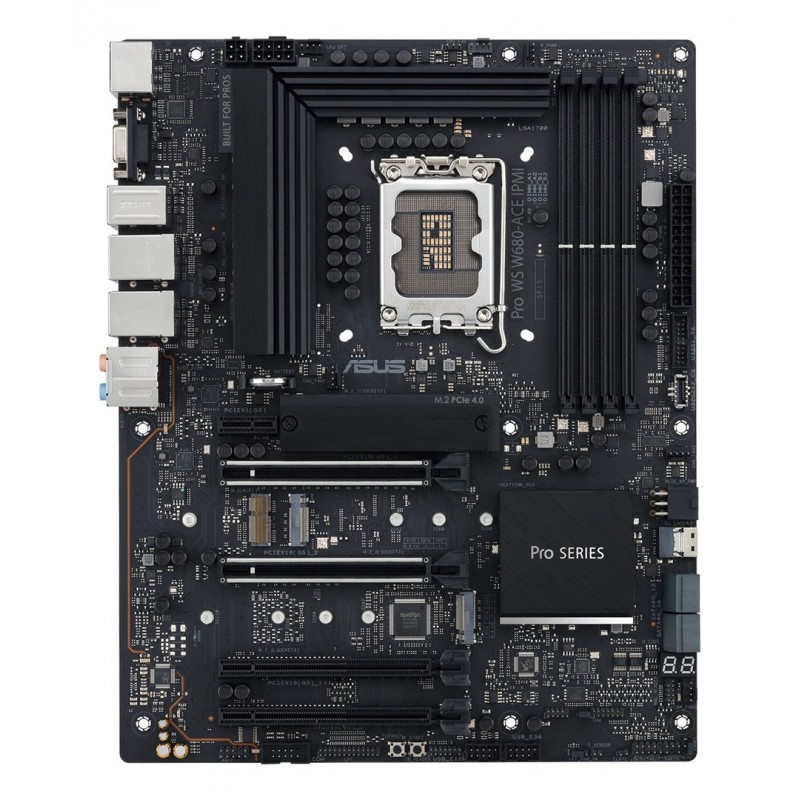

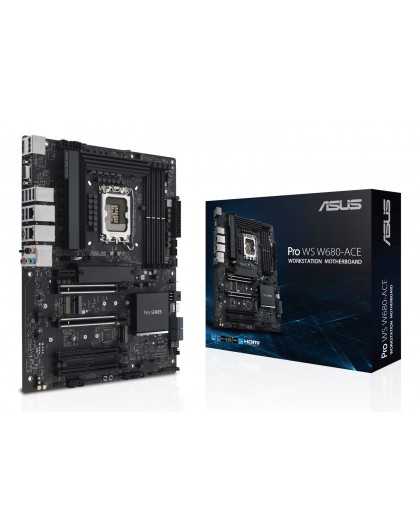

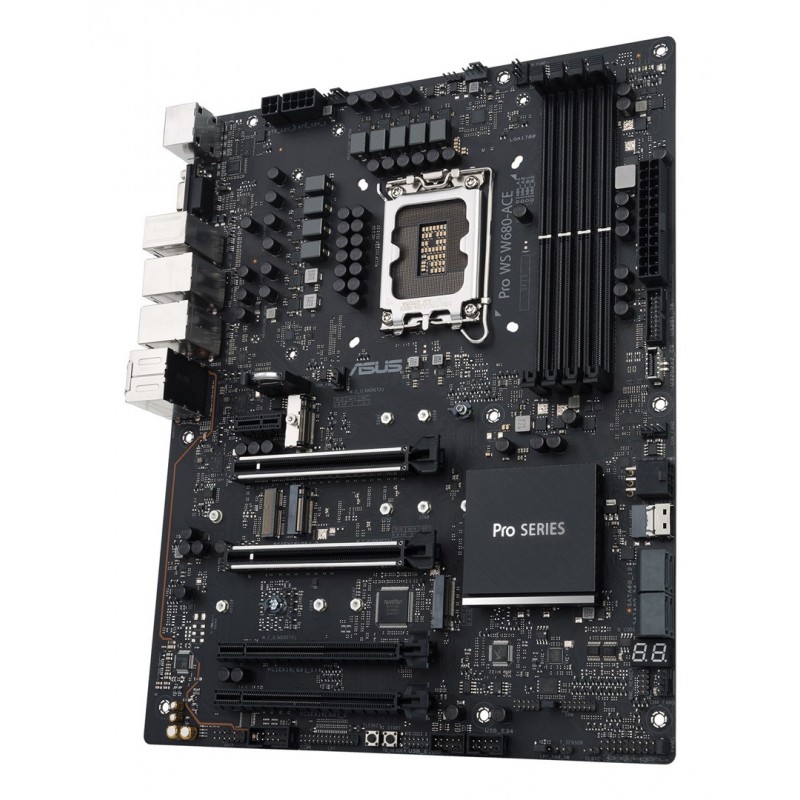

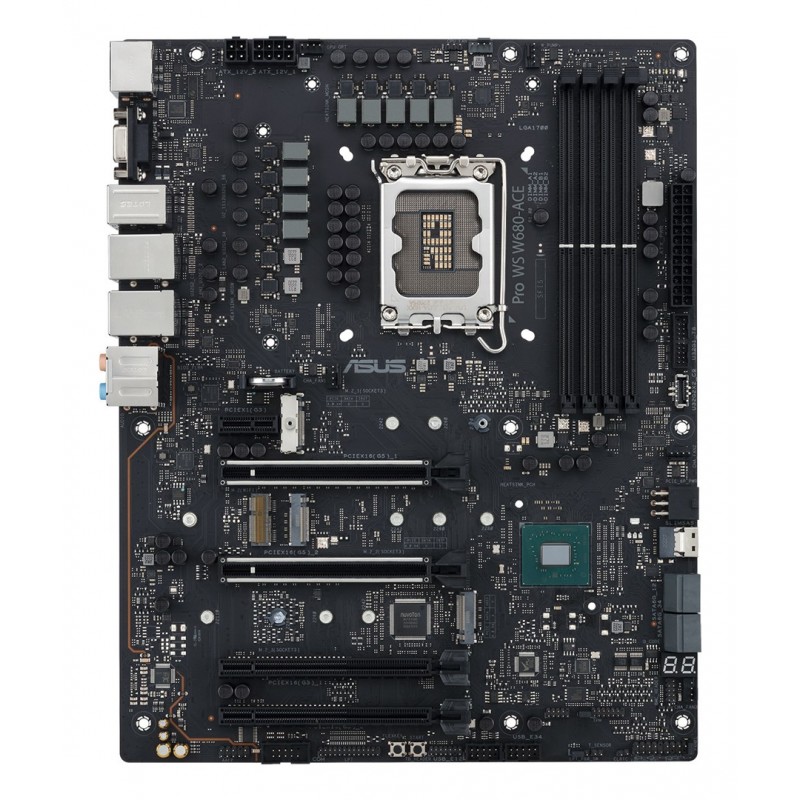

New ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX motherboard

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX motherboard

ASUS

90MB1DZ0-M0EAY0

New product

9 Items

Shipping 0001-01-05 days

499,00 € tax incl.

BIOS
BIOS memory size256 Mbit
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots3
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
Features
Audio output channels7.1 channels
Component forPC
Cooling typePassive
Motherboard chipsetIntel W680
Motherboard chipset familyIntel
Motherboard form factorATX
Power source typeATX
Product colourBlack
Windows operating systems supportedWindows 10 x64
Windows operating systems supportedWindows 11
Graphics
On-board graphics cardNo
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Integrated SAS ports1
Number of chassis fan connectors3
Number of COM connectors1
Number of SATA III connectors4
Peripheral (Molex) power connectors (4-pin)1
Thunderbolt headers1
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityECC & Non-ECC
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiNo
Other features
Back-to-BIOS buttonYes
Number of M.2 (E) slots1
Weight997 g
Packaging content
Cables includedSATA
User guideYes
Packaging data
Package depth266 mm
Package height76 mm
Package weight1.18 kg
Package width331 mm
Processor
Compatible processor seriesIntel® Core™ i5
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Pentium® Gold
Compatible processor seriesIntel® Celeron®
Maximum number of SMP processors1
Processor manufacturerIntel
Processor socketLGA 1700
Supported processor socketsLGA 1700
Rear panel I/O ports
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports2
HDMI ports quantity1
HDMI version2.1
Line-inYes
Microphone inYes
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
VGA (D-Sub) ports quantity1
Safety warning
WarningsThe product contains electrical components - take care during installation to avoid injury.
WarningsAvoid contact with liquids and moisture to prevent damage to equipment.
WarningsAdjust adequate ventilation to avoid overheating and potential damage.
Storage controllers
Number of HDDs supported8
Number of storage drives supported11
RAID levels1
RAID levels10
RAID levels5
RAID supportYes
Supported storage drive interfacesM.2, NVMe, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Height50 mm
Width305 mm
