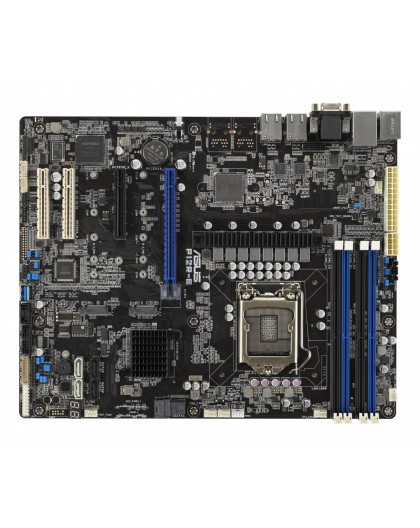

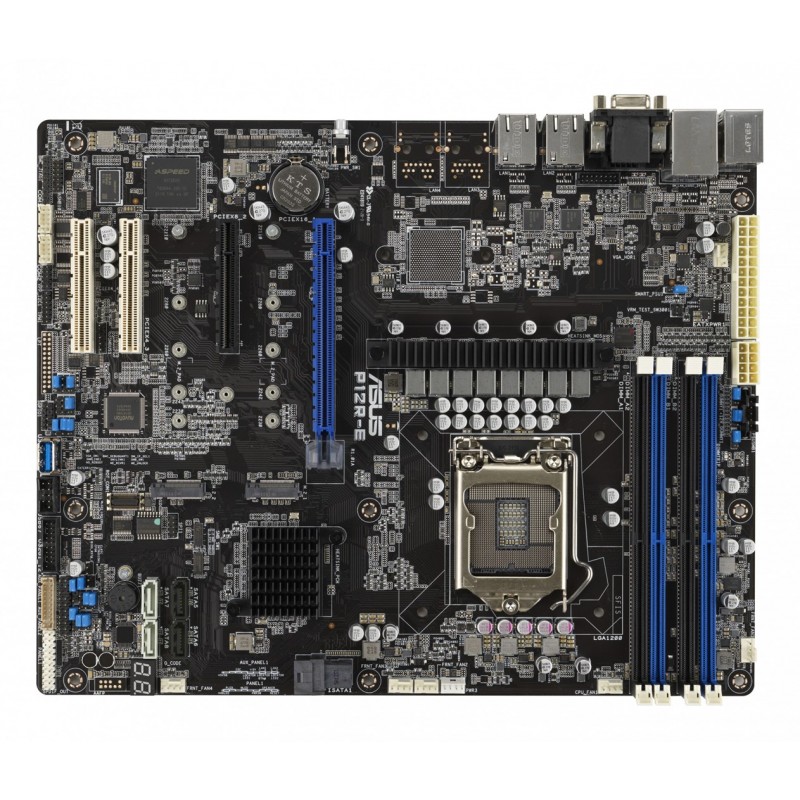

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX server motherboard
90SB0A90-M0UAY0
New product
20 Items
Shipping 0001-01-05 days
389,00 € tax incl.
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Features | |
| Component for | Server |
| Motherboard chipset | Intel C256 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| PC health monitoring | CPU |
| PC health monitoring | Fan |
| Graphics | |
| Graphics card family | ASPEED |
| On-board graphics card | Yes |
| On-board graphics card memory | 64 MB |
| On-board graphics card model | Aspeed AST2600 |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 8 |
| Power fan connector | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 2666 |
| Supported memory module capacities | 16GB |
| Supported memory module capacities | 32GB |
| Supported memory module capacities | 8GB |
| Supported memory types | DDR4-SDRAM |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| Weight | 800 g |
| Packaging data | |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.5 kg |
| Package width | 341 mm |
| Processor | |
| Compatible processor series | Intel Xeon E |
| Compatible processor series | Intel® Pentium® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |

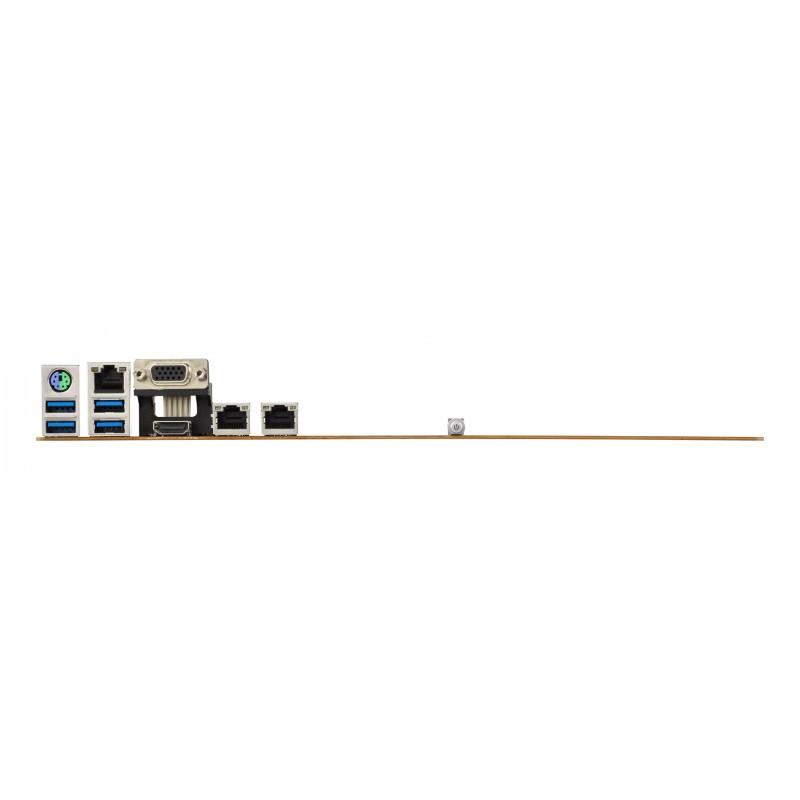

| Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Safety warning | |
| Warnings | The product contains electrical components - take care during installation to avoid injury. |
| Warnings | Avoid contact with liquids and moisture to prevent damage to equipment. |
| Warnings | Adjust adequate ventilation to avoid overheating and potential damage. |
| Storage controllers | |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 244 mm |
| Height | 68 mm |
| Width | 305 mm |
