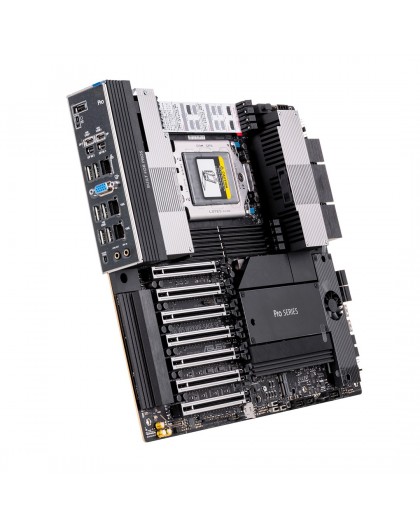

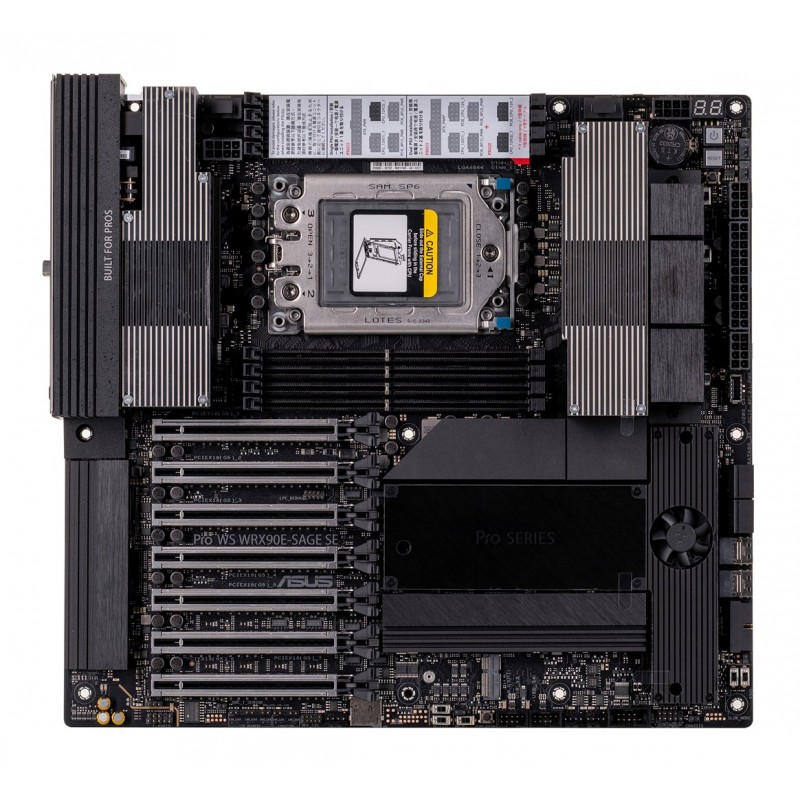

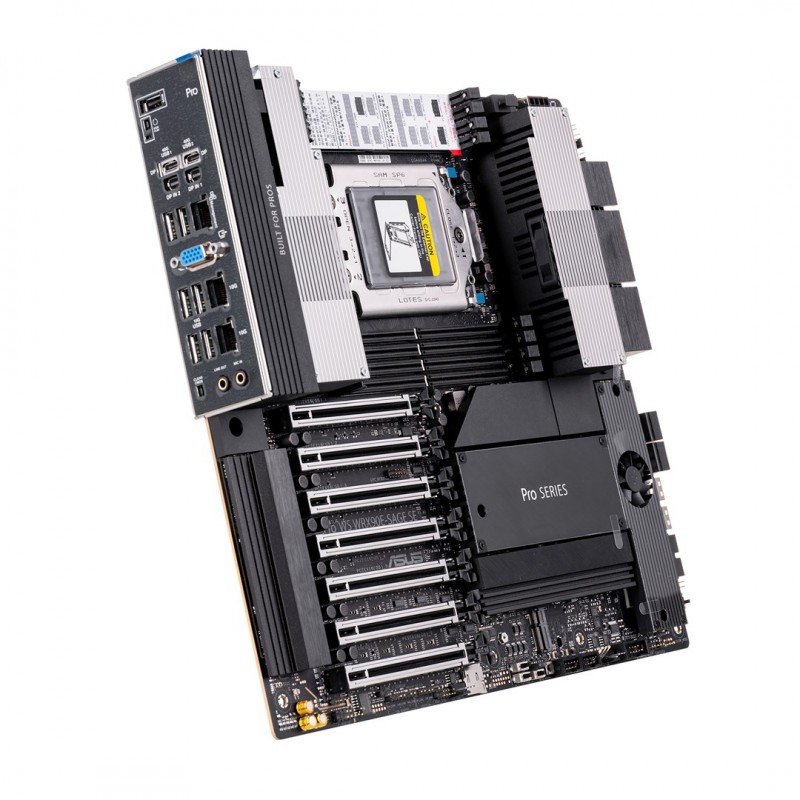

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB motherboard for workstations
90MB1FW0-M0EAY0
New product
10 Items
Shipping 2025-11-14 days
1 429,00 € tax incl.
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Features | |
| Audio chip | Realtek ALC1220P |
| Component for | Workstation |
| Motherboard chipset | AMD WRX90 |
| Motherboard chipset family | AMD |
| Motherboard form factor | EEB |
| Windows operating systems supported | Windows 10 x64 |
| Windows operating systems supported | Windows 11 |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 5 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Memory | |
| ECC | Yes |
| Memory channels | Octa-channel |
| Memory slots type | DIMM |
| Number of memory slots | 8 |
| Supported memory types | DDR5-SDRAM |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet interface type | Fast Ethernet |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Other features | |
| Mini DisplayPorts quantity | 2 |
| Processor | |
| Processor manufacturer | AMD |

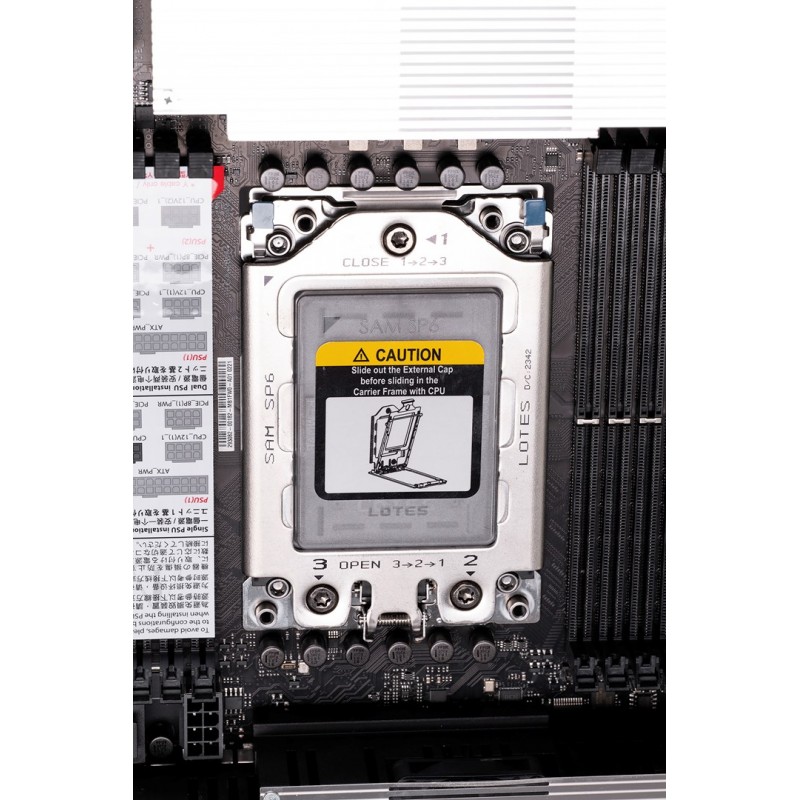

| Processor socket | Socket sTR5 |

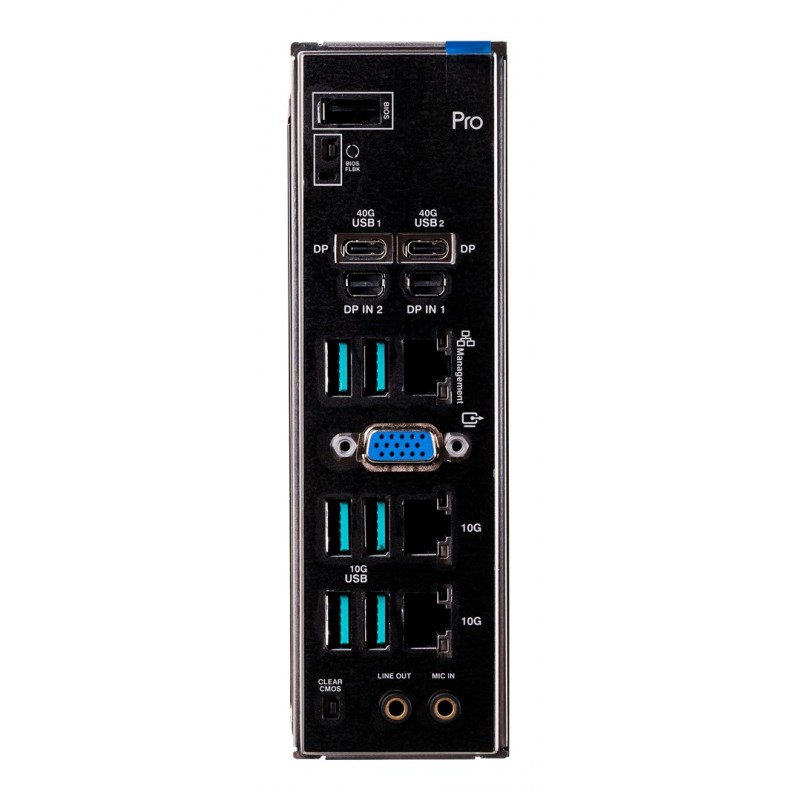

| Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB connector type | USB Type-C |
| USB connector type | USB Type-A |
| USB4 Gen 3x2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Safety warning | |
| Warnings | Use only in a dry and well-ventilated area. |
| Warnings | Do not open or disassemble the motherboard. |
| Warnings | The motherboard may contain electronic components hazardous to health - avoid direct contact. |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| RAID levels | 10 |
| RAID levels | 1 |
| RAID levels | 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 330 mm |
| Width | 305 mm |
