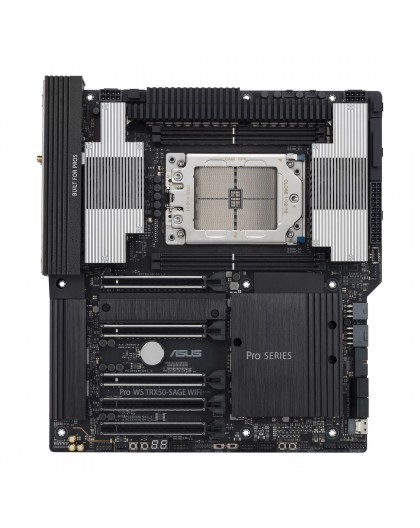

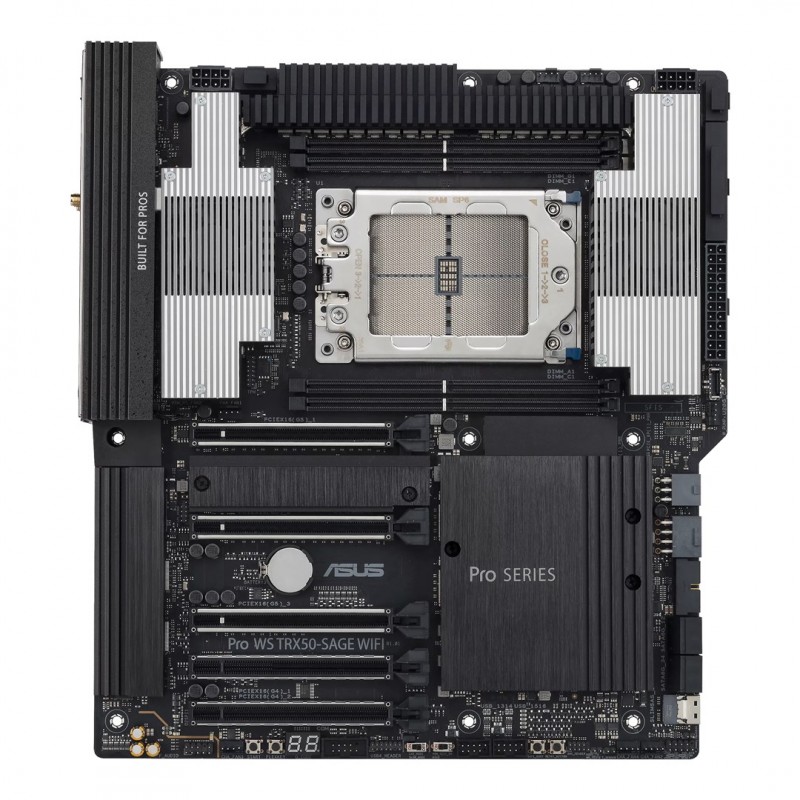

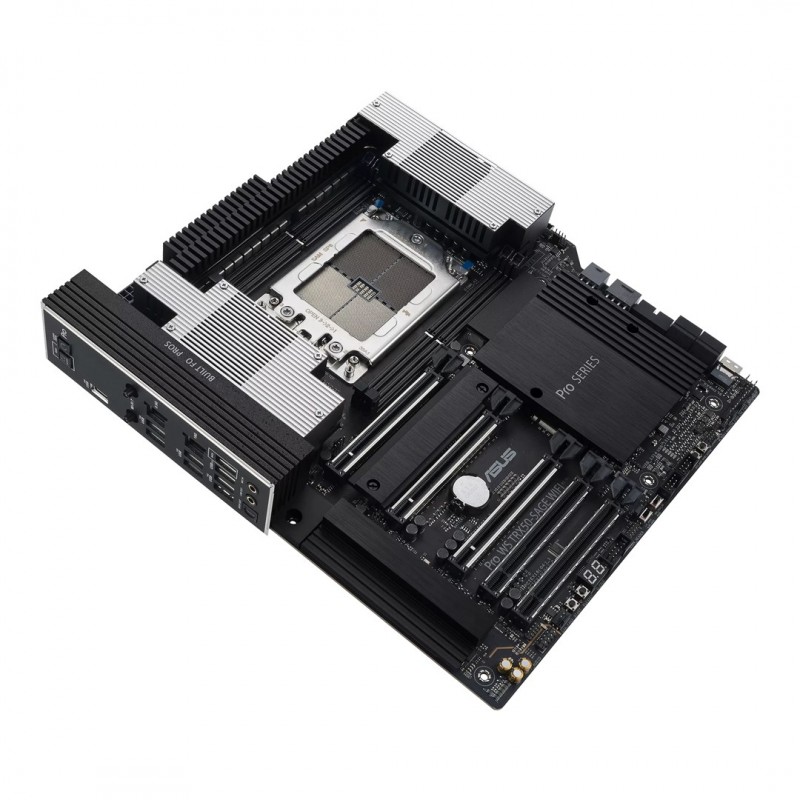

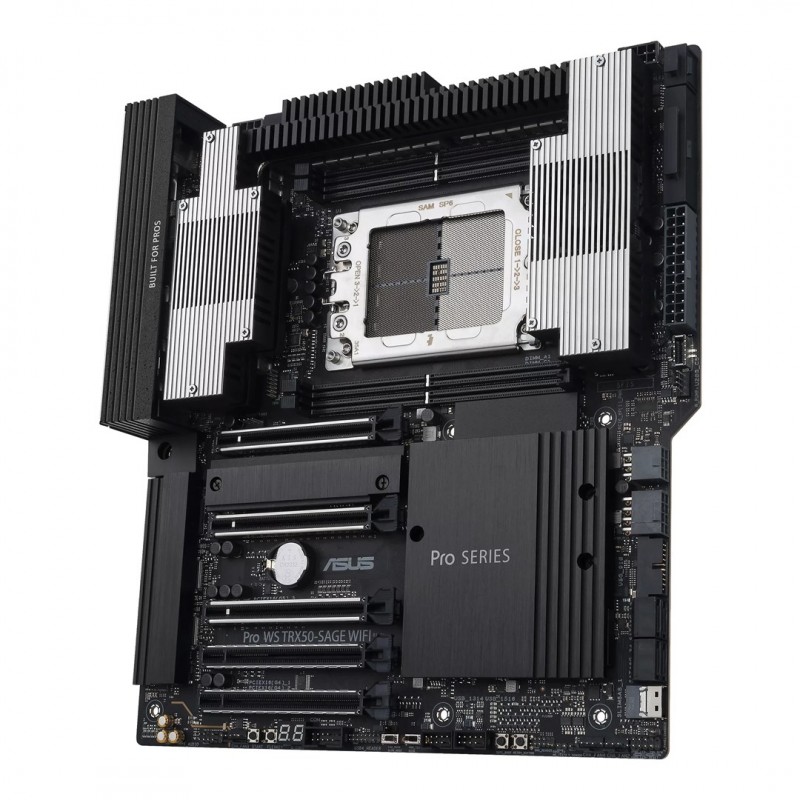

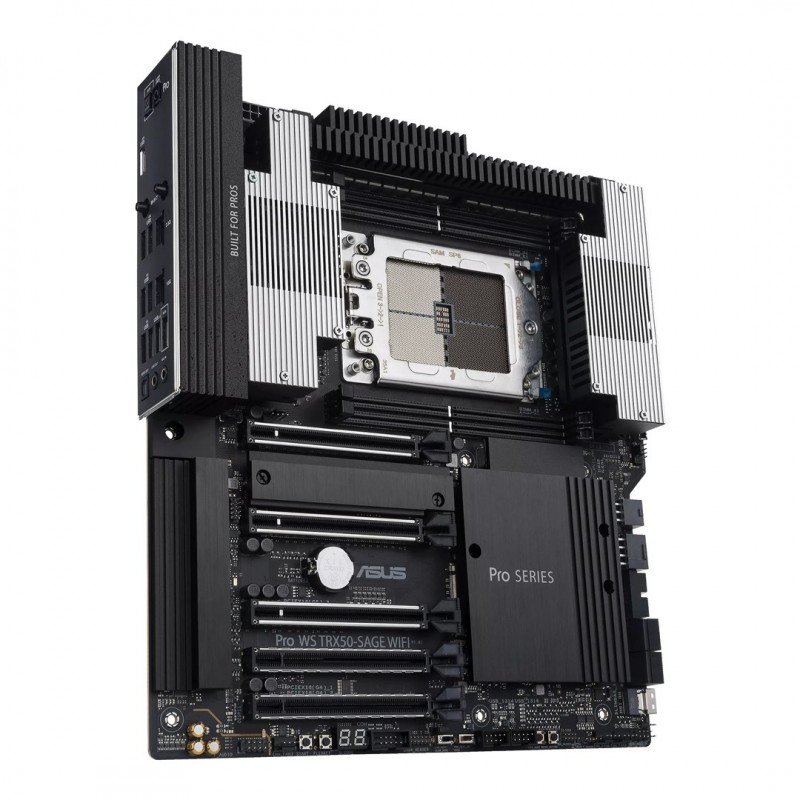

ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB motherboard for workstations
90MB1FZ0-M0EAY0
New product
8 Items
Shipping 2025-11-14 days
919,00 € tax incl.
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 3 |
| Features | |
| Audio chip | Realtek ALC1220P |
| Component for | Workstation |
| Motherboard chipset | AMD TRX50 |
| Motherboard chipset family | AMD |
| Motherboard form factor | SSI CEB |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64 |
| Windows operating systems supported | Windows 11 |
| Internal I/O | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Integrated SAS ports | 1 |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Memory | |
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5 ECC RDIMM |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Intel I226-LM |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Other features | |
| Weight | 2.53 kg |
| Packaging content | |
| Cables included | PCIe, SATA |
| Packaging data | |
| Package depth | 380 mm |
| Package height | 100 mm |
| Package weight | 4.85 kg |
| Package width | 320 mm |
| Processor | |
| Compatible processor series | AMD Ryzen™ Threadripper™ |
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |

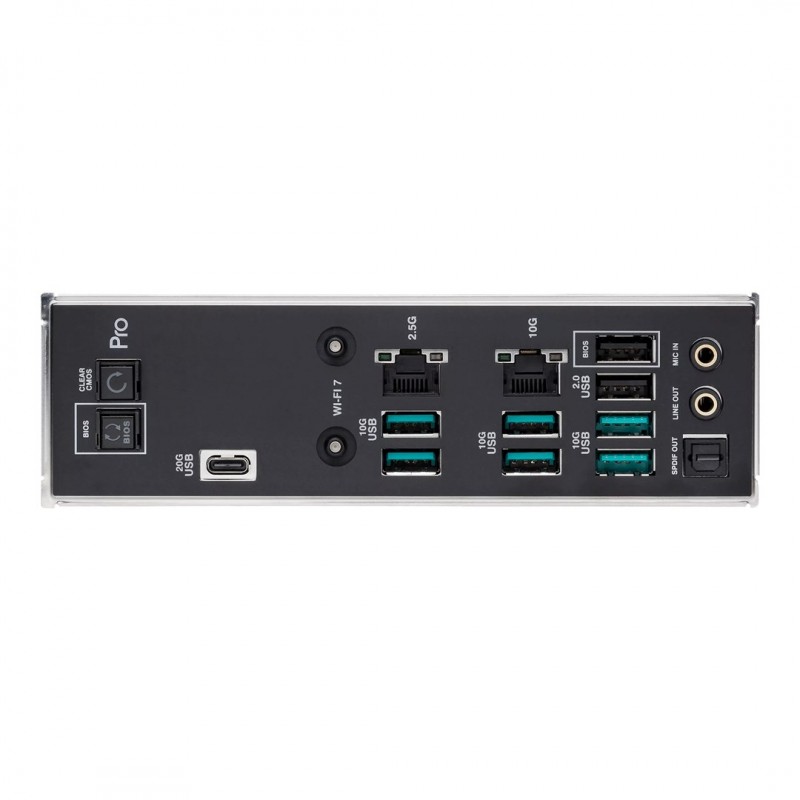

| Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-C |
| USB connector type | USB Type-A |
| WiFi-AP antenna jack | 1 |
| Safety warning | |
| Warnings | Use only in a dry and well-ventilated area. |
| Warnings | Do not open or disassemble the motherboard. |
| Warnings | The motherboard may contain electronic components hazardous to health - avoid direct contact. |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 1 |
| RAID levels | 10 |
| RAID levels | 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 280 mm |
| Width | 305 mm |
