Home / ///TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
New TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

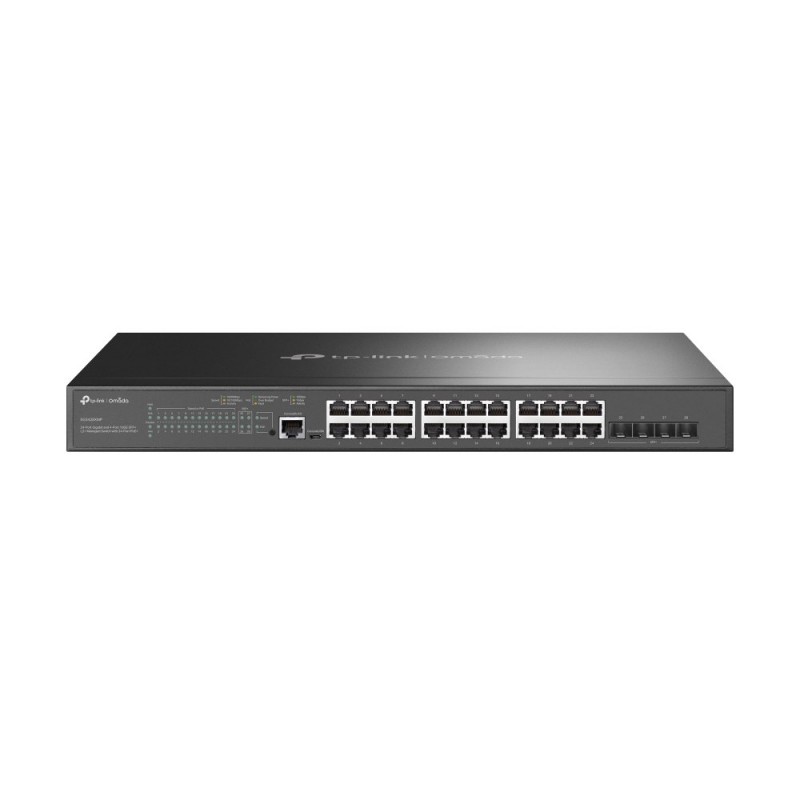

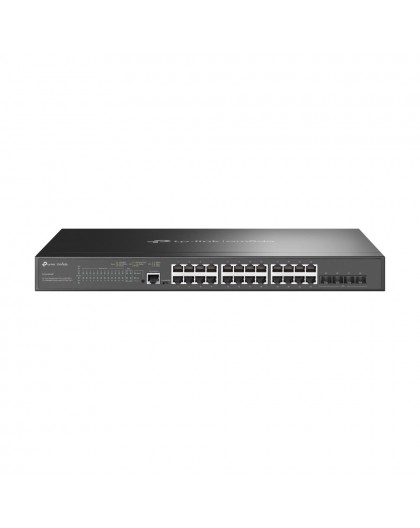

TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

TP-LINK

TL-SG3428XMP

New product

4 Items

Shipping 2025-11-14 days

529,00 € tax incl.

Data transmission
Forwarding rate95.23 Mpps
Jumbo frames9000
Jumbo frames supportYes
MAC address table16000 entries
Number of static routes48
Packet buffer memory12 MB
Switching capacity128 Gbit/s
Design
Form factor1U
LED indicatorsYes
Number of fans2 fan(s)
Product colourBlack
Rack mountingYes
Management features
Cloud-managedYes
MIB supportYes
Quality of Service (QoS) supportYes
Switch layerL2+
Switch typeManaged
System event logYes
Web-based managementYes
Multicast features
Multicast supportYes
Network
10G supportYes
Active link detectionYes
Broadcast storm controlYes
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
Networking standardsIEEE 802.1w
Networking standardsIEEE 802.1s
Networking standardsIEEE 802.11d
Number of VLANs4000
Policy-based routingYes
Port mirroringYes
Rate limitingYes
Spanning tree protocolYes
Virtual LAN featuresPort-based VLAN
Virtual LAN featuresVoice VLAN
Virtual LAN featuresTagged VLAN
Virtual LAN featuresMAC address-based VLAN
Virtual LAN featuresProtocol-based VLAN
Virtual LAN featuresPrivate VLAN
VLAN supportYes
Operational conditions
Heat dissipation1658.78 BTU/h
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C
Packaging data
Cables includedLAN (RJ-45)
Quick start guideYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45/micro-USB
Gigabit Ethernet (copper) ports quantity24
Power connectorAC-in jack
SFP+ module slots quantity4
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power consumption (max)486.2 W
Power sourceAC
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget384 W
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
Security
Access Control List (ACL)Yes
BPDU filtering/protectionYes
DHCP featuresDHCPv6 snooping
DHCP featuresDHCP client
DHCP featuresDHCP relay
DHCP featuresDHCP server
DHCP featuresDHCPv6 client
DHCP featuresDHCP snooping
IGMP snoopingYes
IP-MAC-Port bindingYes
Loop protectionYes
SSH/SSL supportYes
Weight & dimensions
Depth330 mm
Height44 mm
Width440 mm
