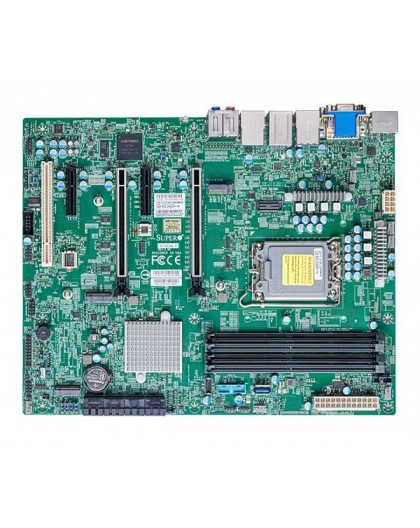

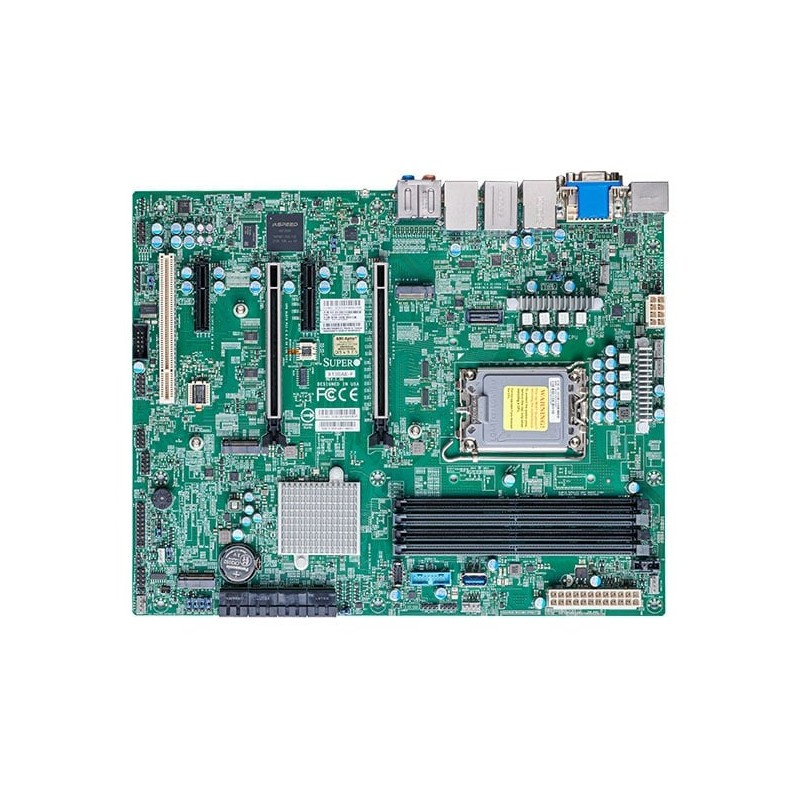

Supermicro MBD-X13SAE-F Intel W680 LGA 1700 ATX
MBD-X13SAE-F-O
New product
3 Items
Shipping 2025-11-14 days
Warning: Last items in stock!
549,00 € tax incl.
| BIOS | |
| ACPI version | 6.0 |
| BIOS memory size | 32 Mbit |
| BIOS type | AMI |
| System Management BIOS (SMBIOS) version | 3.0 |
| Features | |
| Audio chip | Realtek ALC888S |
| Component for | Server |
| Motherboard chipset | Intel W680 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Internal I/O | |
| Serial port headers | 1 |
| TPM connector | Yes |
| Memory | |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Memory slots type | DIMM |
| Memory voltage | 1.1 V |
| Number of memory slots | 4 |
| Supported memory clock speeds | 4000 MHz |
| Supported memory clock speeds | 4400 |
| Supported memory clock speeds | 3600 |
| Supported memory module capacities | 48GB |
| Supported memory module capacities | 24GB |
| Supported memory module capacities | 32GB |
| Supported memory module capacities | 16GB |
| Supported memory module capacities | 8GB |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Intel® I219-LM |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Processor | |
| Compatible processor series | Intel® Core™ i5 |
| Compatible processor series | Intel® Core™ i3 |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Processor cores | 24 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Storage controllers | |
| RAID levels | 1 |
| RAID levels | 5 |
| RAID levels | 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 5.0 |
| Weight & dimensions | |
| Depth | 243.8 mm |
| Width | 304.8 mm |
