Home / ///Asrock B550 Phantom Gaming 4 Socket AM4 ATX AMD B550
New Asrock B550 Phantom Gaming 4 Socket AM4 ATX AMD B550

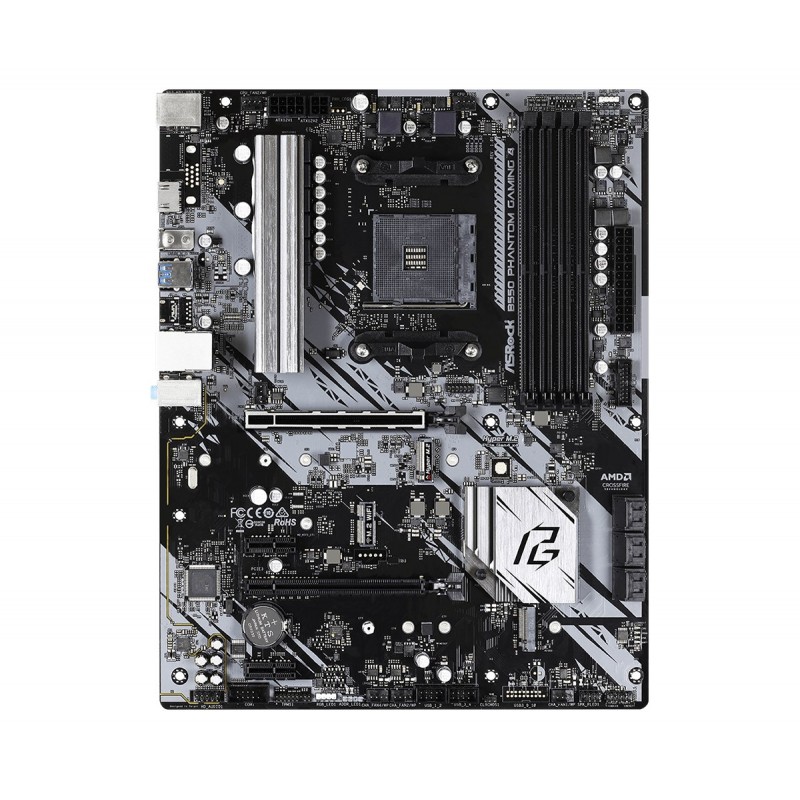

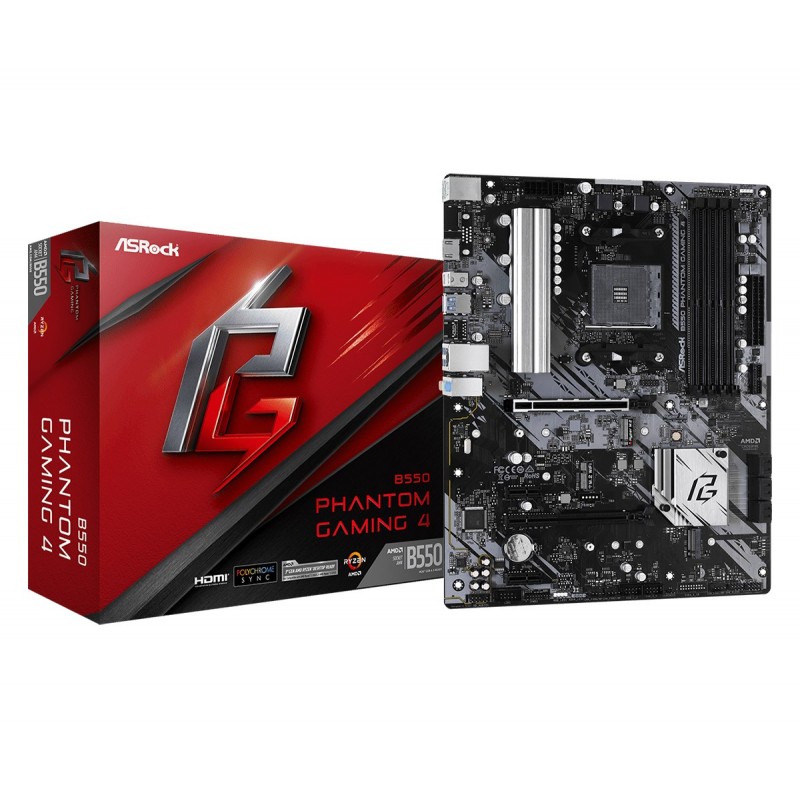

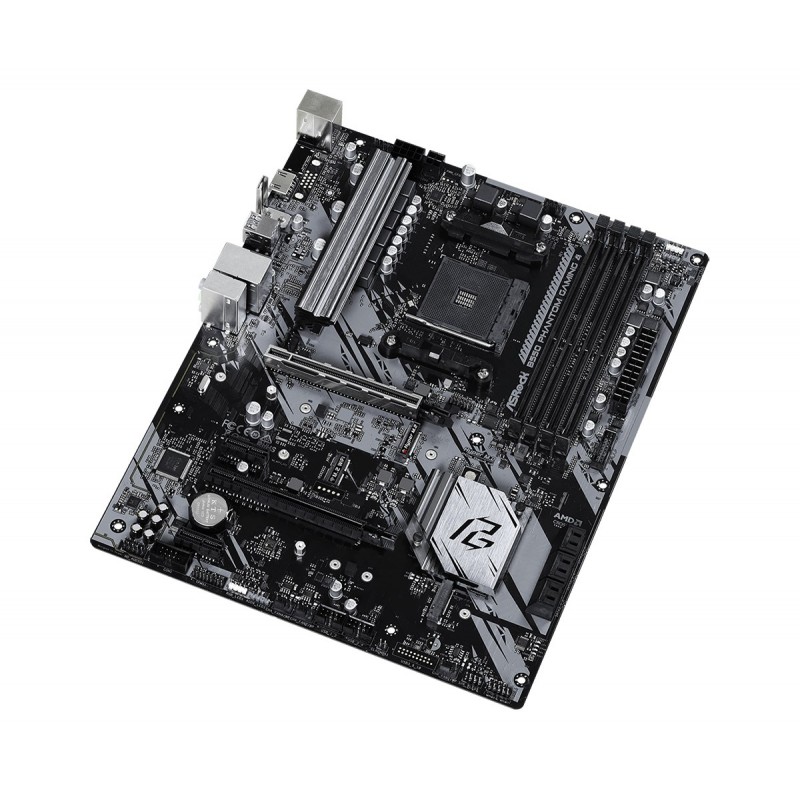

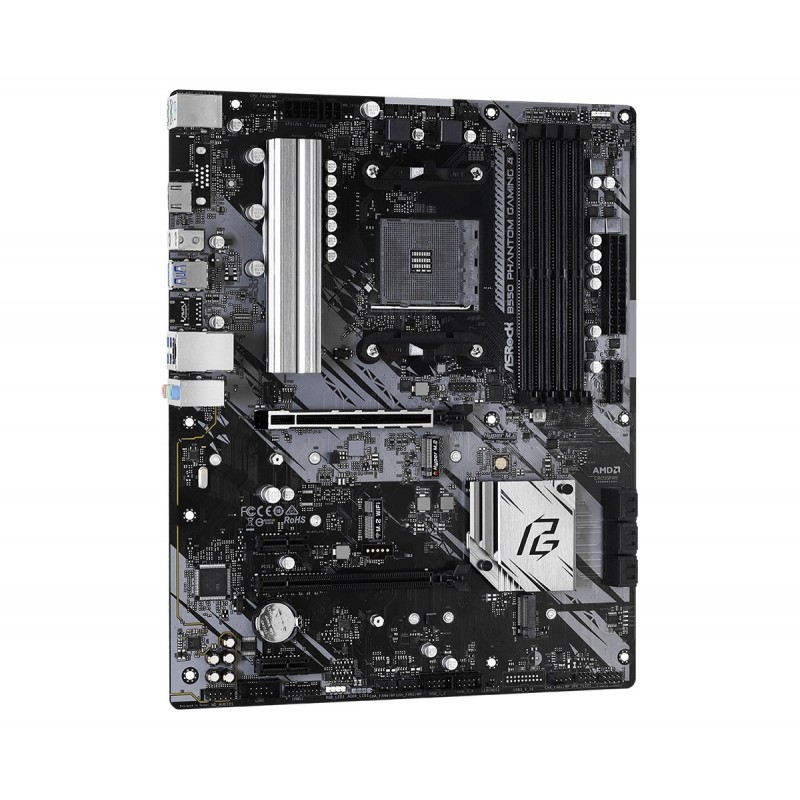

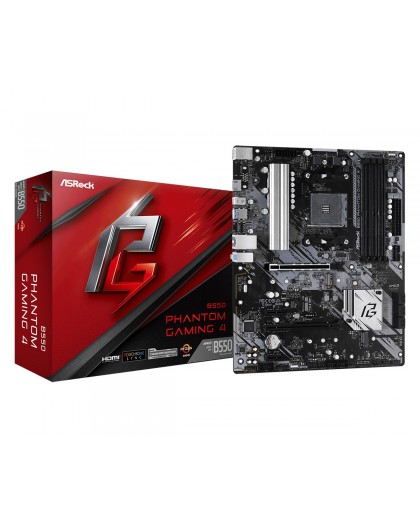

Asrock B550 Phantom Gaming 4 Socket AM4 ATX AMD B550

Asrock

B550PHANTOMGAMING4

New product

26 Items

Shipping 2025-11-14 days

99,00 € tax incl.

BIOS
BIOS typeUEFI
Features
Audio output channels7.1 channels
Motherboard chipsetAMD B550
Motherboard chipset familyAMD
Motherboard form factorATX
Internal I/O
ATX Power connector (24-pin)Yes
Audio connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of COM connectors1
Peripheral (Molex) power connectors (4-pin)4
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Memory
Maximum internal memory128 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speeds3800
Supported memory clock speeds4466
Supported memory clock speeds2667
Supported memory clock speeds3733
Supported memory clock speeds4400 MHz
Supported memory clock speeds3866
Supported memory clock speeds3200 MHz
Supported memory clock speeds4266
Supported memory clock speeds2133
Supported memory clock speeds4200
Supported memory clock speeds3466
Supported memory clock speeds4133
Supported memory clock speeds4000
Supported memory clock speeds4333
Supported memory clock speeds2933
Supported memory clock speeds3600
Supported memory clock speeds2400
Supported memory clock speeds4533
Supported memory typesDDR4-SDRAM
Network
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8111H
Wake-on-LAN readyYes
Wi-FiNo
Packaging content
Drivers includedYes
Processor
Compatible processor series3rd Generation AMD Ryzen 5
Compatible processor series3rd Generation AMD Ryzen™ 3
Compatible processor series3rd Generation AMD Ryzen™ 9
Compatible processor series3rd Generation AMD Ryzen™ 7
Maximum number of SMP processors1
Processor manufacturerAMD
Processor socketSocket AM4

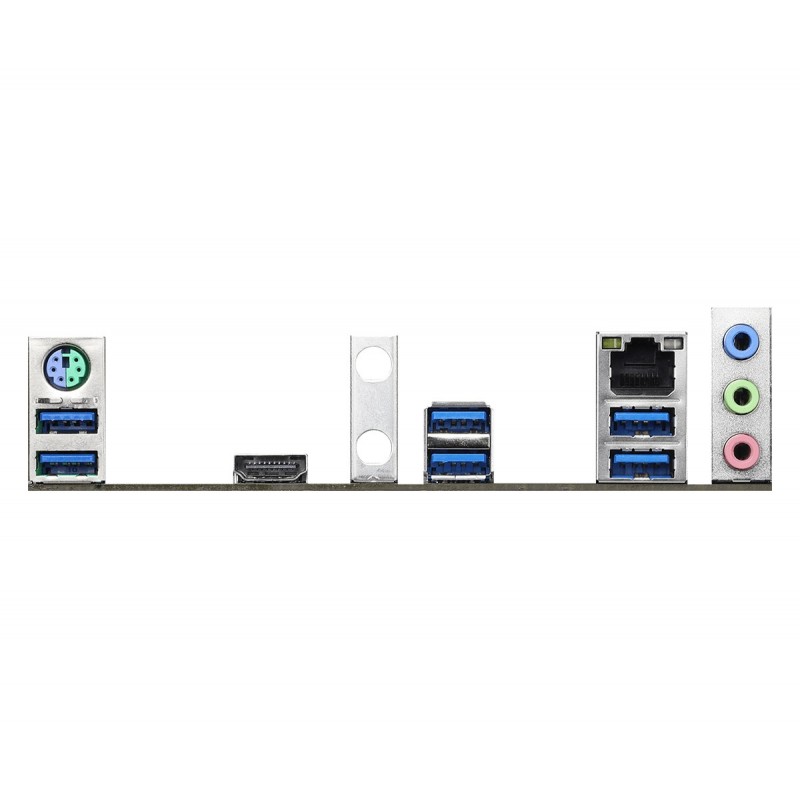

Rear panel I/O ports
Ethernet LAN (RJ-45) ports1
Microphone inYes
PS/2 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Storage controllers
RAID levels10
RAID levels1
Supported storage drive interfacesM.2, Serial ATA III
Weight & dimensions
Depth244 mm
Width305 mm
