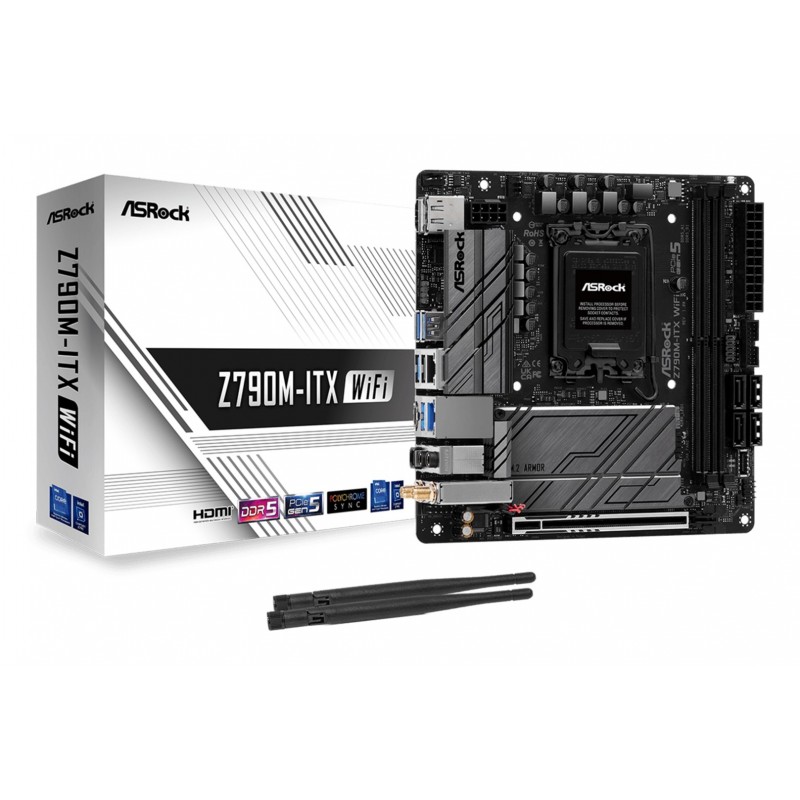

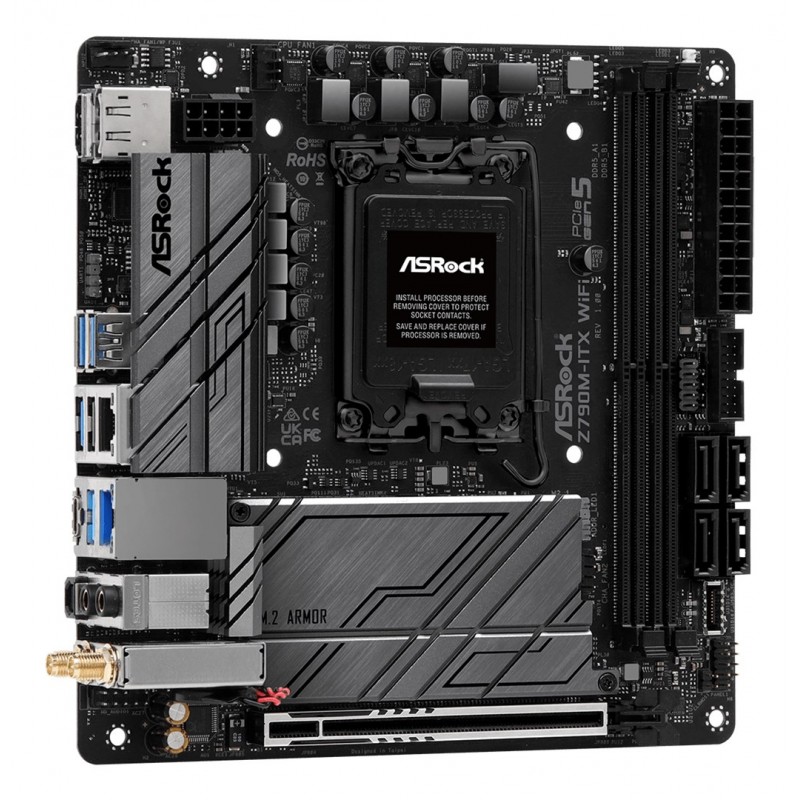

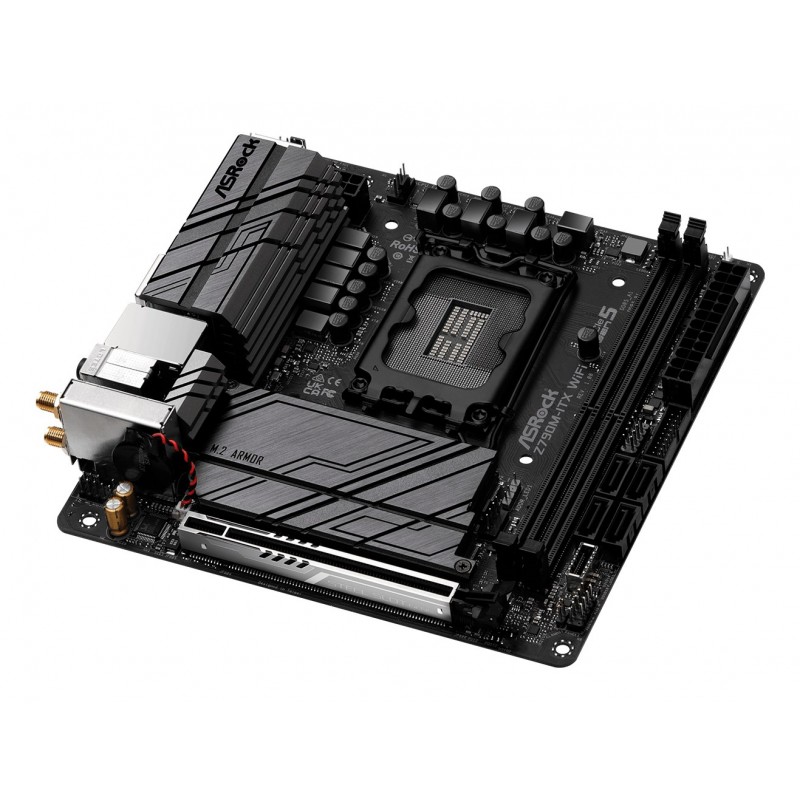

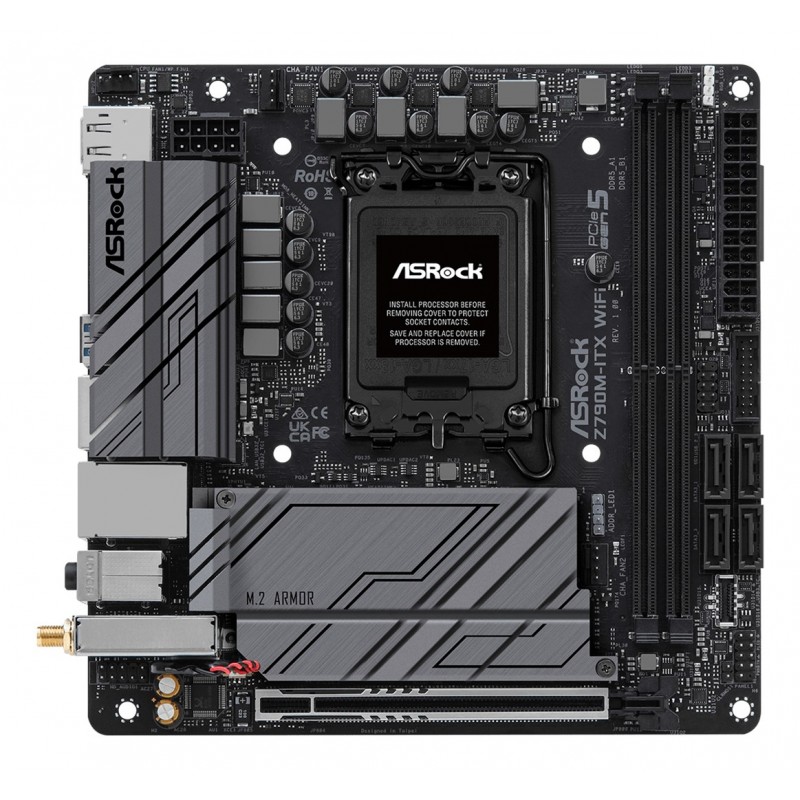

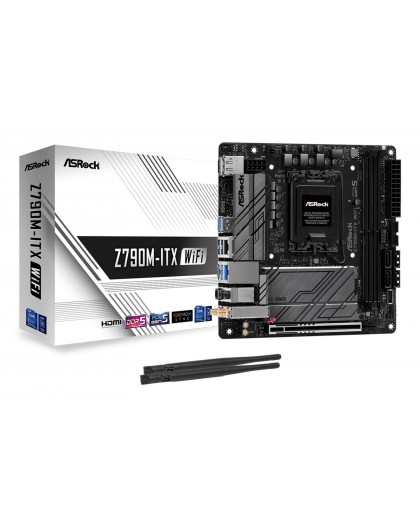

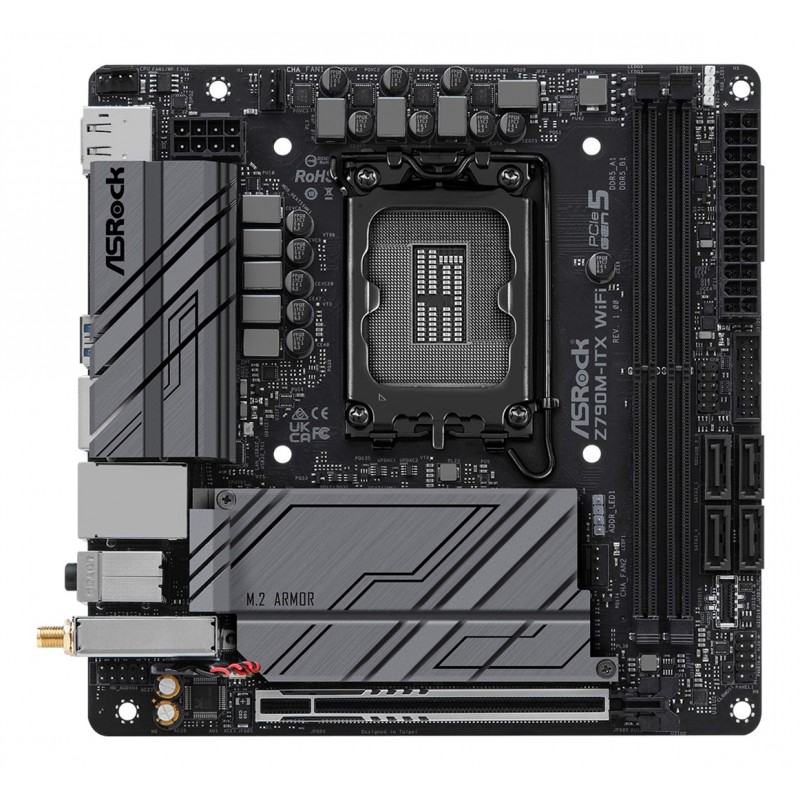

Asrock Z790M-ITX WiFi Intel Z790 LGA 1700 mini ITX
Z790M-ITXWiFi
New product
14 Items
Shipping 2025-11-14 days
199,00 € tax incl.
| BIOS | |
| BIOS type | UEFI AMI |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Features | |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ITX |
| Windows operating systems supported | Windows 10 x64 |
| Windows operating systems supported | Windows 11 x64 |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Memory | |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Bluetooth | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | 802.11b |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Processor | |
| Compatible processor series | Intel® Core™ i5 |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Safety warning | |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| Storage controllers | |
| RAID levels | 1 |
| RAID levels | 5 |
| RAID levels | 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 170 mm |
| Width | 170 mm |
