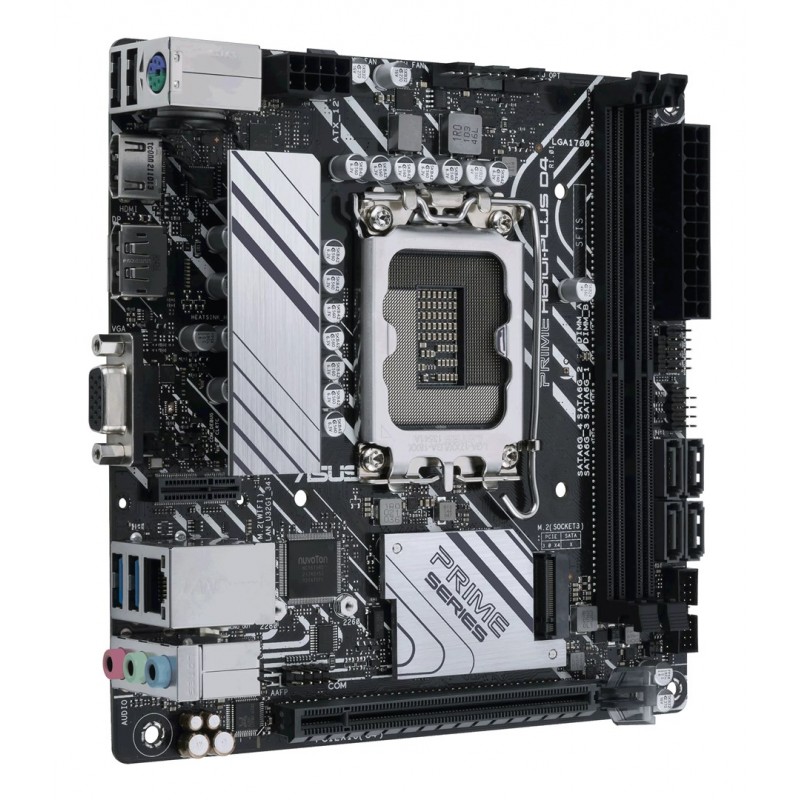

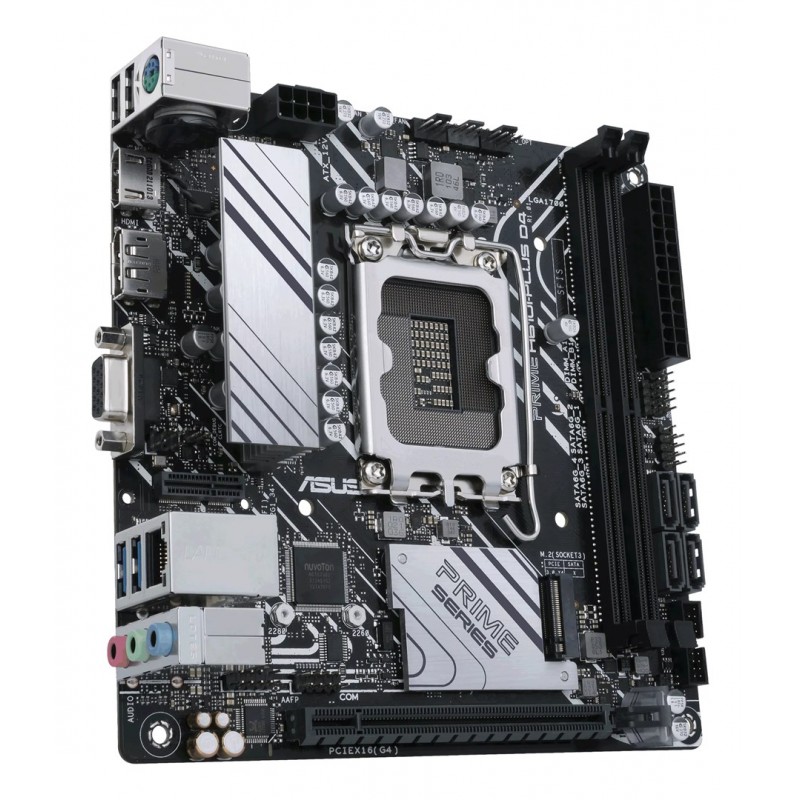

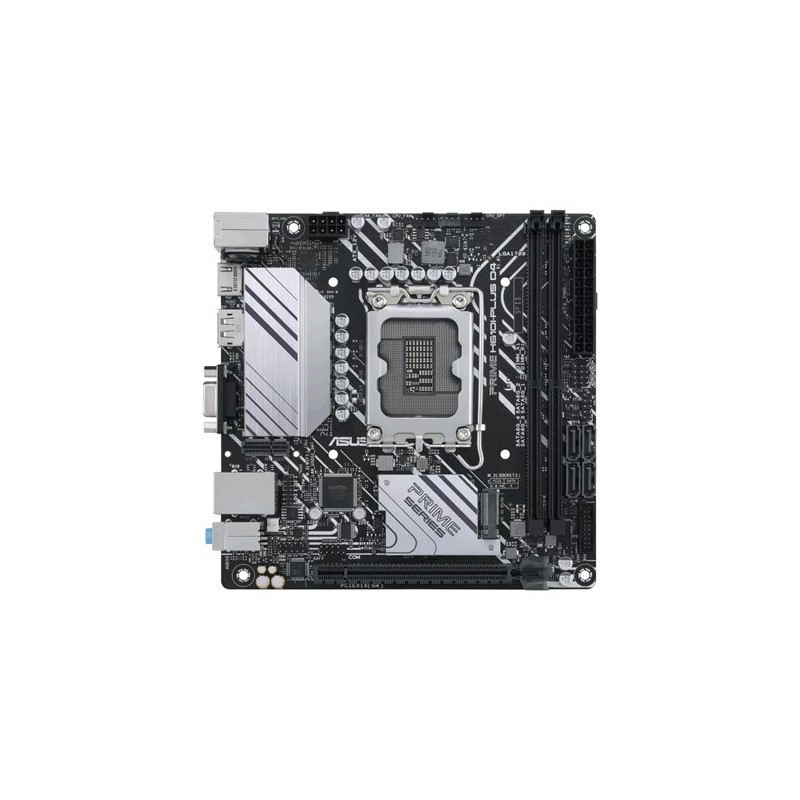

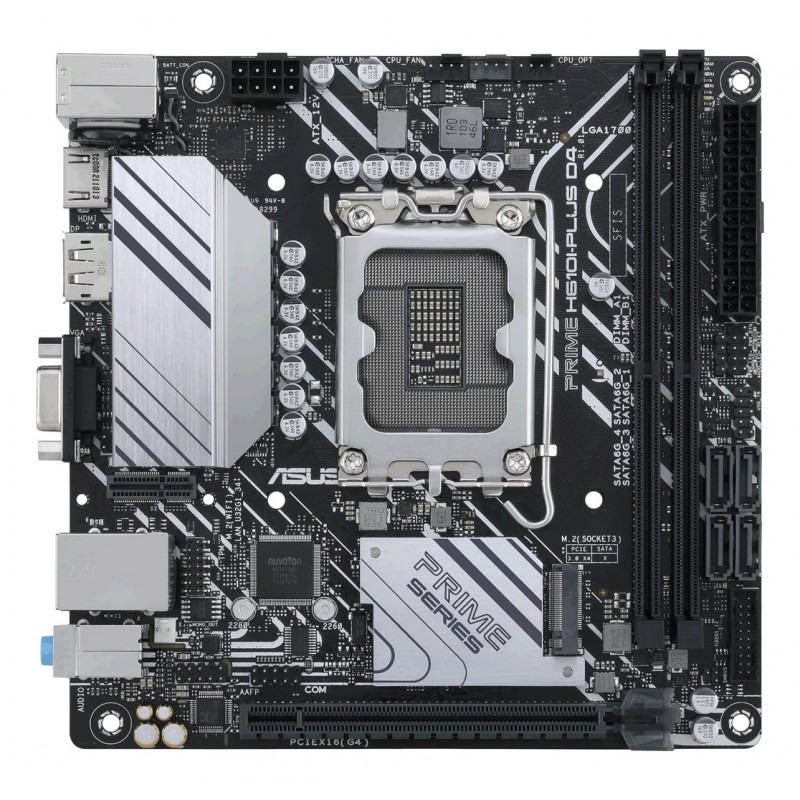

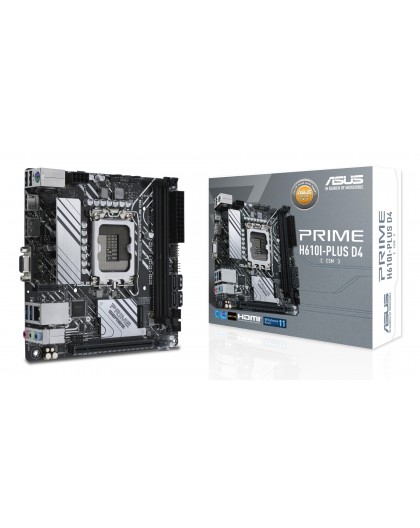

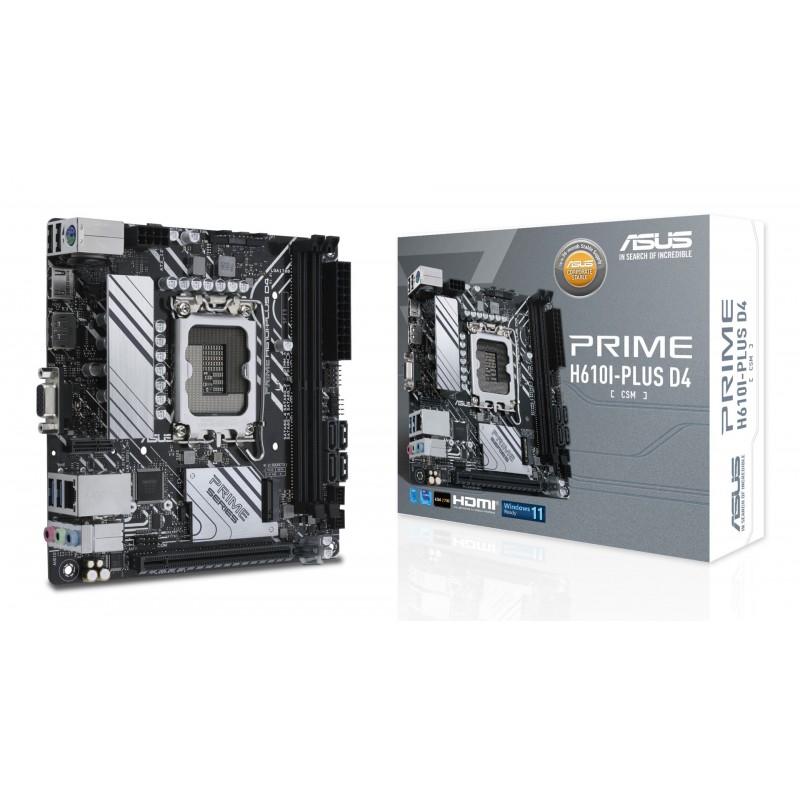

ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
2206153
New product
56 Items
Shipping 2025-11-24 days
149,00 € tax incl.
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Features | |
| Audio output channels | 7.1 channels |
| Compatible operating systems | Windows® 11 64-bit, Windows® 10 64-bit |
| Component for | PC |
| Motherboard chipset | Intel H610 |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ITX |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 |
| Windows operating systems supported | Windows 11 |
| Internal I/O | |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| Power fan connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 3200 MHz |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 2133 |
| Supported memory clock speeds | 3000 |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Other features | |
| Weight | 382 g |
| Packaging content | |
| Cables included | SATA |
| Drivers included | Yes |
| Packaging data | |
| Package depth | 182 mm |
| Package height | 60 mm |
| Package width | 226 mm |
| Processor | |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Compatible processor series | Intel® Pentium® |
| Compatible processor series | Intel® Core™ i5 |
| Compatible processor series | Intel® Celeron® |
| Compatible processor series | Intel® Core™ i3 |
| Maximum internal memory supported by processor | 64 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Safety warning | |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 170.2 mm |
| Height | 71 mm |
| Width | 170.2 mm |
