New ASUS PRIME H610M-E-CSM Intel H610 LGA 1700 micro ATX

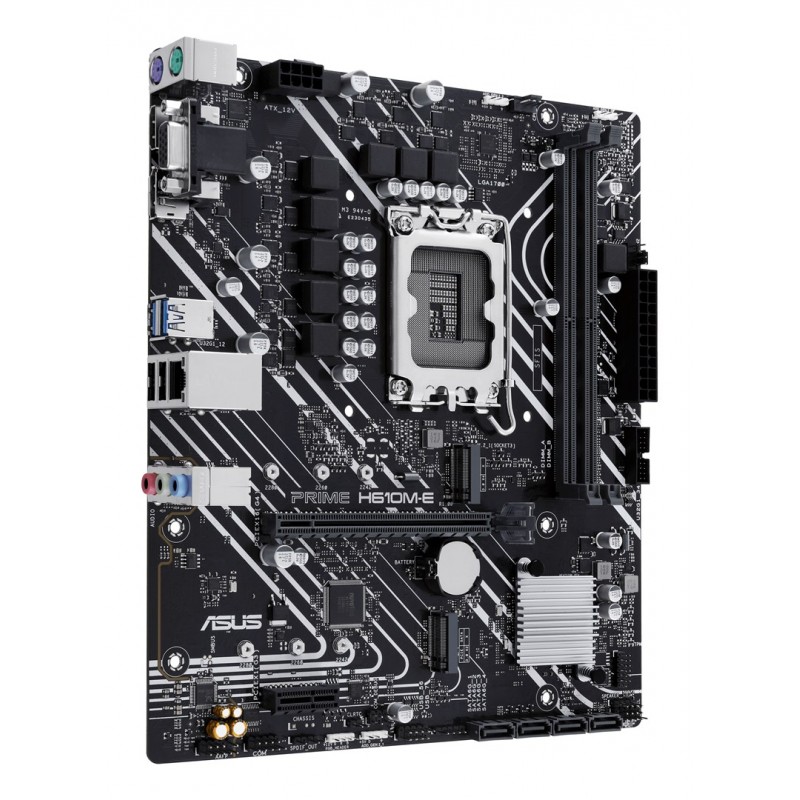

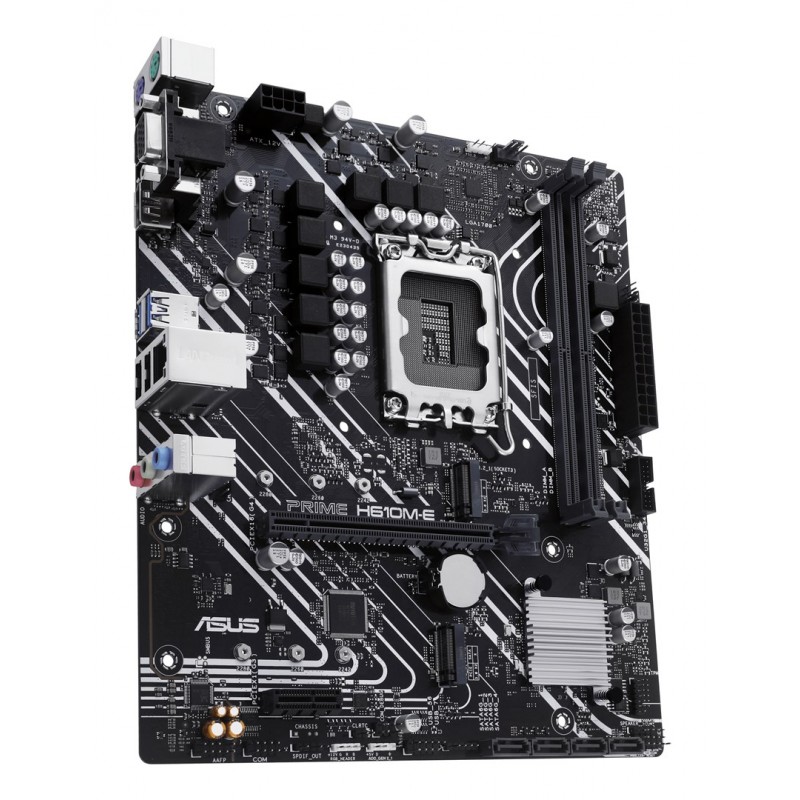

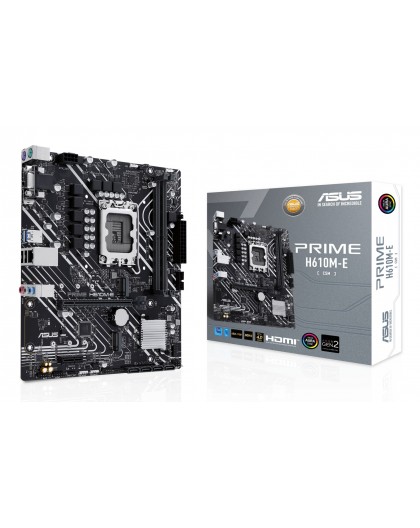

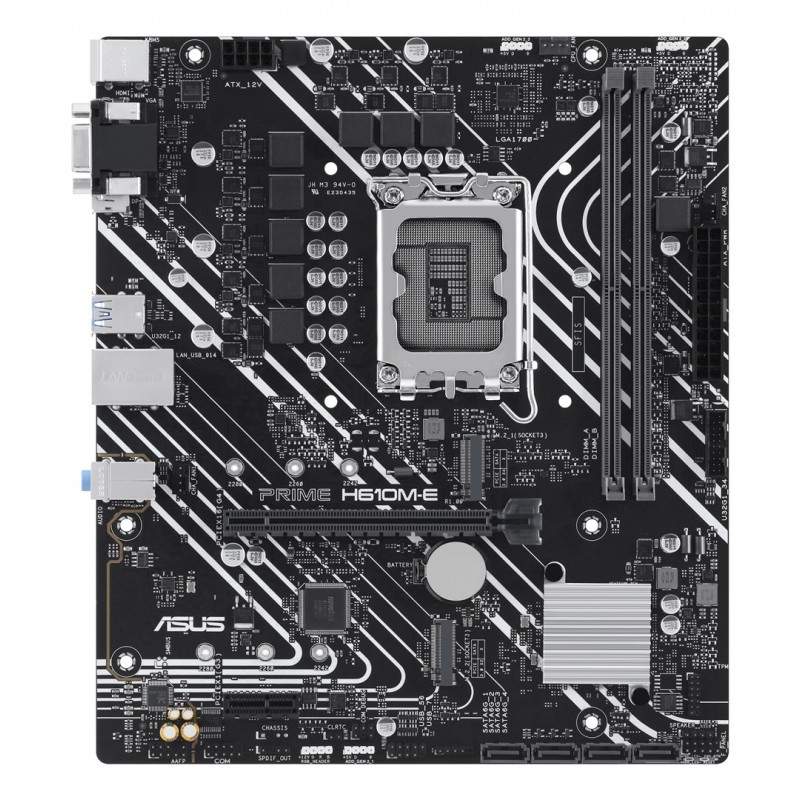

ASUS PRIME H610M-E-CSM Intel H610 LGA 1700 micro ATX

ASUS

90MB1G10-M0EAYC

New product

111 Items

Shipping 2025-11-24 days

139,00 € tax incl.

BIOS
BIOS memory size128 Mbit
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Features
Audio output channels7.1 channels
Component forPC
Cooling typePassive
Motherboard chipsetIntel H610
Motherboard chipset familyIntel
Motherboard form factormicro ATX
Power source typeATX
Windows operating systems supportedWindows 10
Windows operating systems supportedWindows 11
Graphics
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of chassis fan connectors2
Number of COM connectors1
Number of SATA III connectors4
RGB LED pin headerYes
S/PDIF out connectorYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Memory
ECC сompatibilityNon-ECC
Maximum internal memory96 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory clock speed (max)5600 MHz
Supported memory clock speeds5200
Supported memory clock speeds5600
Supported memory clock speeds5400
Supported memory clock speeds5000
Supported memory clock speeds4800
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Wi-FiNo
Packaging content
Cables includedSATA
User guideYes
Packaging data
Package depth263 mm
Package height51.5 mm
Package weight890 g
Package width270 mm
Processor
Compatible processor seriesIntel® Core™ i7
Compatible processor seriesIntel® Core™ i9
Compatible processor seriesIntel® Pentium® Gold
Compatible processor seriesIntel® Core™ i5
Compatible processor seriesIntel® Celeron®
Compatible processor seriesIntel® Core™ i3
Processor manufacturerIntel
Processor socketLGA 1700
Supported processor socketsLGA 1700
Rear panel I/O ports
DisplayPort version1.4
DisplayPorts quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
Microphone inYes
PS/2 ports quantity2
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
VGA (D-Sub) ports quantity1
Storage controllers
Number of HDDs supported4
Number of storage drives supported6
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth211 mm
Width244 mm
