New Deepcool PN750D 750w Gold Direct PSU

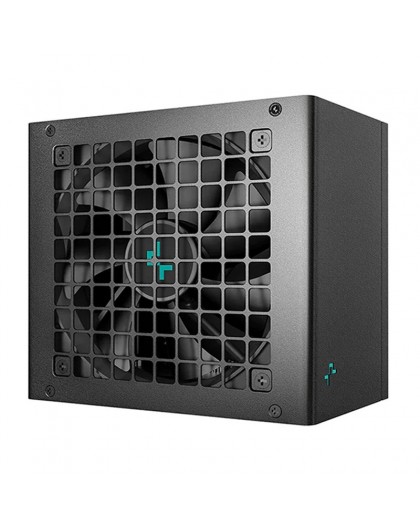

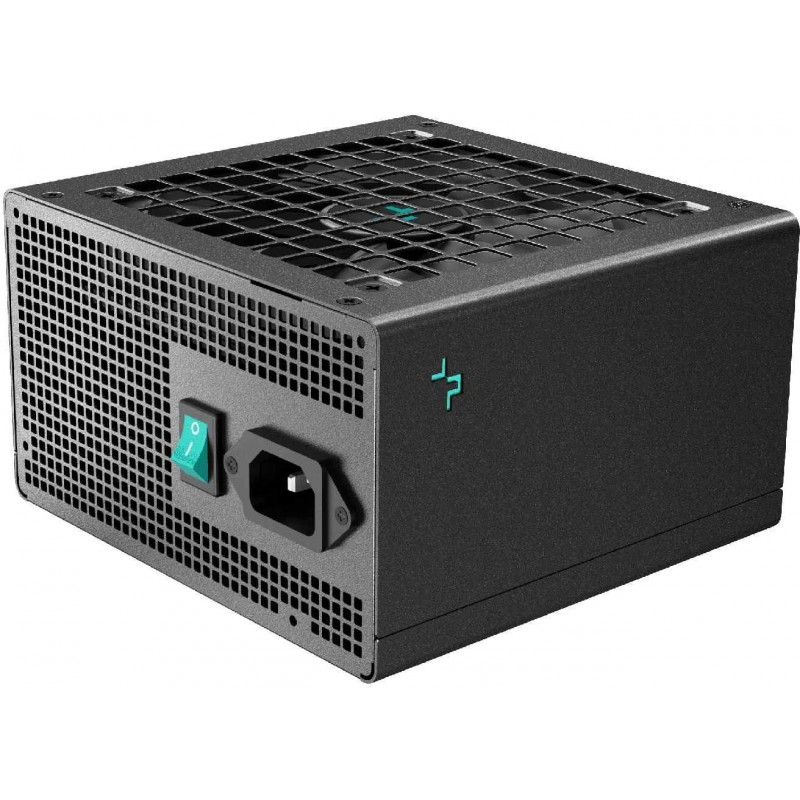

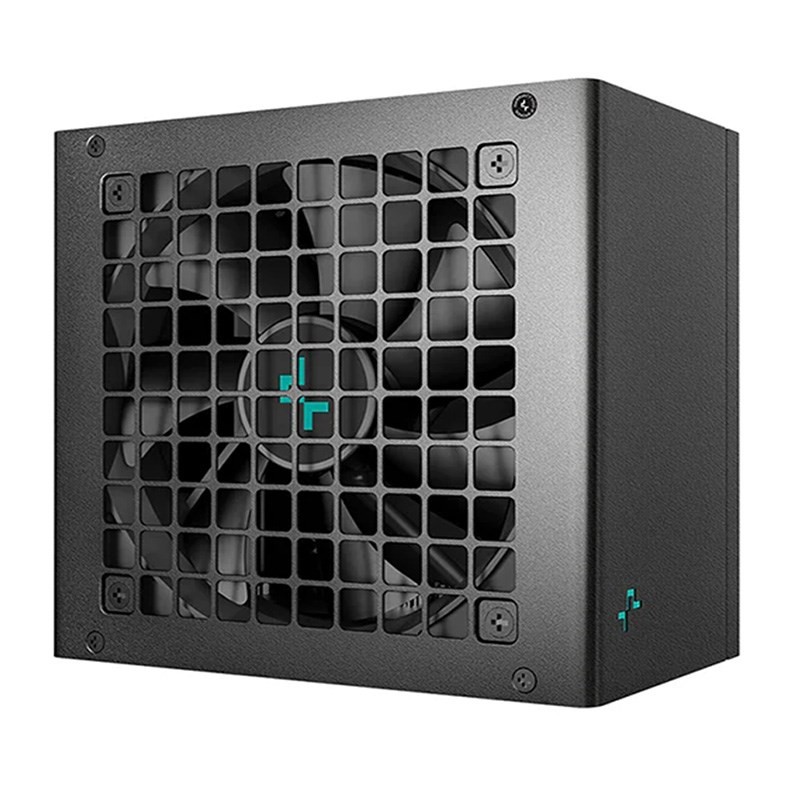

Deepcool PN750D 750w Gold Direct PSU

DEEPCOOL

R-PN750D-FC0B-JGEU-V2

New product

124 Items

Shipping 2025-11-14 days

109,00 € tax incl.

Certificates
CertificationCE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Compliance certificatesRoHS
Compliance certificatesWEEE
Design
Cooling typeActive
Fan diameter12 cm
Fan locationTop
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 40 °C
Packaging data
Package typeBox
Performance
80 PLUS certification80 PLUS Gold
ATX version3.1
Bearing technologyHDB
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeNon-Modular
Motherboard power cable length54 cm
Motherboard power connector24-pin ATX
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)750 W
Combined power (+3.3V)110 W
Combined power (+5V)110 W
Efficiency80%
Hold time16 ms
Max output current (-12V)0.3 A
Max output current (+12V)62.5 A
Max output current (+3.3V)20 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Power Factor Correction (PFC) typeActive
Power Good signal delay range100 - 150 ms
Power protection featuresOverheating
Power protection featuresSurge protection
Power protection featuresOver voltage
Power protection featuresSurge & inrush protection (SIP)
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresNo load operation
Power protection featuresOver power
Total power750 W
Weight & dimensions
Depth140 mm
Height86 mm
Width150 mm
