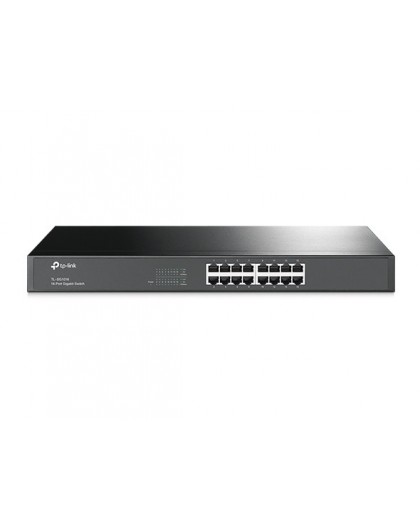

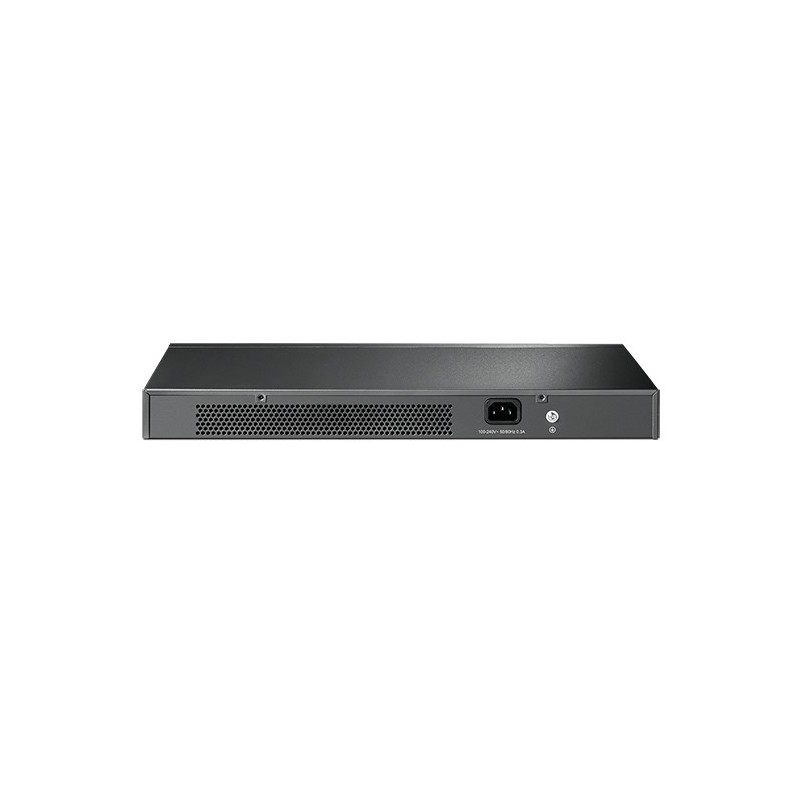

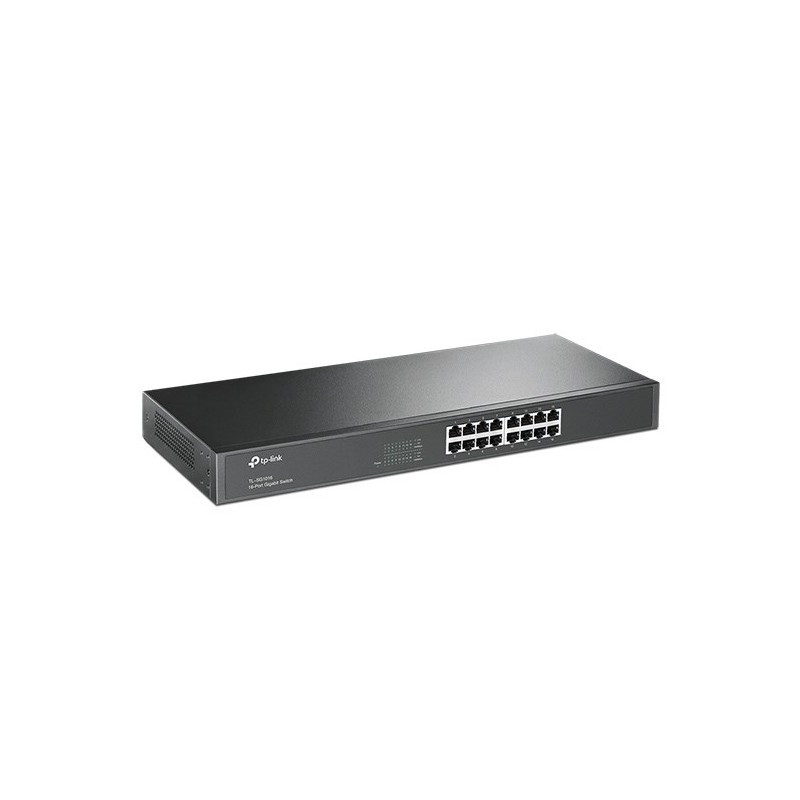

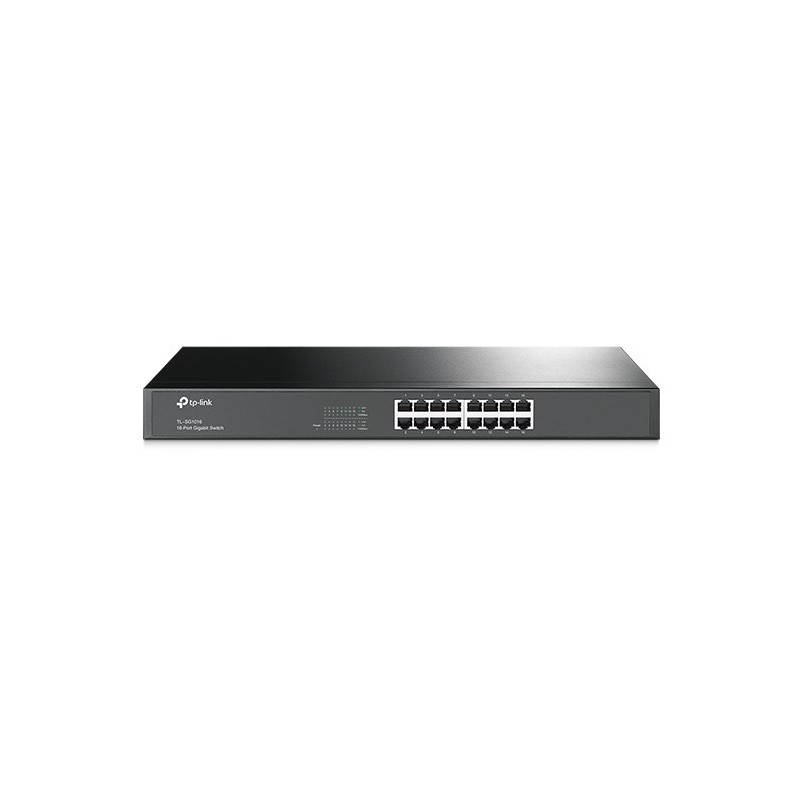

TP-LINK 16-Port Gigabit Rackmount Network Switch
TL-SG1016
New product
22 Items
Shipping 2025-11-14 days
79,00 € tax incl.
| Data transmission | |
| Forwarding rate | 23.8 Mpps |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Switching capacity | 32 Gbit/s |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Management features | |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| System event log | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| User operation log | Yes |
| Web-based management | Yes |
| Network | |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat5 |
| Cable types supported | Cat5e |
| Cable types supported | Cat4 |
| Cable types supported | Cat3 |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 1000BASE-T |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN data rates | 480 |
| Ethernet LAN data rates | 10 |
| Ethernet LAN data rates | 800 |
| Ethernet LAN data rates | 100 |
| Flow control support | Yes |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3i |
| Networking standards | IEEE 802.3u |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| VLAN support | Yes |
| Operational conditions | |
| Heat dissipation | 31.6 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 9.26 W |
| Security | |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| DHCP features | DHCP snooping |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Password protection | Yes |
| Security algorithms | 802.1x RADIUS |
| Static port security | Yes |
| Weight & dimensions | |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 440 mm |
