New Mercusys MB235-4G router

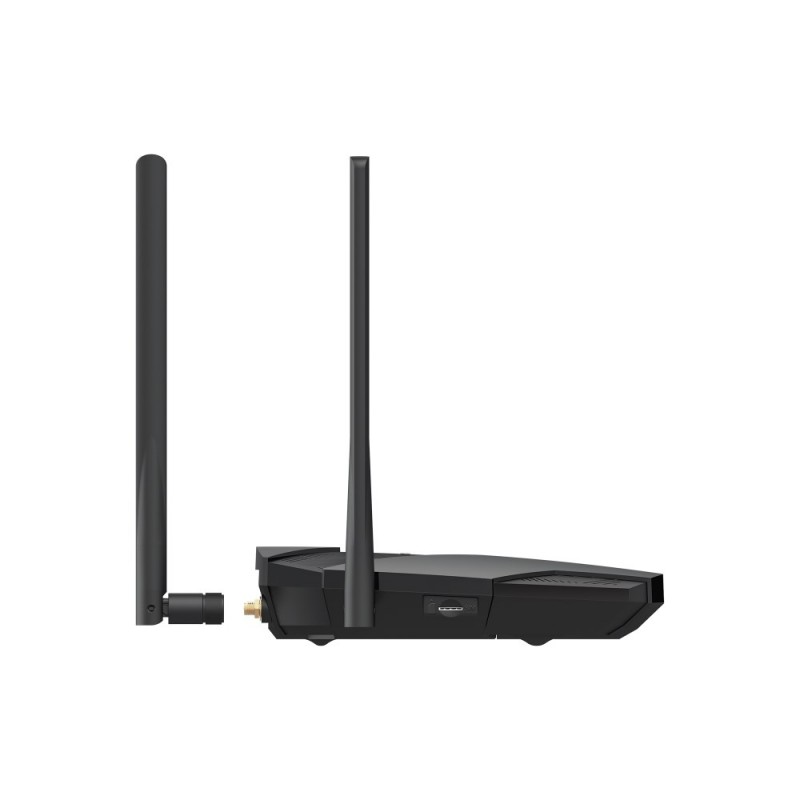

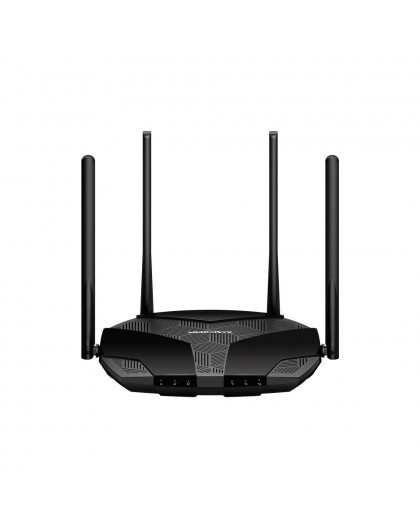

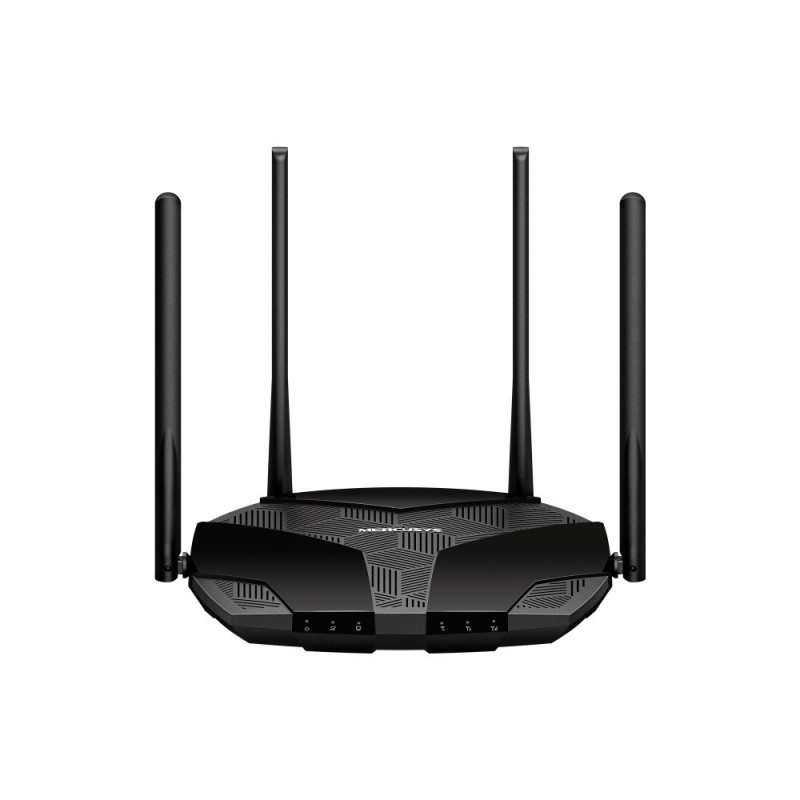

Mercusys MB235-4G router

MERCUSYS

MB235-4G

New product

7 Items

Shipping 2025-11-14 days

89,00 € tax incl.

Antenna
Antenna designExternal
Design
Indication lightYes
Product colourBlack
Management features
Reset buttonYes
WPS push buttonYes
Mobile network
3G standardsUMTS
3G standardsHSPA+
4G bands supported2100
4G bands supported800
4G bands supported1800
4G bands supported2600 MHz
4G bands supported900
4G bands supported850
4G bands supported700
4G bands supported2300
4G standardLTE-TDD & LTE-FDD
SIM card typeNanoSIM
UMTS bands supported850
UMTS bands supported2100 MHz
UMTS bands supported900
Network
Dynamic DNS (DDNS)Yes
Ethernet LANYes
Ethernet LAN data rates100
Ethernet LAN data rates10
Ethernet LAN data rates1000 Mbit/s
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 60 °C
Packaging content
Power supply includedYes
Quick installation guideYes
Ports & interfaces

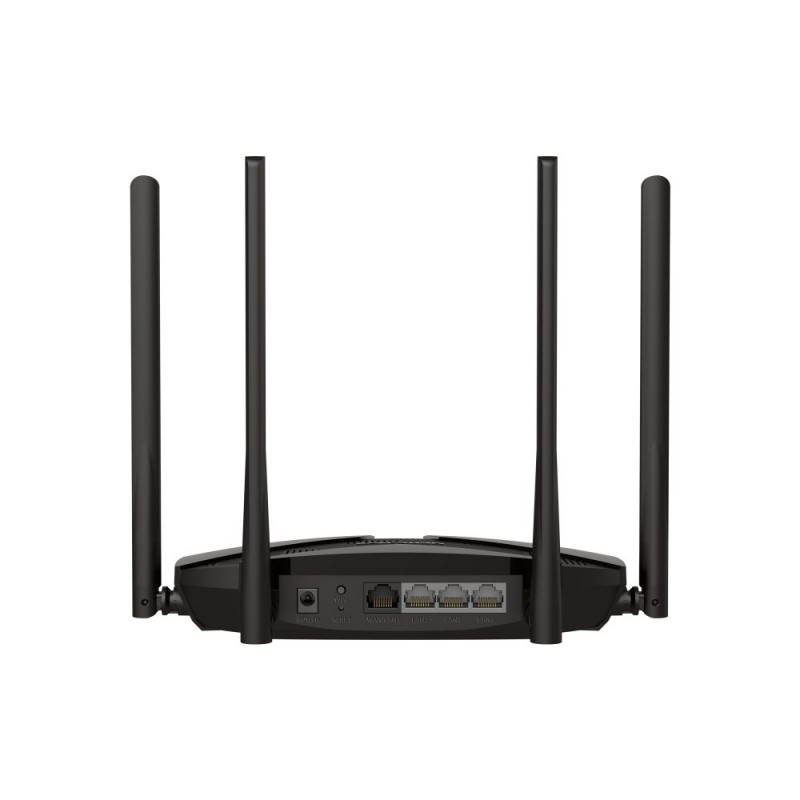

Ethernet LAN (RJ-45) ports4
Power
Output current1 A
Output voltage12 V
Protocols
DHCP serverYes
Universal Plug and Play (UPnP)Yes
VoIP protocolsIPv4, IPv6
Safety warning
WarningsDo not expose the device to extreme temperatures.
WarningsDo not dismantle the unit yourself, there is a risk of electric shock.
WarningsDo not expose the device to water or moisture.
Security
DMZ supportYes
FirewallYes
Port-based Network Access Control (PNAC)Yes
Security algorithmsWPA3-SAE
Security algorithmsWPA-PSK
Security algorithmsWPA2-PSK
WAN connection
Ethernet WANYes
SIM card slotYes
WAN connection typeRJ-45
Weight & dimensions
Depth171.9 mm
Height41.7 mm
Width209 mm
Wireless LAN features
Wi-Fi band2,4 GHz, 5 GHz
Wi-Fi standards802.11a
Wi-Fi standards802.11g
Wi-Fi standardsWi-Fi 4 (802.11n)
Wi-Fi standards802.11b
Wi-Fi standards802.11ac
