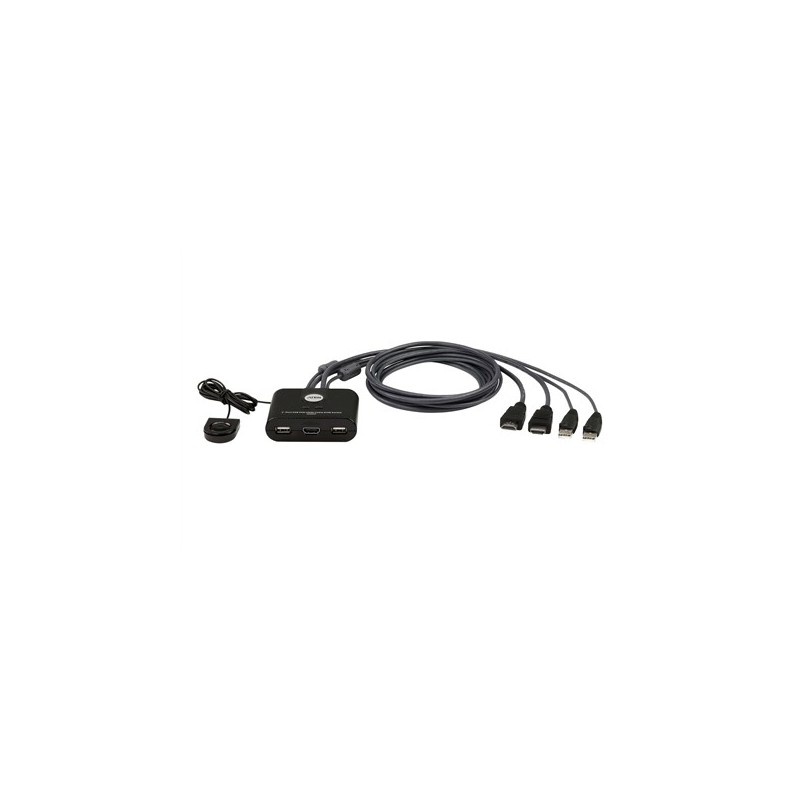

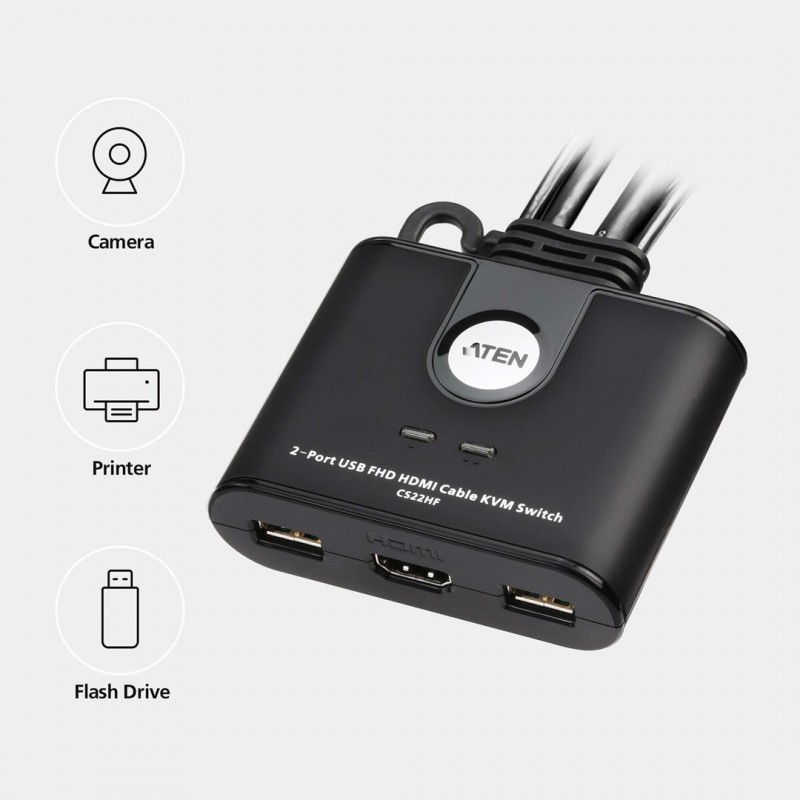

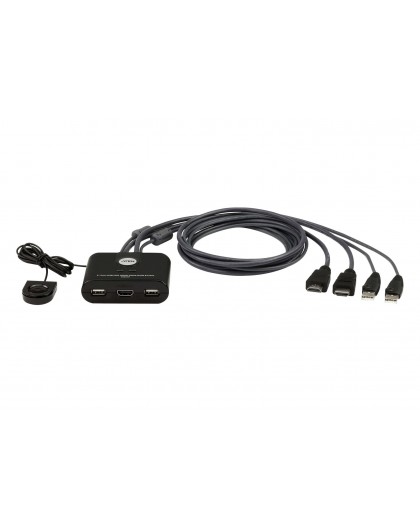

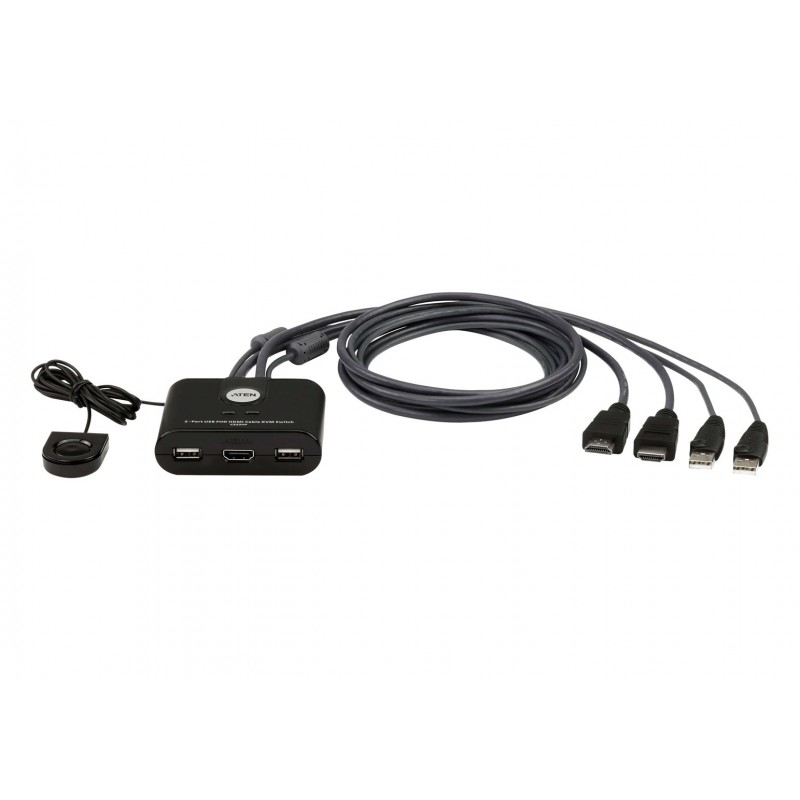

ATEN 2-Port USB FHD HDMI Cable KVM Switch
2204139
New product
50 Items
Shipping 2025-11-24 days
39,00 € tax incl.
| Design | |
| Cable length | 1.2 m |
| Housing material | Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Remote switch cable length | 1.8 m |
| Display | |
| Built-in display | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case gross weight | 7.9 kg |
| Master (outer) case height | 330 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case volume | 42192.1 cm³ |
| Master (outer) case width | 328 mm |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| Packaging content | 1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions |
| Packaging data | |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package type | Box |
| Package volume | 1982.18 cm³ |
| Package weight | 360 g |
| Package width | 55 mm |
| Performance | |
| HD type | Full HD |
| HDCP | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Console ports | USB A |
| Console ports | HDMI |
| DC-in jack | Yes |
| HDMI ports quantity | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| USB connector type | USB Type-A |
| Video port type | HDMI |
| Power | |
| Input voltage | 5 V |
| Power consumption (typical) | 1.518 W |
| Safety warning | |
| Warnings | Ensure the unit is adequately ventilated during operation. |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Warnings | Do not open the case or try to repair it yourself. |
| System requirements | |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Depth | 82.4 mm |
| Height | 25.2 mm |
| Weight | 260 g |
| Width | 66.5 mm |
