Home / ///ASUS PRIME X870-P AMD X870 Socket AM5 ATX
New ASUS PRIME X870-P AMD X870 Socket AM5 ATX

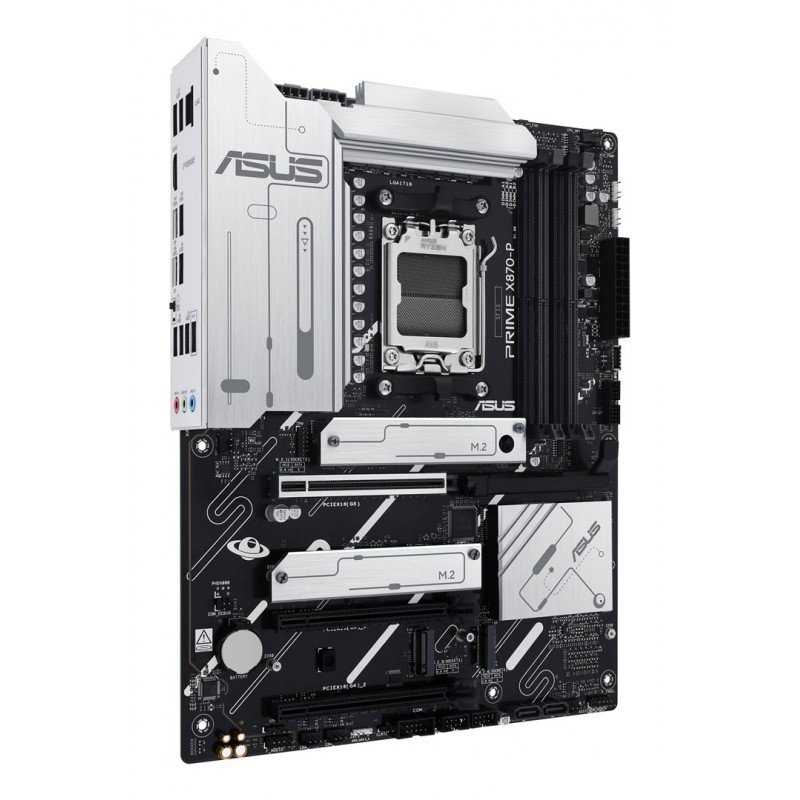

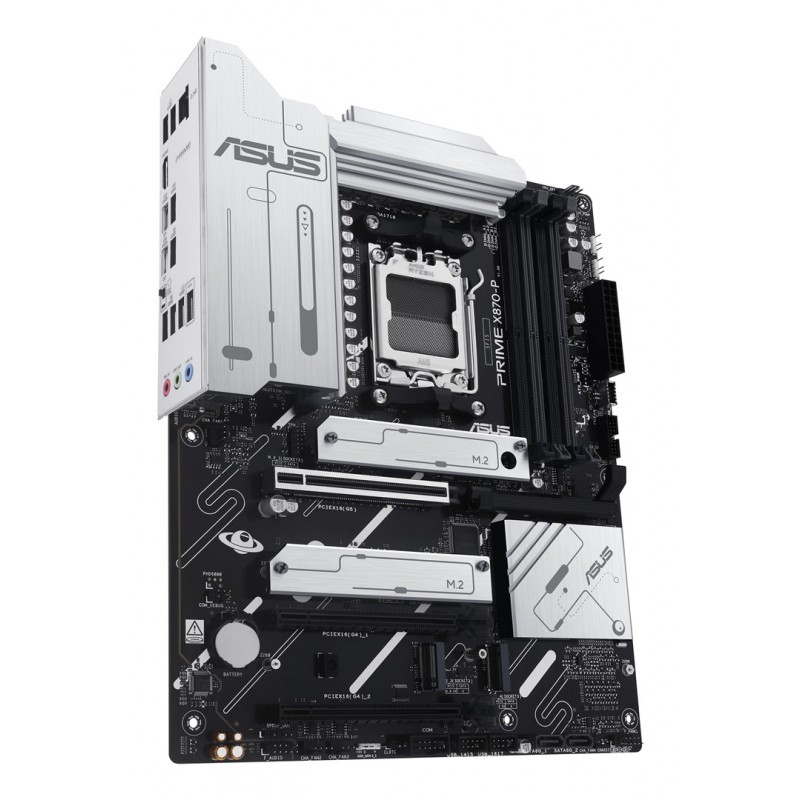

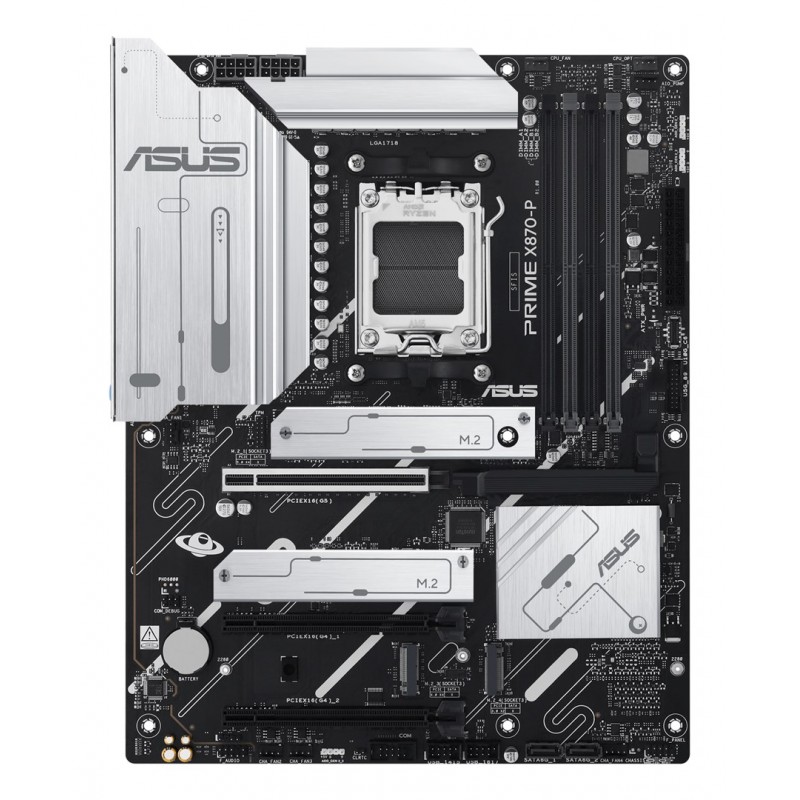

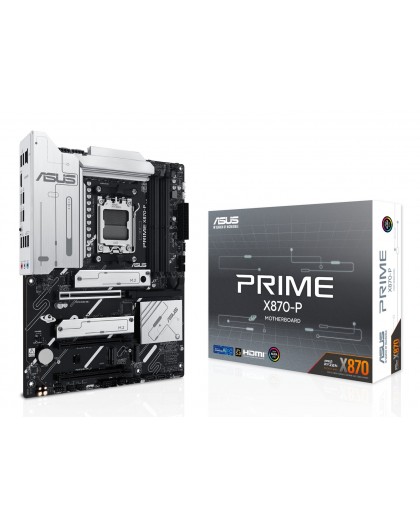

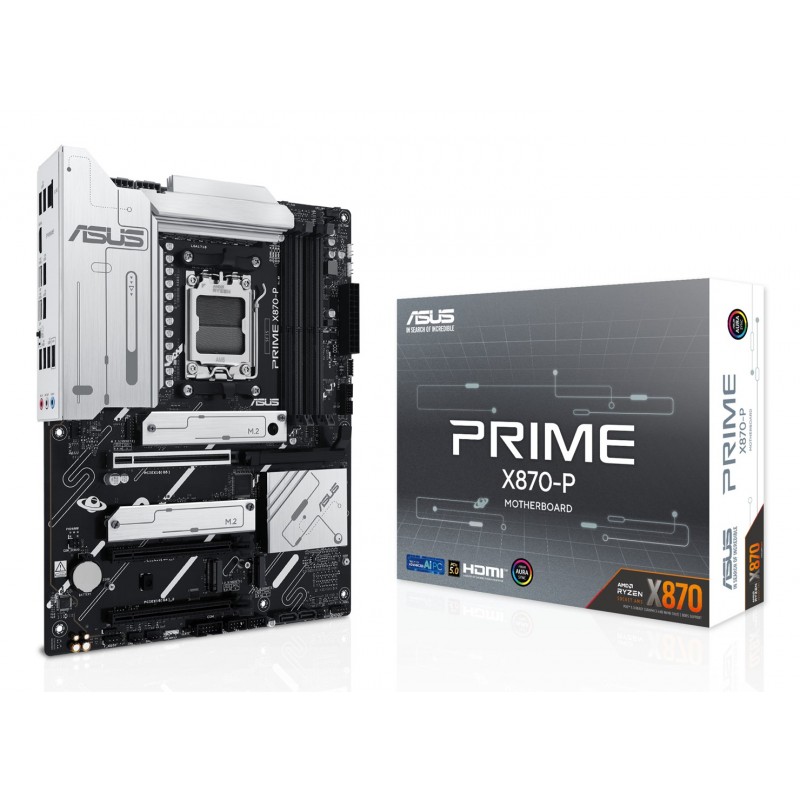

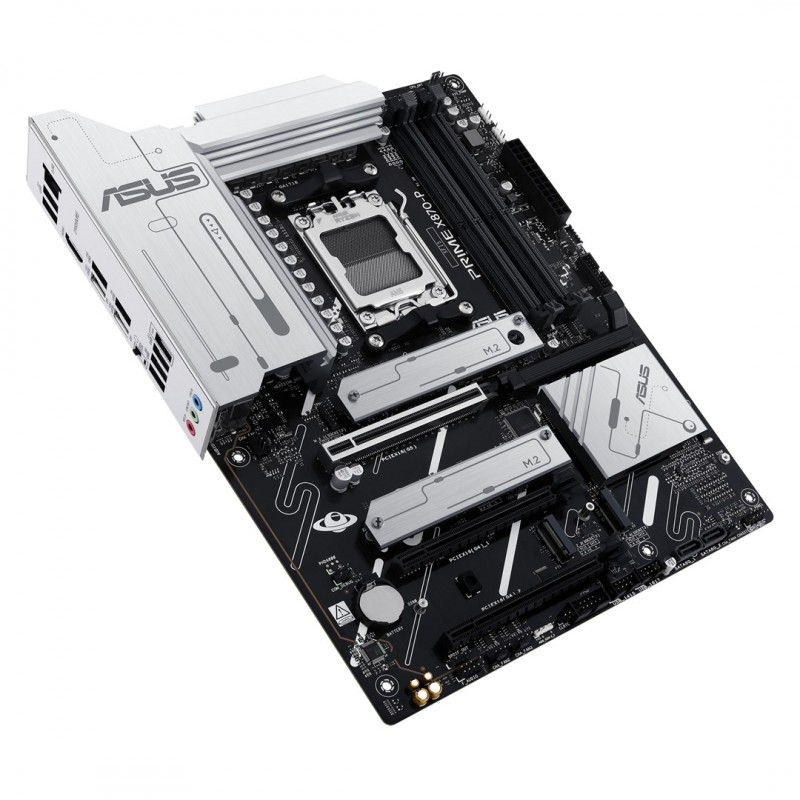

ASUS PRIME X870-P AMD X870 Socket AM5 ATX

ASUS

90MB1IT0-M0EAY0

New product

41 Items

Shipping 2025-11-14 days

259,00 € tax incl.

BIOS
BIOS typeUEFI AMI
Expansion slots
Number of M.2 (M) slots4
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Features
Audio output channels7.1 channels
Cooling typePassive
Motherboard chipsetAMD X870
Motherboard chipset familyAMD
Motherboard form factorATX
Power source typeATX
Product colourBlack
Windows operating systems supportedWindows 10
Windows operating systems supportedWindows 11
Graphics
On-board graphics cardNo
Parallel processing technology supportNot supported
Internal I/O
12V power connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Front panel audio connectorYes
Number of chassis fan connectors4
Number of COM connectors1
Number of SATA III connectors2
RGB LED pin headerYes
TPM connectorYes
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Memory
ECC сompatibilityECC & Non-ECC
Maximum internal memory192 GB
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory clock speed (max)8000 MHz
Supported memory typesDDR5-SDRAM
Unbuffered memoryYes
Network
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
Wi-FiNo
Other features
Back-to-BIOS buttonYes
Weight1.44 kg
Packaging content
Cables includedSATA
Packaging data
Package depth273 mm
Package height68 mm
Package weight1.5 kg
Package width353 mm
Processor
Compatible processor seriesAMD Ryzen 8000 Series
Compatible processor seriesAMD Ryzen 7000 Series
Compatible processor seriesAMD Ryzen 9000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5
Rear panel I/O ports
DisplayPort version1.4a
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Line-inYes
Microphone inYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB4 Gen 2x2 ports quantity2
Safety warning
WarningsAvoid contact with liquids to prevent electronic damage.
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
WarningsDispose of in accordance with local regulations for electronic waste.
Storage controllers
Number of HDDs supported2
Number of storage drives supported6
RAID levels10
RAID levels5
RAID levels1
RAID supportYes
Supported storage drive interfacesM.2, SATA III
Supported storage drive typesHDD & SSD
Weight & dimensions
Depth244 mm
Height48 mm
Width305 mm
