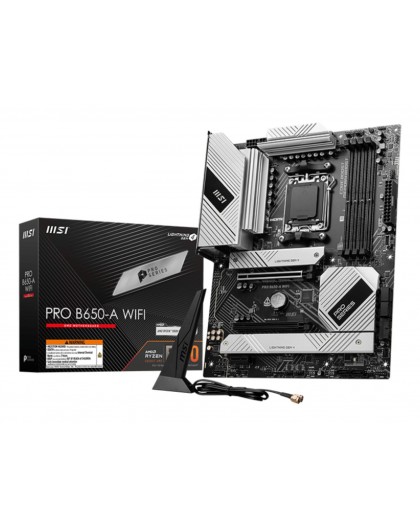

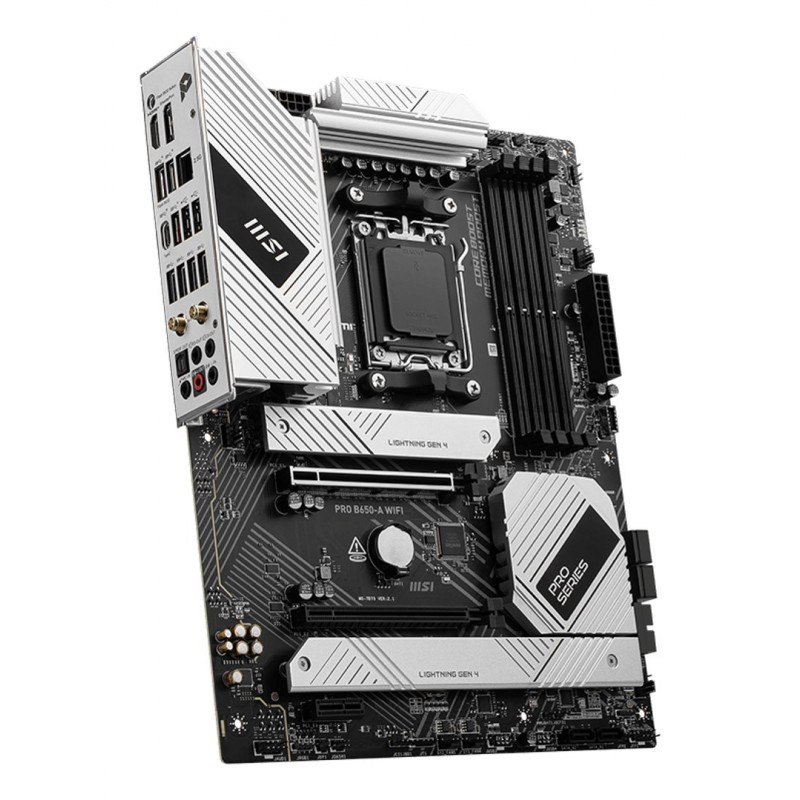

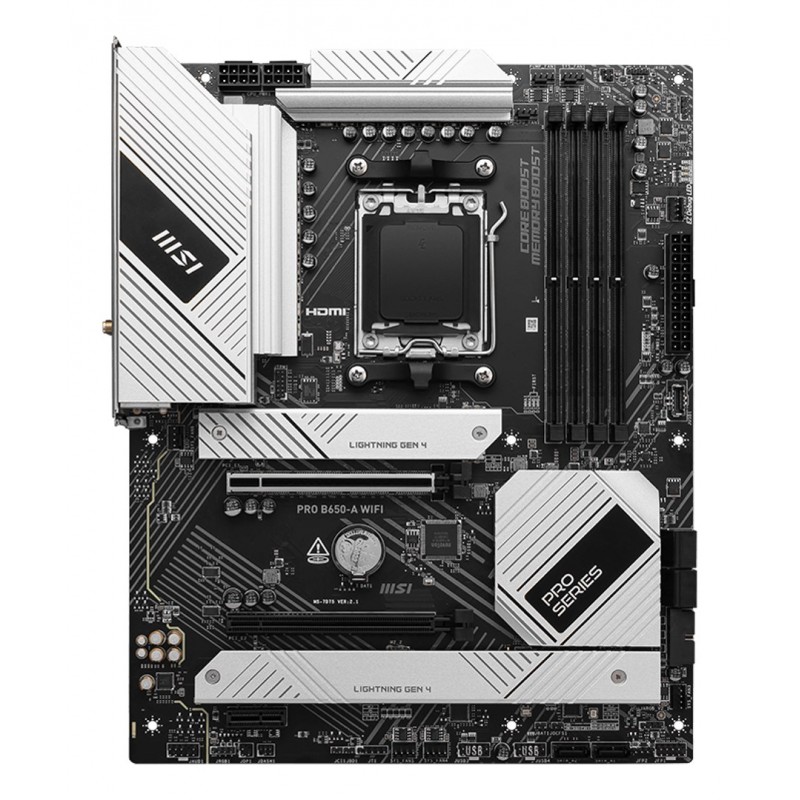

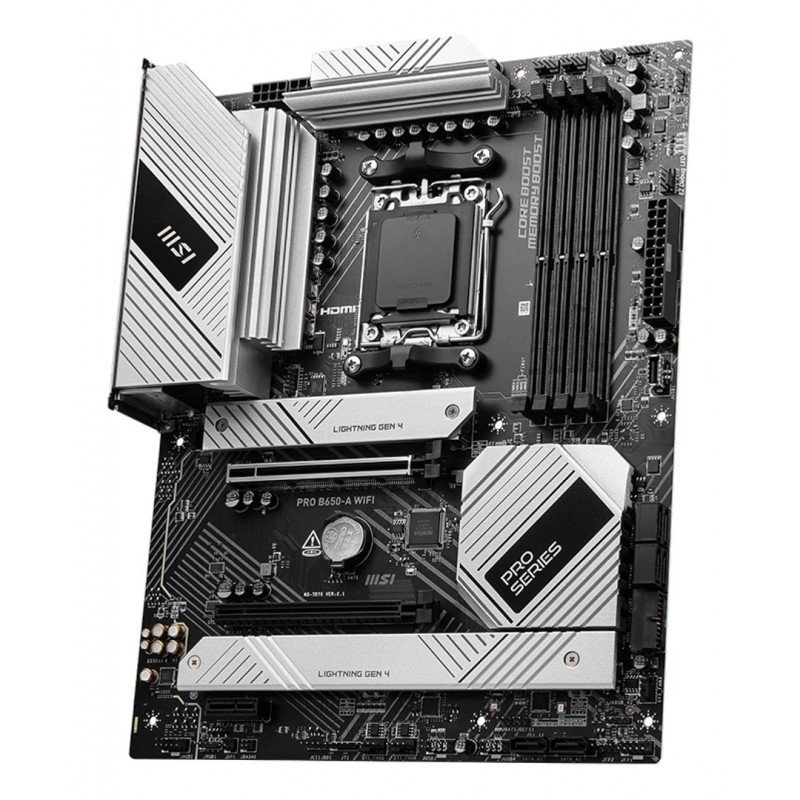

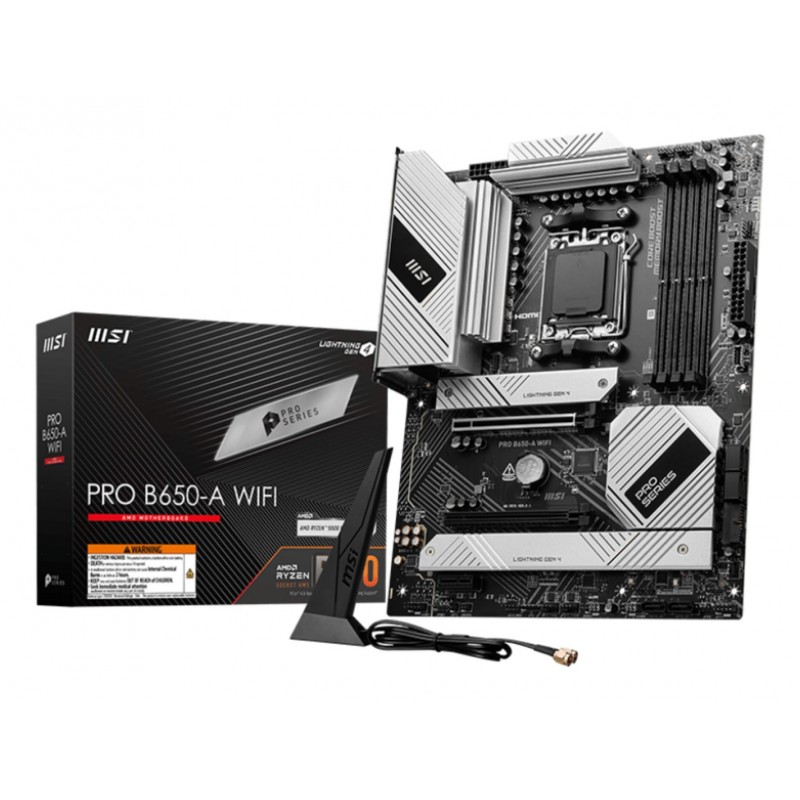

MSI PRO B650-A WIFI motherboard

MSI

PROB650-AWIFI

New product

16 Items

Shipping 2025-11-14 days

179,00 € tax incl.

Expansion slots
Number of M.2 (M) slots3
PCI Express x16 (Gen 3.x) slots2
Features
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Motherboard chipsetAMD B650
Motherboard chipset familyAMD
Motherboard form factorATX
PC health monitoringFan
Windows operating systems supportedWindows 11 x64
Internal I/O
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Front panel audio connectorYes
Front panel connectorYes
USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Memory
ECC сompatibilityNon-ECC
Maximum internal memory256 GB
Number of memory slots4
Supported memory clock speed (max)7600 MHz
Supported memory clock speeds4800
Supported memory clock speeds5200
Supported memory clock speeds6000
Supported memory clock speeds5800
Supported memory clock speeds5400
Supported memory clock speeds6600
Supported memory clock speeds5000
Supported memory clock speeds7000
Supported memory clock speeds6800
Supported memory clock speeds7400
Supported memory clock speeds7600
Supported memory clock speeds6200
Supported memory clock speeds5600
Supported memory clock speeds7200 MHz
Supported memory clock speeds6400
Supported memory typesDDR5-SDRAM
Network
BluetoothYes
Bluetooth version5.3
Ethernet interface type2.5 Gigabit Ethernet
Ethernet LANYes
LAN controllerRealtek RTL8125B
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-FiYes
Wi-Fi standards802.11 ax
Wi-Fi standards802.11g
Wi-Fi standards802.11a
Wi-Fi standards802.11b
Wi-Fi standards802.11 ac
Wi-Fi standards802.11n
Wi-Fi standardsWi-Fi 6E (802.11ax)
Processor
Compatible processor seriesAMD Ryzen 7000 Series
Compatible processor seriesAMD Ryzen 9000 Series
Compatible processor seriesAMD Ryzen 8000 Series
Processor manufacturerAMD
Processor socketSocket AM5
Supported processor socketsSocket AM5

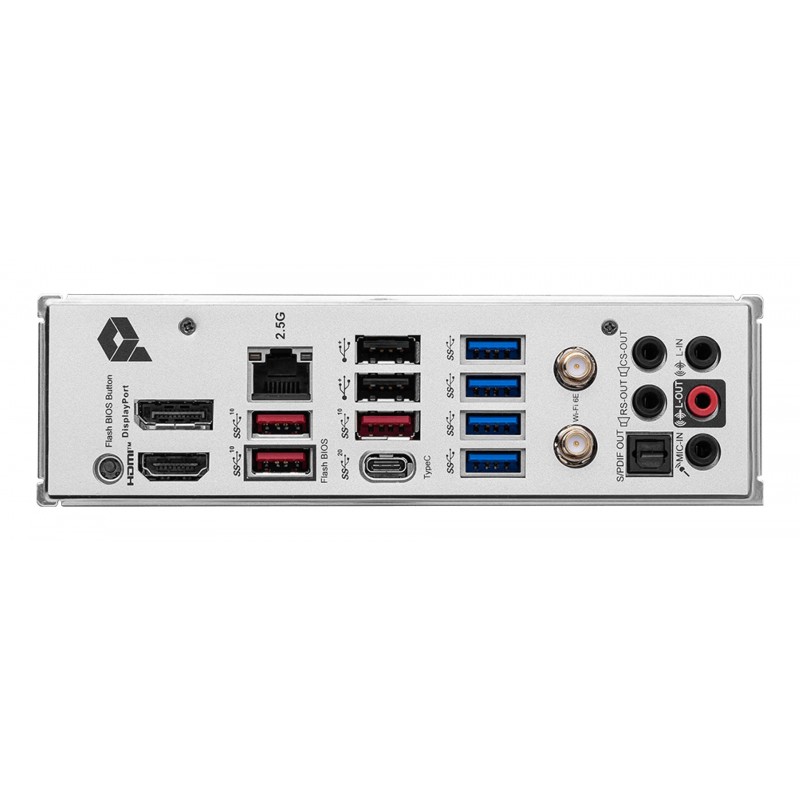

Rear panel I/O ports
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Headphone outputs1
Line-inYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2x2 Type-C ports quantity1
Safety warning
WarningsDispose of in accordance with local regulations for electronic waste.
WarningsDo not disassemble to avoid damage to internal components and loss of warranty.
WarningsAvoid contact with liquids to prevent electronic damage.
Storage controllers
RAID levels1
RAID levels10
Supported storage drive interfacesM.2, SATA
Weight & dimensions
Depth304.8 mm
Width243.8 mm
