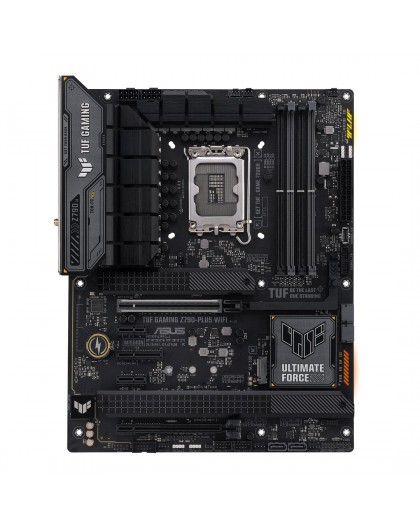

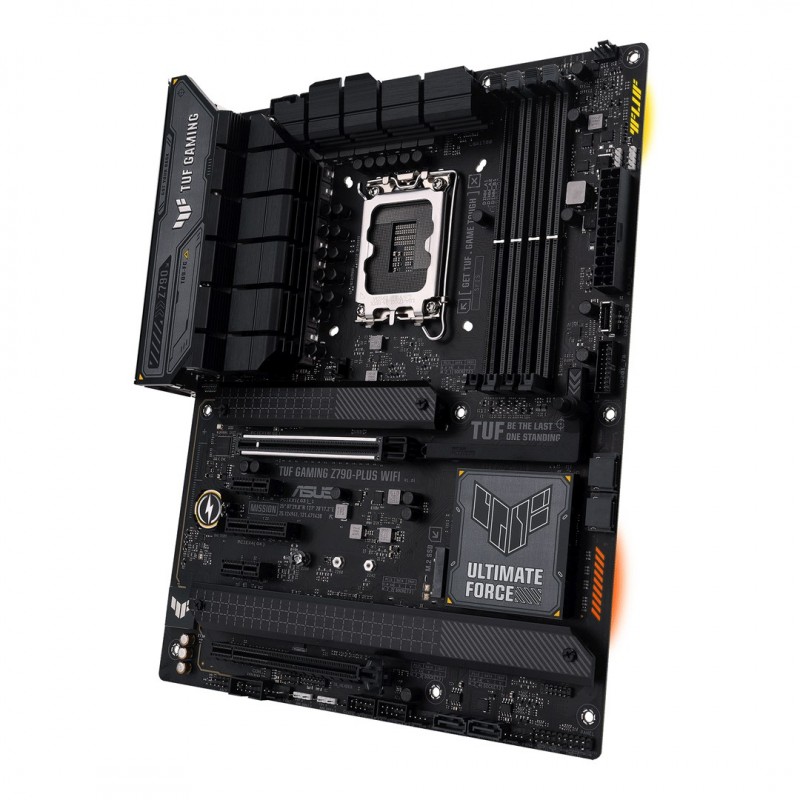

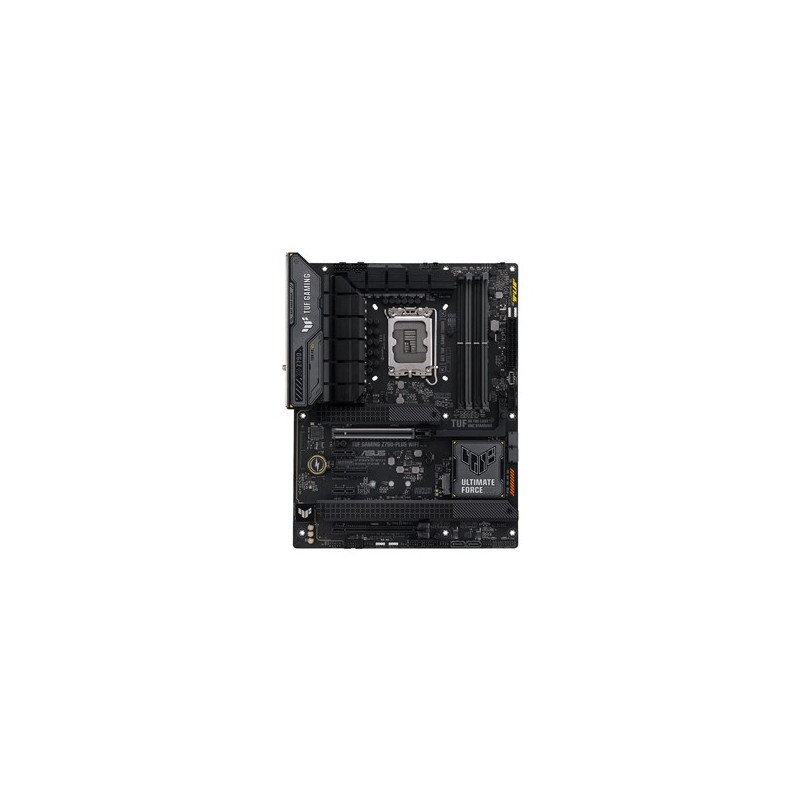

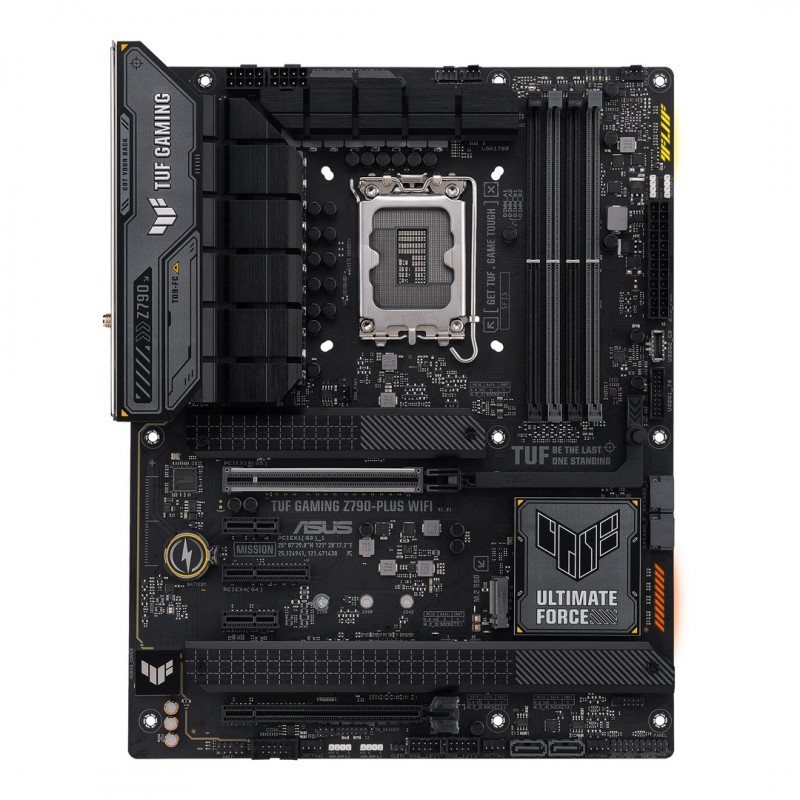

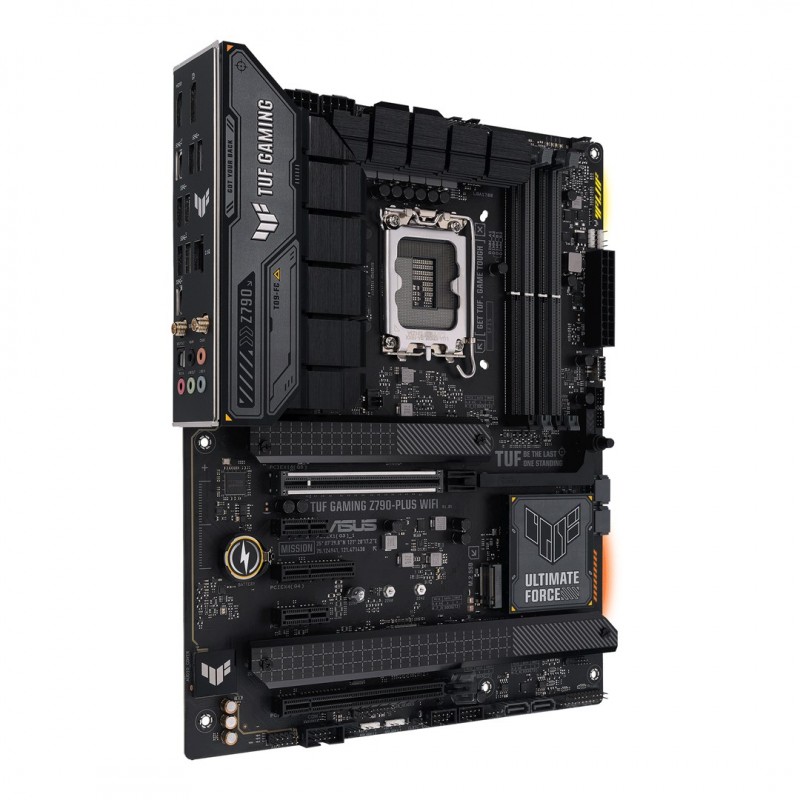

ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX
90MB1D80-M0EAY0
New product
20 Items
Shipping 2025-11-14 days
279,00 € tax incl.
| BIOS | |
| BIOS memory size | 192 Mbit |
| BIOS type | UEFI AMI |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Features | |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 10 |
| Windows operating systems supported | Windows 11 |
| Graphics | |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Thunderbolt headers | 1 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Memory | |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 6600 |
| Supported memory clock speeds | 5200 |
| Supported memory clock speeds | 6200 |
| Supported memory clock speeds | 5800 |
| Supported memory clock speeds | 5400 |
| Supported memory clock speeds | 5000 |
| Supported memory clock speeds | 6000 |
| Supported memory clock speeds | 4800 |
| Supported memory clock speeds | 6400 |
| Supported memory clock speeds | 5600 |
| Supported memory clock speeds | 6800 |
| Supported memory clock speeds | 7000 |
| Supported memory clock speeds | 7200 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | 802.11b |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Packaging content | |
| Cables included | SATA |
| User guide | Yes |
| Processor | |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Compatible processor series | Intel® Pentium® Gold |
| Compatible processor series | Intel® Core™ i5 |
| Compatible processor series | Intel® Celeron® |
| Compatible processor series | Intel® Core™ i3 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Storage controllers | |
| RAID levels | 10 |
| RAID levels | 1 |
| RAID levels | 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Weight & dimensions | |
| Depth | 244 mm |
| Width | 305 mm |
