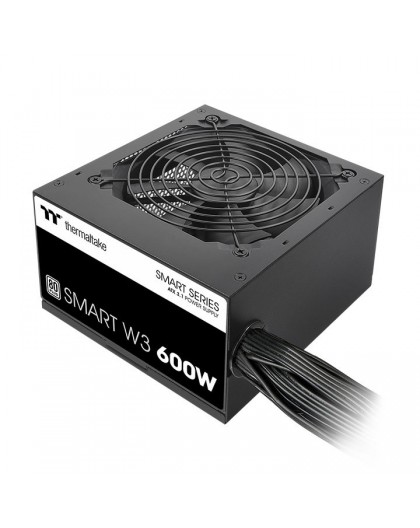

Home / ///Thermaltake Smart W3 Power Supply Unit 600 W 24-pin ATX ATX Black
New Thermaltake Smart W3 Power Supply Unit 600 W 24-pin ATX ATX Black

Thermaltake Smart W3 Power Supply Unit 600 W 24-pin ATX ATX Black

Thermaltake

PS-SPW-0600NNFAWE-1

New product

5 Items

Shipping 2025-11-24 days

79,00 € tax incl.

Certificates
CertificationCB/FCC/cTUVus/ICES
Design
Fan diameter12 cm
Number of fans1 fan(s)
On/off switchYes
Product colourBlack
Operational conditions
Operating relative humidity (H-H)20 - 85%
Operating temperature (T-T)5 - 40 °C
Storage relative humidity (H-H)10 - 95%
Storage temperature (T-T)-40 - 55 °C
Packaging data
Package typeBox
Performance
80 PLUS certification80 PLUS
ATX version3.1
Bearing technologyFDB
Mean time between failures (MTBF)100000 h
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
ATX Power connector (24-pin)Yes
Cabling typeNon-Modular
EPS power connector (4+4 pin)Yes
Motherboard power cable length60 cm
Motherboard power connector24-pin ATX
Number of SATA power connectors4
PCI Express power cable length65 cm
PCI Express power connectors (6+2 pin)2
Peripheral (Molex) power cable length950 mm
Peripheral (Molex) power cable length650
Peripheral (Molex) power cable length800
Peripheral (Molex) power cable length500 mm
Peripheral (Molex) power connectors (4-pin)4
SATA power cable length500 mm
SATA power cable length650
SATA power cable length950 mm
SATA power cable length800
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Combined power (-12V)3.6 W
Combined power (+12V)600 W
Combined power (+3.3V)105 W
Combined power (+5V)105 W
Combined power (+5Vsb)15 W
Hold time17 ms
Input current12 - 5 A
Max output current (-12V)0.3 A
Max output current (+12V)50 A
Max output current (+3.3V)16 A
Max output current (+5V)16 A
Max output current (+5Vsb)3 A
Power Factor Correction (PFC) typeActive
Power protection featuresOverheating
Power protection featuresShort circuit
Power protection featuresOver voltage
Power protection featuresOver power
Power protection featuresUnder voltage
Power protection featuresOver current
Total power600 W
Weight & dimensions
Depth140 mm
Height86 mm
Width150 mm
