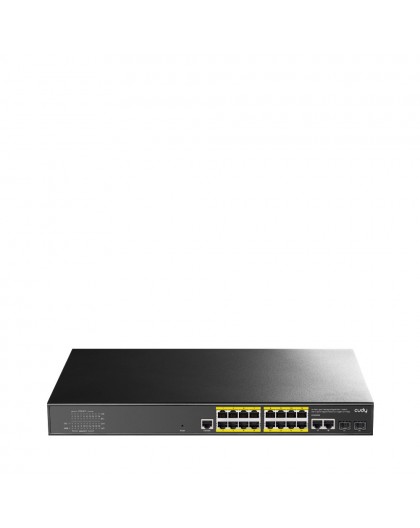

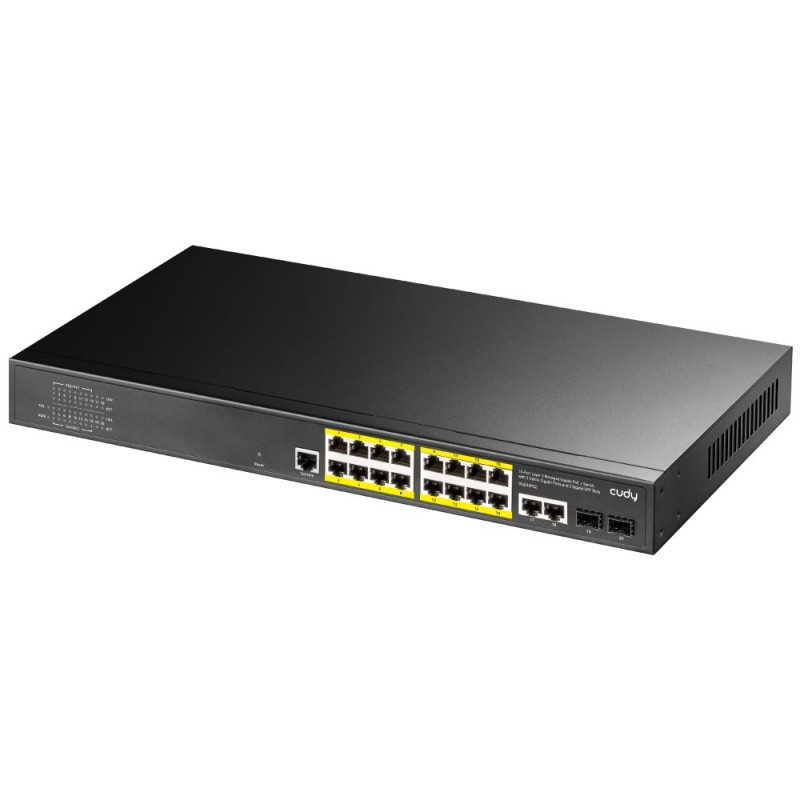

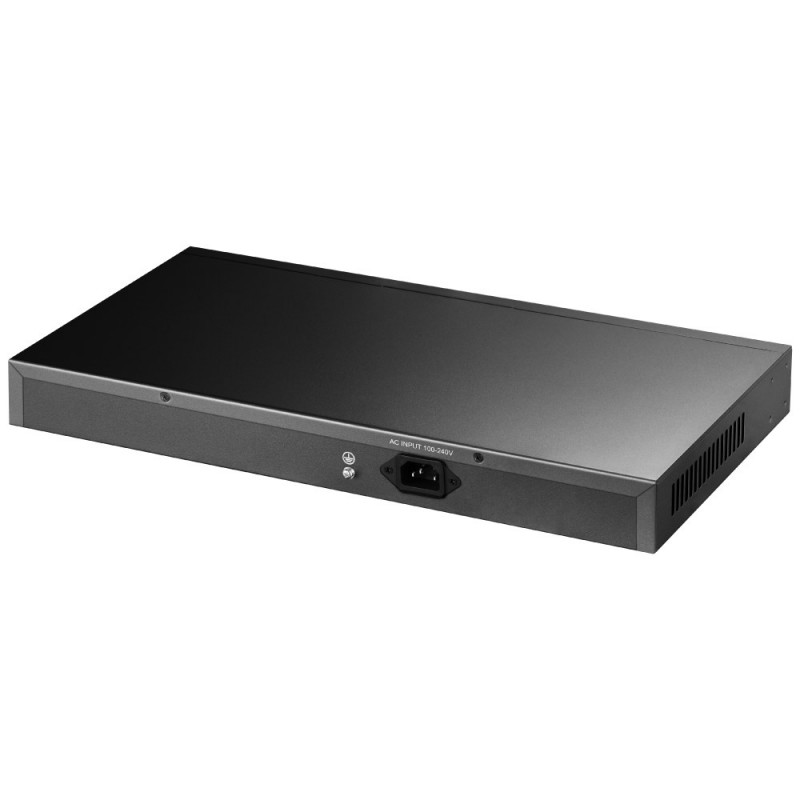

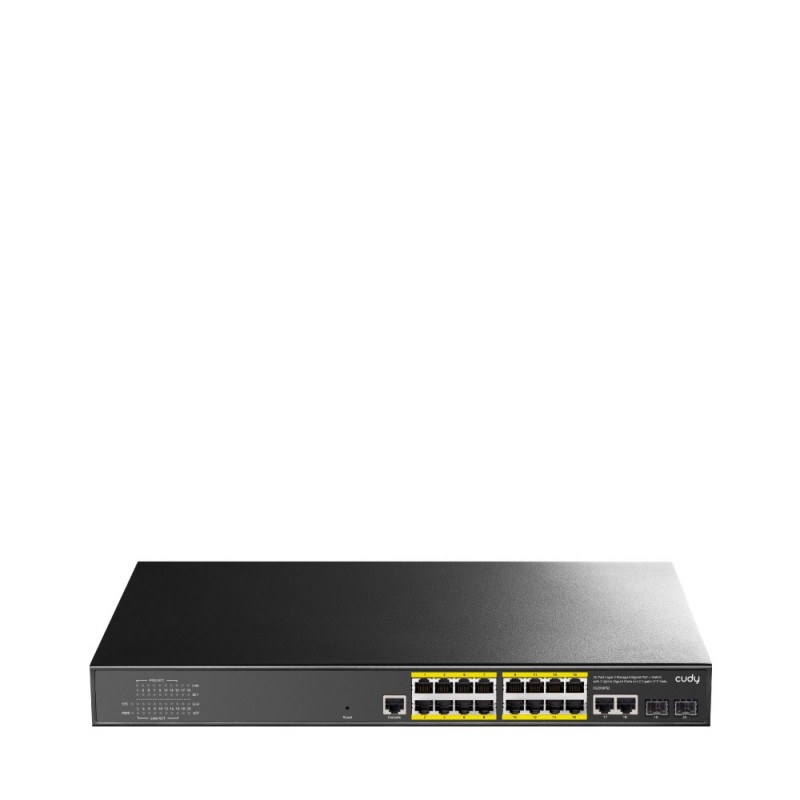

Cudy GS2018PS2 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
GS2018PS2-200W
New product
4 Items
Shipping 2025-11-18 days
279,00 € tax incl.
| Data transmission | |
| Forwarding rate | 19.76 Mpps |
| Jumbo frames | 9600 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Packet buffer memory | 4 MB |
| Switching capacity | 40 Gbit/s |
| Design | |
| Form factor | 1U |
| LED indicators | System |
| LED indicators | Link |
| LED indicators | Power |
| LED indicators | Activity |
| LED indicators | PoE |
| Product colour | Black |
| Rack mounting | Yes |
| Reset button | Yes |
| Management features | |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast features | |
| Multicast features | Multicast traffic suppression |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Multicast support | Yes |
| Network | |
| 10G support | No |
| Cable types supported | Cat6 |
| Cable types supported | Cat4 |
| Cable types supported | Cat5 |
| Cable types supported | Cat5e |
| Cable types supported | Cat3 |
| Copper ethernet cabling technology | 100BASE-TX |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 1000BASE-T |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Fast leave | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3i |
| Number of VLANs | 4096 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Voice VLAN |
| Virtual LAN features | MAC address-based VLAN |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
| Operational conditions | |
| Non-operating altitude | 0 - 3048 m |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Performance | |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 2 |
| Uplink ports quantity | 2 |
| Power | |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Surge protection | Yes |
| Surge protection voltage | 15 kV |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 200 W |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | HTTP, HTTPS, Telnet, SSH V1/V2, SNMP V1/V2/V3, RMON V2 |
| Security | |
| Authentication type | IEEE 802.1x, RADIUS |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| MAC address entries | Static MAC address entries |
| MAC address entries | Dynamic MAC address entries |
| Packet filtering | Y |
| Password protection | Yes |
| Queue scheduling algorithms | PQ + WRR |
| Security algorithms | HTTPS |
| Security algorithms | SSH-2 |
| Security algorithms | SSH |
