Home / ///LC-Power LC6550 V2.3 power supply unit 550 W 20+4 pin ATX ATX Black
New LC-Power LC6550 V2.3 power supply unit 550 W 20+4 pin ATX ATX Black

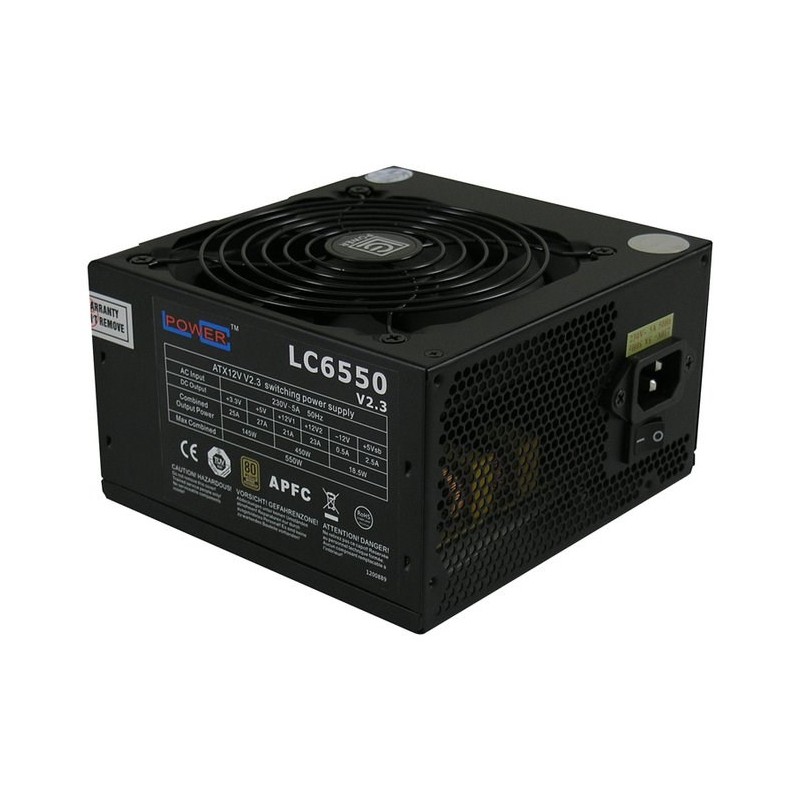

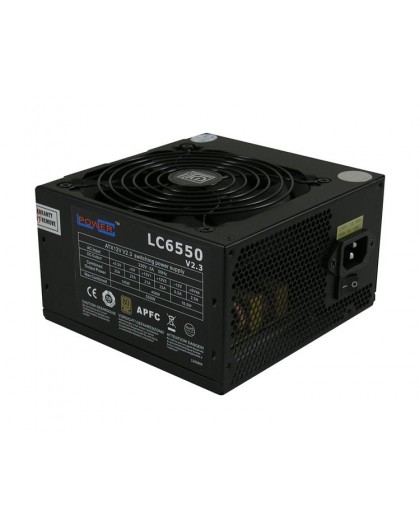

LC-Power LC6550 V2.3 power supply unit 550 W 20+4 pin ATX ATX Black

LC-POWER

LC6550V2.380+BRONZE

New product

19 Items

Shipping 2025-11-25 days

79,00 € tax incl.

Design
Fan diameter12 cm
Number of fans1 fan(s)
Product colourBlack
Logistics data
Harmonized System (HS) code84733020
Performance
80 PLUS certification80 PLUS Bronze
ATX version2.3
Power supply unit (PSU) form factorATX
PurposePC
Ports & interfaces
Cabling typeNon-Modular
CPU power cable length45 cm
CPU power connector (4+4 pin)Yes
Floppy disk drive connectorNo
Motherboard power cable length45 cm
Motherboard power connector20+4 pin ATX
Number of PATA power connectors4
Number of SATA power connectors4
PCI Express connectorYes
PCI Express power connectors (6+2 pin)1
Power
AC input frequency50 Hz
AC input voltage230 V
Combined power (-12V)18.5 W
Combined power (+12V)450 W
Combined power (+3.3V)145 W
Combined power (+5V)145 W
Combined power (+5Vsb)18.5 W
Efficiency88%
Input current5 A
Max output current (-12V)0.5 A
Max output current (+12V1)21 A
Max output current (+12V2)23 A
Max output current (+3.3V)25 A
Max output current (+5V)27 A
Max output current (+5Vsb)2.5 A
Power Factor Correction (PFC) typeActive
Power protection featuresShort circuit
Power protection featuresOver power
Power protection featuresUnder voltage
Power protection featuresOver current
Power protection featuresOver voltage
Total power550 W
Weight & dimensions
Depth140 mm
Height86 mm
Weight1.75 kg
Width150 mm
