Home / ///APC Smart-UPS On-Line SRT2200RMXLI - 2200VA, 8x C13 & 2x C19, rack mount
New APC Smart-UPS On-Line SRT2200RMXLI - 2200VA, 8x C13 & 2x C19, rack mount

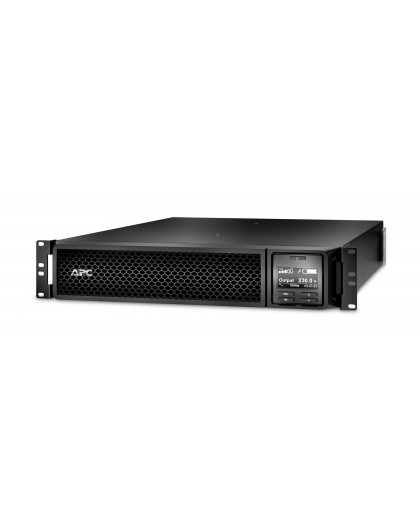

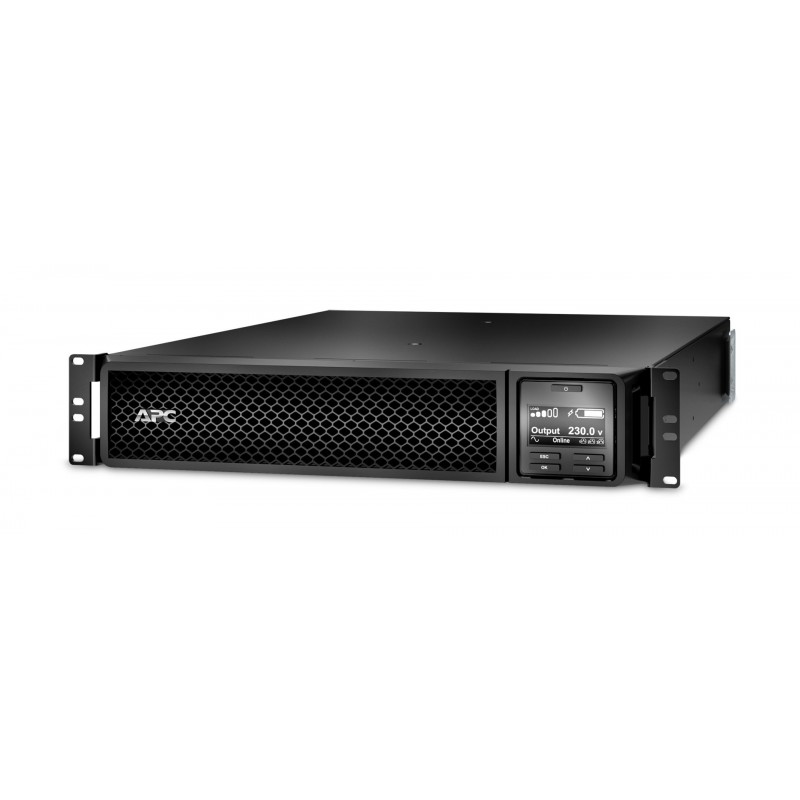

APC Smart-UPS On-Line SRT2200RMXLI - 2200VA, 8x C13 & 2x C19, rack mount

APC

SRT2200RMXLI

New product

19 Items

Shipping 2025-11-25 days

2 469,00 € tax incl.

Battery
Automatic battery testYes
Battery capacity367 VAh
Battery life (max)5 year(s)
Battery recharge time3 h
Battery technologySealed Lead Acid (VRLA)
Cold startYes
Hot-swap batteryYes
Number of batteries supported1

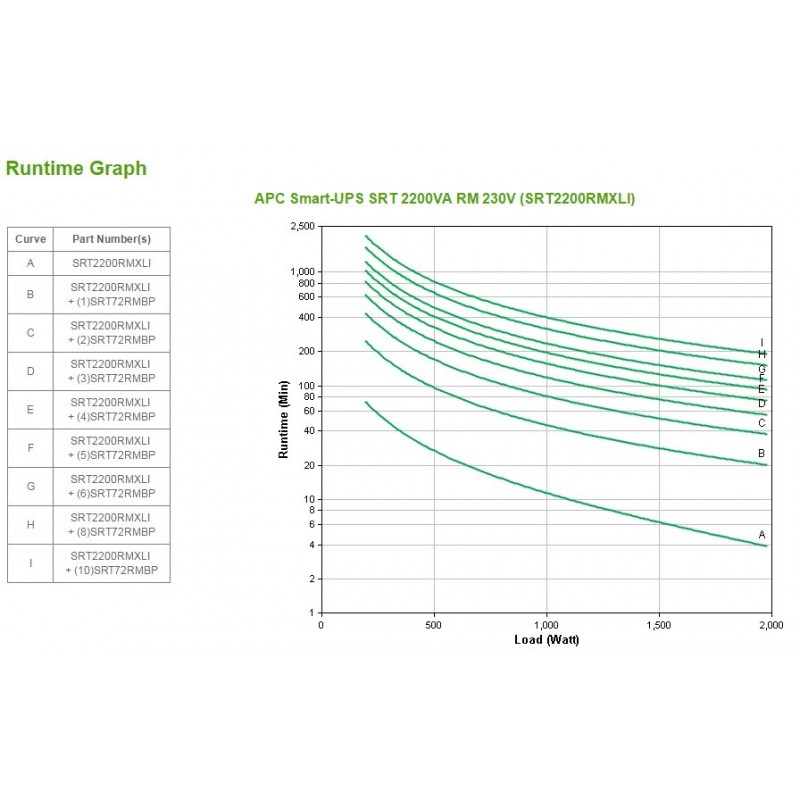

Typical backup time at full load3.9 min
Typical backup time at half load11.6 min
Certificates
CertificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Compliance certificatesRoHS
Design
Cable length2.44 m
Display typeLCD
Form factorRackmount/Tower
International Protection (IP) codeIP20
LED indicatorsYes
Product colourBlack
Rack capacity2U
Features
Audible alarm(s)Yes
Auto-restartYes
Crest factor3:1
Efficiency92.2%
Emergency Power Off (EPO)Yes
Input frequency40/70 Hz
Input operation voltage (max)275 V
Input operation voltage (min)100 V
Noise level55 dB
Output frequency regulation50/60 Hz
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power1980 W
Output power capacity2.2 kVA
Surge energy rating340 J
Surge protectionYes
UPS topologyDouble-conversion (Online)
WaveformSine
Web-based managementYes
Logistics data
Harmonized System (HS) code85078000
Products per pallet12 pc(s)
Total carbon footprint (kg of CO2e)3656.4
Operational conditions
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)0 - 95%
Storage temperature (T-T)-20 - 50 °C
Other features
Nominal input voltage230 V
Nominal output voltage230 V
Packaging content
Cables includedUSB cable
Quick installation guideYes
Rack mount kitYes
Packaging data
BracketYes
Package depth810 mm
Package height246 mm
Package weight34 kg
Package width599 mm
Software CDYes

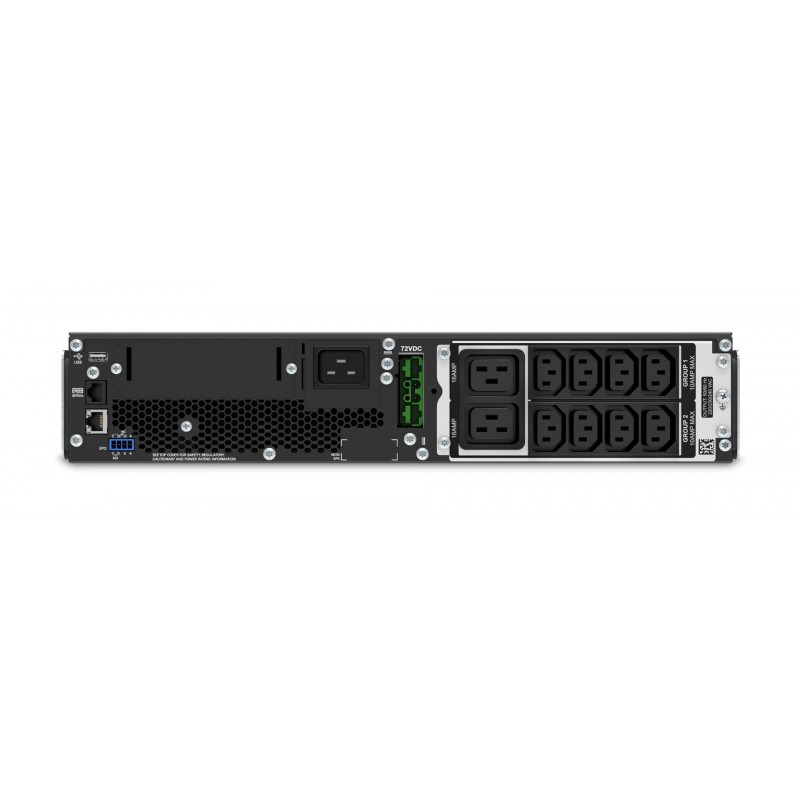

Ports & interfaces
AC outlet typesC13 coupler
AC outlet typesC19 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
Power plugC20 coupler
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes
USB portYes
Sustainability
Sustainability certificatesGreen Premium
Sustainability certificatesENERGY STAR
Weight & dimensions
Depth584 mm
Height85 mm
Weight25 kg
Width432 mm
